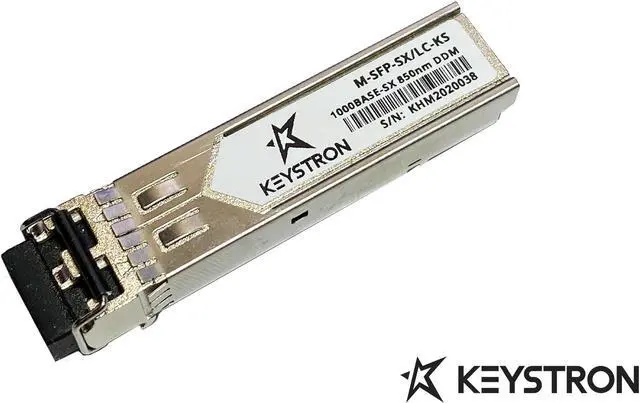

HIRSCHMANN Compatible 943 014-001 M-SFP-SX/LC 1000BASE-SX 850nm 550m MMF
- Part No.: 943014001, 943-014-001, M-SFP-SX/LC
- Network Ports:SFP
- Fiber Type:MMF
- Data Rate:1.25Gb/s
- Max Distance:550m
- Wavelength:850 nm
- Connectors:Duplex LC
- Digital Diagnostic Monitoring:Yes
- Compatible Brand:For HIRSCHMANN
+
+
Overview
Specs
Reviews
M-SFP-SX/LC
SFP Fiberoptic Gigabit Ethernet Transceiver
PRODUCT FEATURES
1000 Mbps bi-directional data links
Hot-pluggable SFP footprint
Built-in digital diagnostic functions
850nm Oxide VCSEL laser transmitter
Duplex LC connector
Very low jitter
Up to 550m on 50/125µm MMF, 275m on 62.5/125µm MMF
Metal enclosure, for lower EMI
Single 3.3V power supply
Low power dissipation <750mW
Extended operating temperature range: -20°C to 90°C
Compatible With
MICE media modules
MM4-4TX/SFP
MM4-2TX/SFP
OpenRail RS30-Switches
MACH 4000
SmartLION
GigaLION
Dual Rate 1.063/2.125 Gb/s Fibre Channel
SFP Fiberoptic Gigabit Ethernet Transceiver
PRODUCT FEATURES
Compatible With
