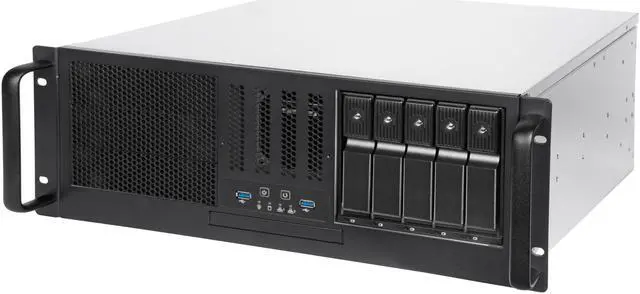

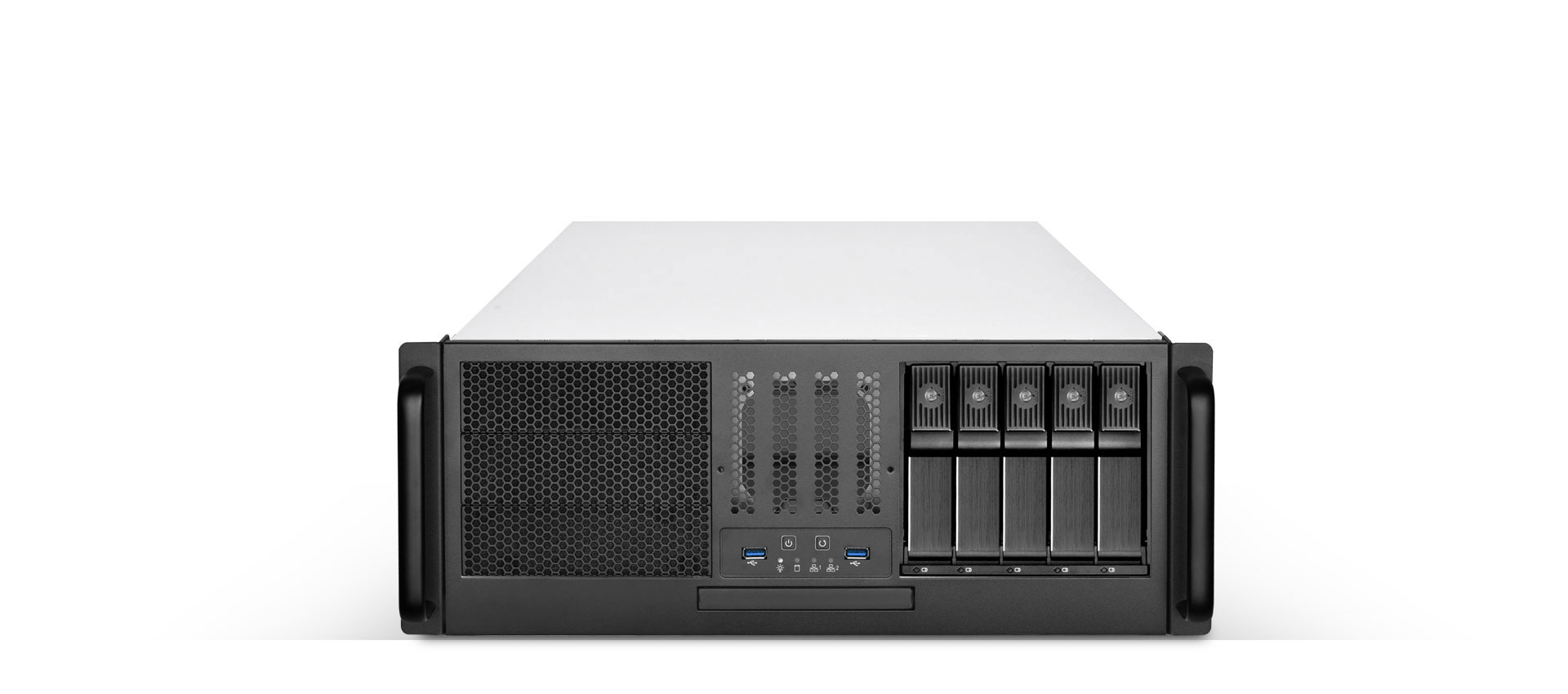

Silverstone 4U form factor 5 x 3.5" Hot-swappable and 3 x 5.25" server chassis

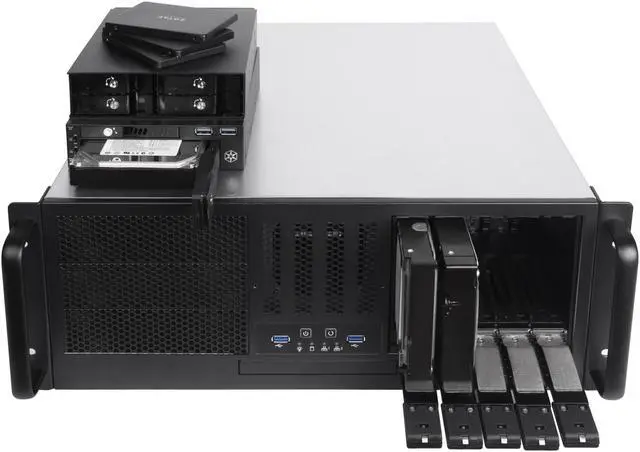

- Supports up to five 12 Gbit/s 3.5" SAS / SATA drives with tray-free & screw-less design
- Drive tray features anti-theft lock design to keep confidential information secured
- Supports hot-swap function
- Supports up to SSI-CEB motherboard
- Supports 7 standard size PCI / PCIe expansion slots

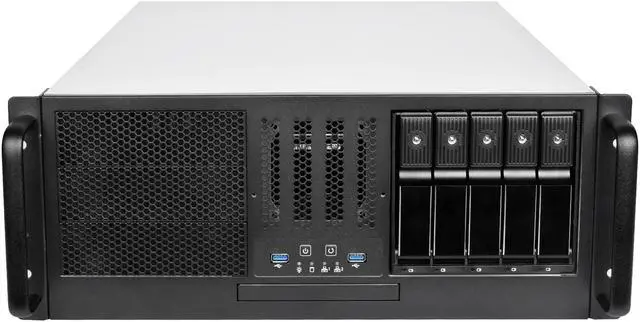

- Three 5.25" drive bays for a more flexible installation of 5.25" devices
- Front I/O with 5Gbps USB 3.1 Gen1 ports, backward compatible with USB 2.0 / 1.1

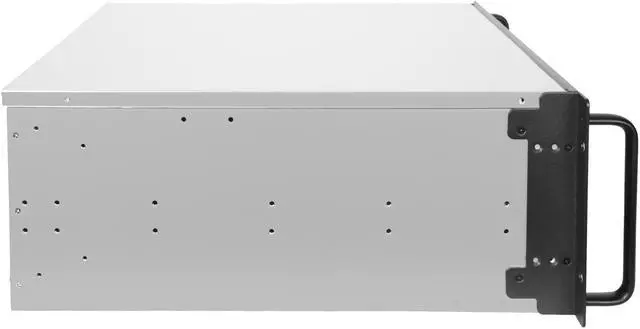

- Pre-drilled mounting holes for easy sliding rails installation.
| Model No. | SST-RM41-H08 |
|---|---|
| Motherboard | SSI-CEB (12" x 10.5"), ATX (12" x 9.6"), Micro ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7") |
| Main metal thickness | 1.2mm |
| Drive Bay: External | 5.25" x 3, 3.5" x 5 (Hot-swappable) |
| Limitation of CPU cooler | 148mm |

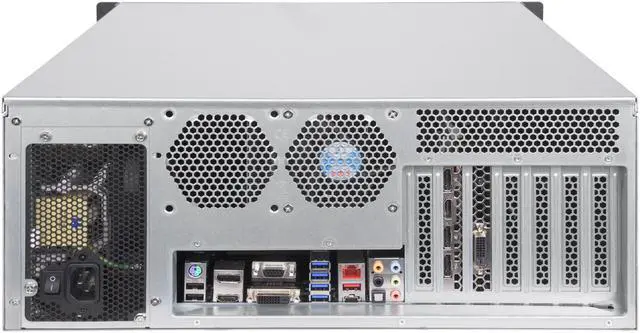

| Expansion Slot | 7 standard PCI / PCIe expansion slots |
| Front buttons | Power On / Off, restart |

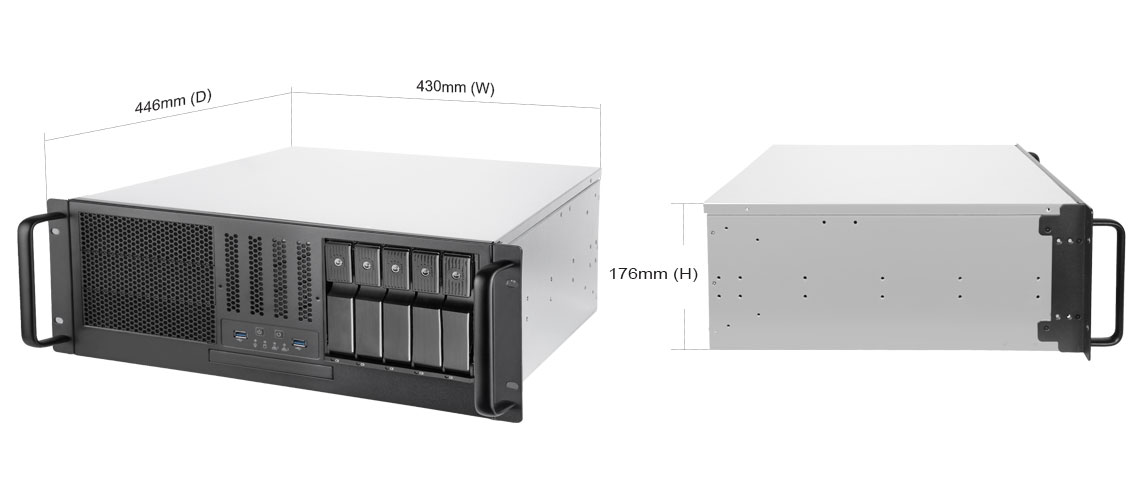

| Dimension | 430mm (W) x 176mm (H) x 446mm (D) |
| Chassis form factor | 4U |
|---|---|
| Material | SGCC |
| Power Supply | PS2 / ATX / Mini Redundant (supports up to 200mm) |

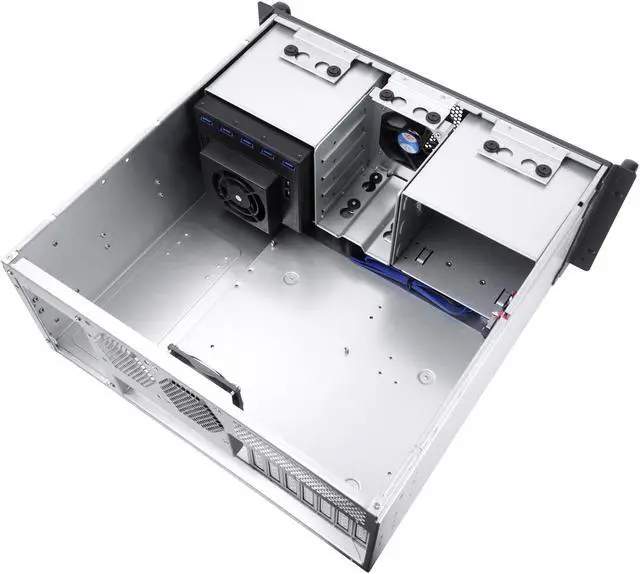

| Drive Bay: Internal | 3.5" x 4, 2.5" x 2 (Support up to 15mm), 2.5" x 1 (Support up to 15mm) or slim optical drive |
| Expansion card | Length w/ 5.25" drive cage: 278mm, Length w/o 5.25" drive cage: 426mm |
| Front I/O Port | USB 3.1 Gen1 Type-A x 2 |
| Indicators | Power status x 1, system reset x 1, network status x 2 |
| Net Weight | 10.7 kg |
* Your system must have a SAS controller to use SAS hard drives
** For maximum supported capacity and drive array, please consult with your SAS or SATA drive manufacturer
*** RM41-H08 has 2 rows of slide rail locking holes. If you wish to fix it in the positive U position of the rack, please lock the rails in the sliding rail locking holes of the lower row of RM41-H08
