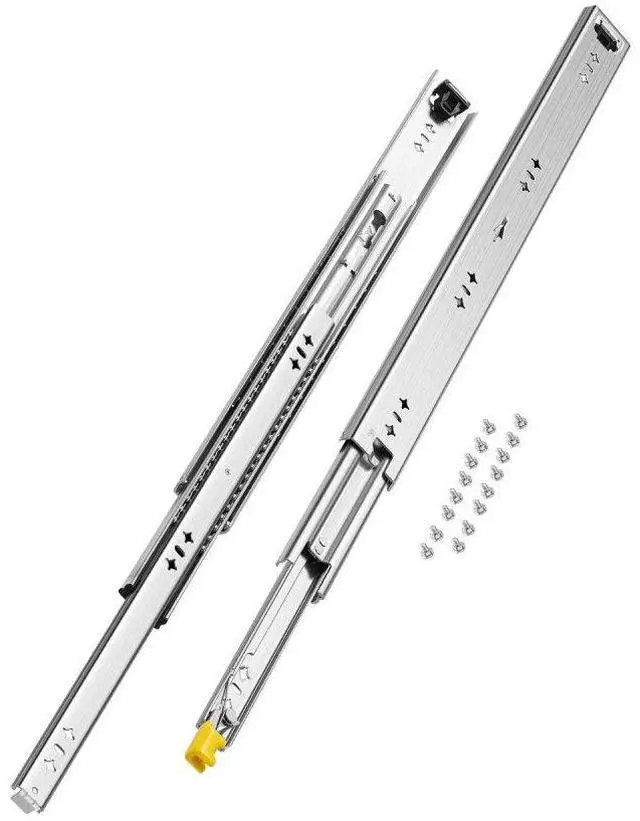

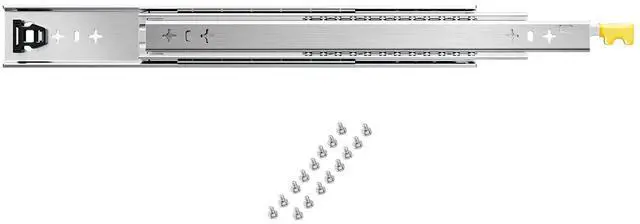

Set of 2 Drawer Rails, Full Extension, Sizes 16 18 20 24 30 35 37.4 59 24 32 36 40 48 60 in, 250 lbs Weight Limit, Lockable Drawer Slides, Ball Bearing, Side Mounting Drawer Slide Rail

Be the first to review this product...

250lbs Heavy-Duty: Crafted from high hardness steel measuring 0.77 in/19.5 mm thick, these drawer slides boast an impressive weight capacity of up to 250 lbs. The galvanized finish ensures long-lasting resistance against rust and wear, making them suitable for various applications such as shelving, cabinets, industrial drawers, RVs, trucks, and vending machines.

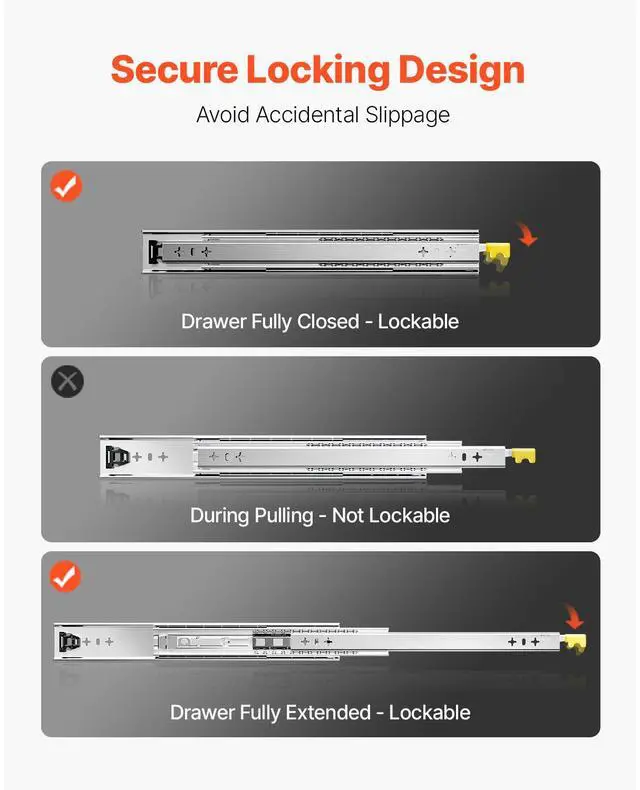

Double Lock Design: Our full extension dresser drawer slides feature a dual locking mechanism that provides enhanced security. With a simple press, the slides lock firmly, preventing your items from slipping off even on rough roads.

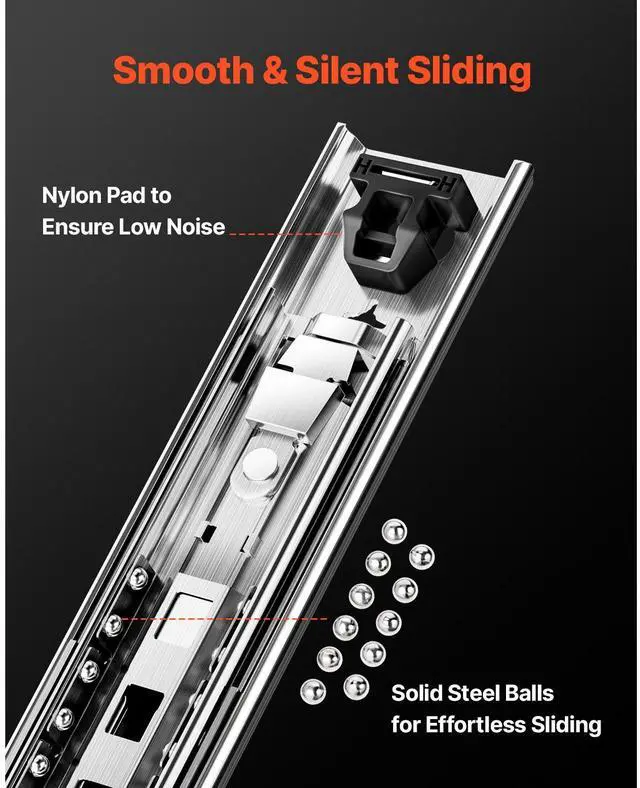

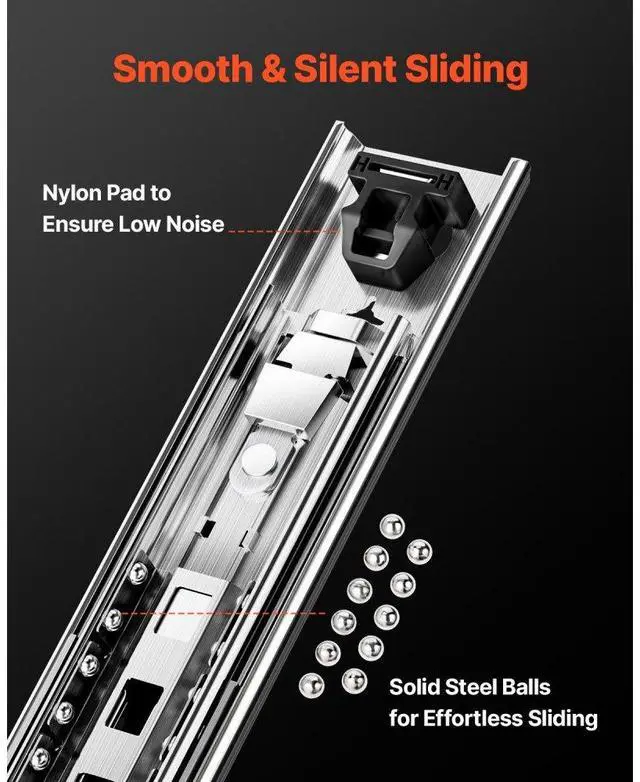

Smooth & Silent Operation: Designed with a double-lock system, these slides offer superior stability and security compared to slides with no lock or only one lock. The double-row ball bearing ensures smooth and effortless sliding when opening and closing drawers. The nylon cushioning on the center slides minimizes noise and eliminates bouncing

Overview

Specs

Reviews

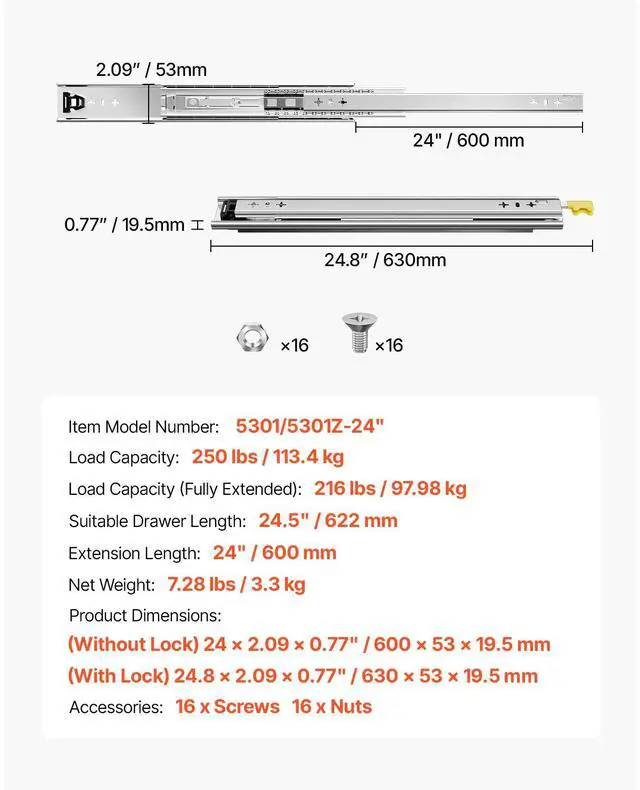

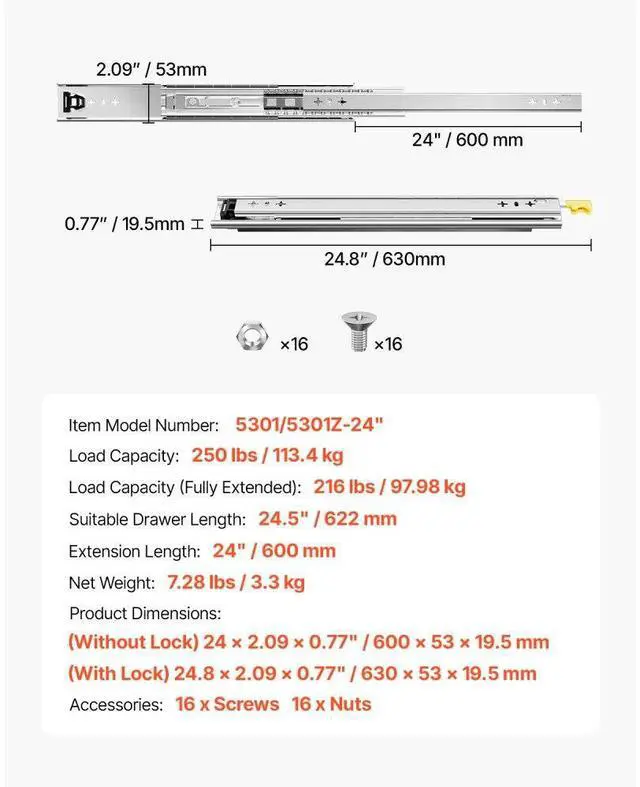

Specifications

Item Model Number: 5301/5301Z-24"
Load Capacity: 250 lbs / 113.4 kg
Load Capacity (Fully Extended): 216 lbs / 97.98 kg
Suitable Drawer Length: 24.5" / 622 mm
Extension Length: 24" / 600 mm
Net Weight: 7.28 lbs / 3.3 kg
Product Dimensions: 24 x 2.09 x 0.77" / 600 x 53 x 19.5 mm (Without Lock), 24.8 x 2.09 x 0.77" / 630 x 53 x 19.5 mm (With Lock)

Package Content
16 x Screws
16 x Nuts
