Set of 2 Drawer Rails, Sizes from 16 to 60 inches, 250 lbs Weight Limit, Locking Mechanism, Ball Bearing Side Mount Drawer Slide Rail
- 250lbs Heavy-Duty: Constructed from high hardness steel, these drawer slides have a weight capacity of up to 250 lbs. The galvanized finish ensures long-lasting resistance to rust and wear. Suitable for various applications such as shelving, cabinets, industrial drawers, RVs, trucks, and vending machines.

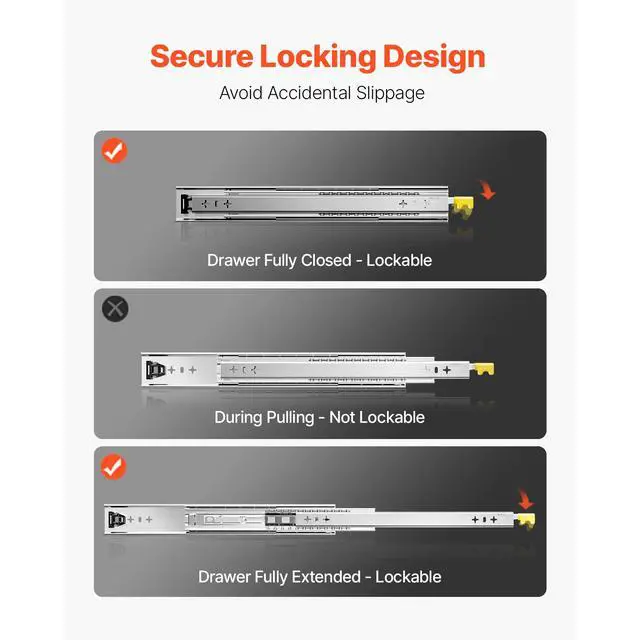

- Double Lock Design: Equipped with a dual locking mechanism, these full extension dresser drawer slides provide secure and reliable locking. Your items will stay in place even during bumpy rides.

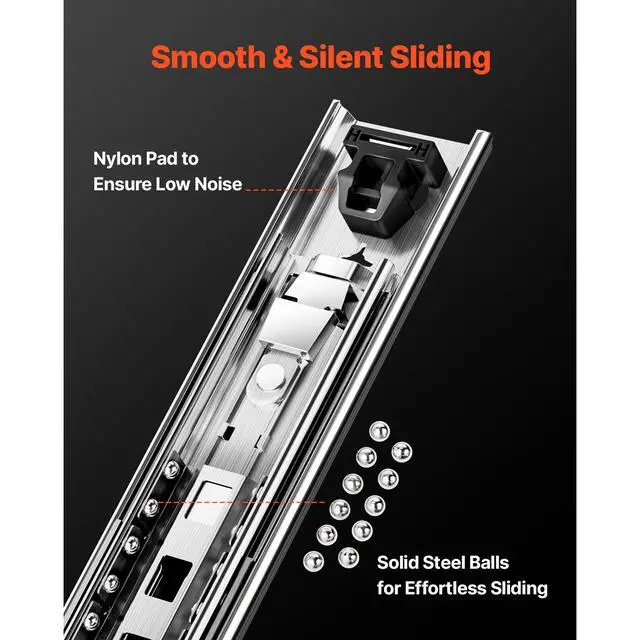

- Smooth & Quiet Operation: Featuring a double-lock design, these slides offer enhanced security and stability. The double-row ball bearings ensure smooth and effortless sliding when opening and closing drawers. The nylon cushioning on the center slides reduces noise and prevents bouncing.
- 3-Fold Drawer Slides: This package includes 1 pair of drawer slides with a length of 20.87 inches/530 mm, width of 2.09 inches/53 mm, and thickness of 0.77 inches/19.5 mm
+
+
Overview
Specs
Reviews
Specifications
Item Model Number: 5301/5301Z-20"
Load Capacity: 250 lbs / 113.4 kg
Load Capacity (Fully Extended): 233 lbs / 105.69 kg
Suitable Drawer Length: 20.5" / 520 mm
Extension Length: 20" / 250 mm
Net Weight: 5.95 lbs / 2.7 kg
Product Dimensions: 20 x 2.09 x 0.77" / 250 x 53 x 19.5 mm (Without Lock), 20.87 x 2.09 x 0.77" / 530 x 53 x 19.5 mm (With Lock)

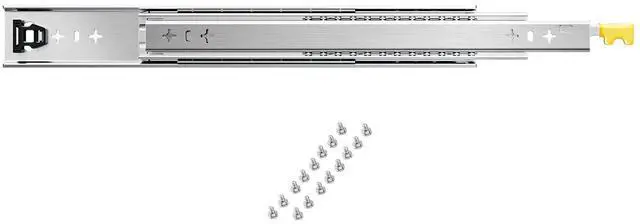

Package Content
16 x Screws
16 x Nuts
