Wire Tracker, Multifunctional RJ11 RJ45 Cable Tester Line Finder with NCV Probe for Wire Tracer Toner Ethernet LAN Network Cable Collation, Telephone Line Tester &Continuity Checking, CT03

Tacklife Multifunctional Wire Tracker -- CT03

This instrument is a multi-functional handheld cable test tool. Applicable cable types are increased, functions are more, and the scope of application is wider.

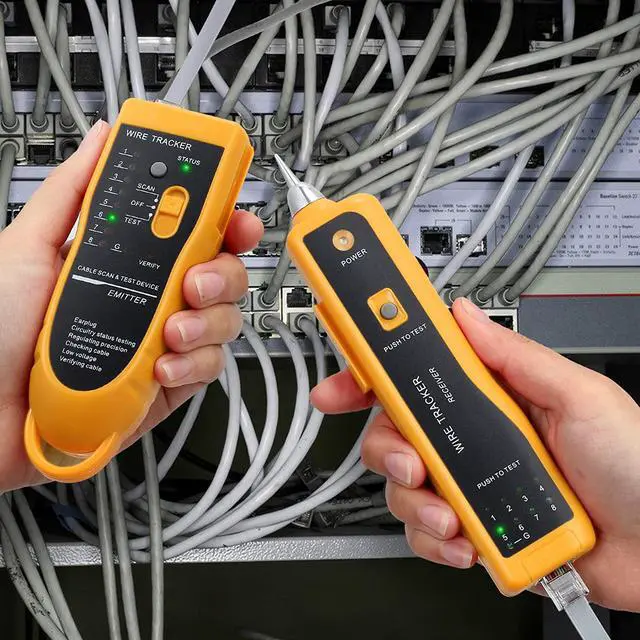

Wide range of applications, this line finder can be applied to machine room maintenance, circuit maintenance, telephone installation, routine line detection, broadband installation and indoor wiring. We have been working to solve all kinds of problems in your life.

It is a necessary testing tool for telecommunication engineering, wiring engineering, routine network maintenance and other metal wire wiring works and maintenance work.

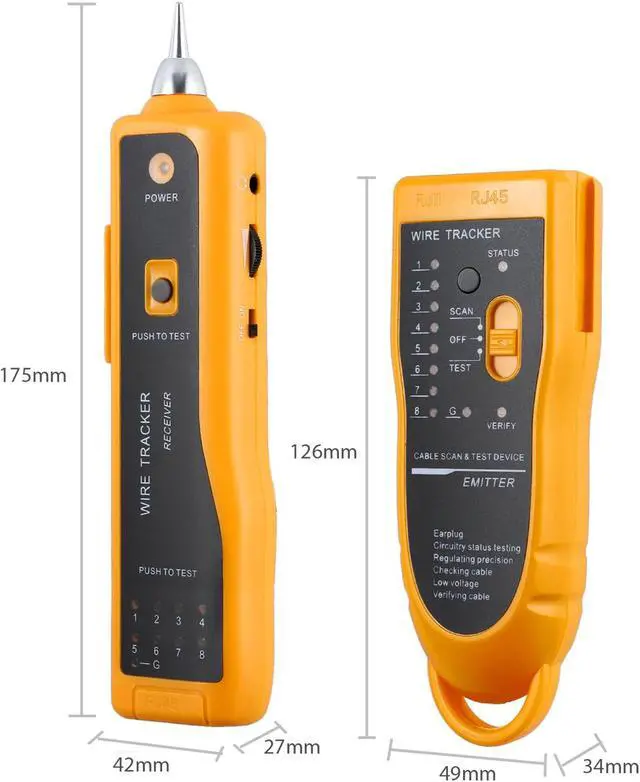

Specifications:

Operating temperature: 0 ~ 40 ° C, maximum relative humidity of 80% (non-condensing).
Storage temperature: -10 ~ 50 ° C, maximum relative humidity of 80% (non-condensing, no battery)
Altitude: <2000m
Explosion-proof type: IP 40
Transmission signal distance: about 300m
Battery: transmitter 6F22/9V x 1; receiver 6F22/9V x 1

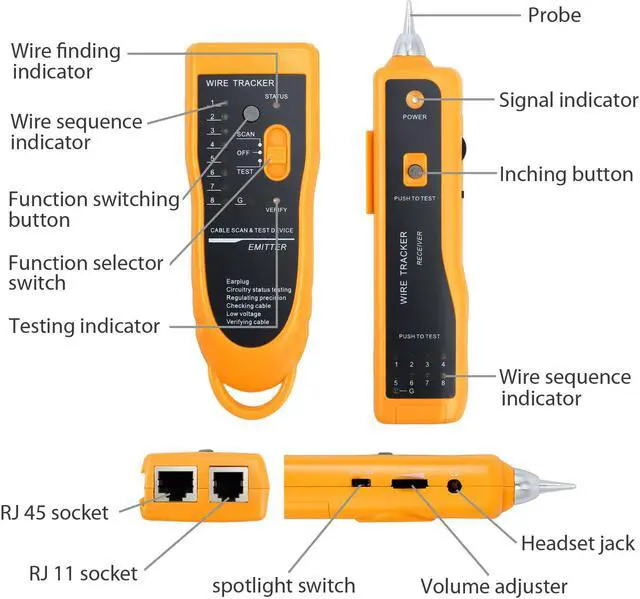

The Main Functions
Wire Tracking: RJ11, RJ45, and other metal wires can be found through the transmitter
Line detection: Physical connection conditions such as open circuit, short circuit, wrong pair, and reverse connection of the network cable can be detected
Continuity testing: Can detect the connectivity of the line

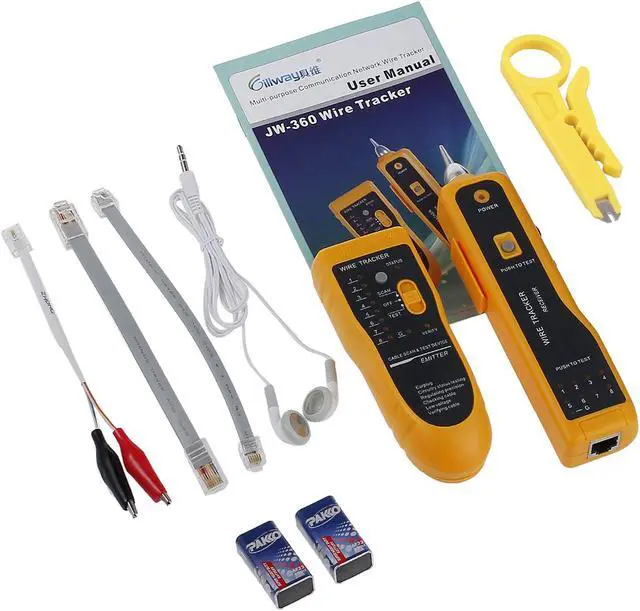

PACKAGE CONTENT:
Receiver x1
Transmitter x1
RJ11 converter interface x1
RJ45 converter interface x1
Headset x1
Carrying case x1
Manual x1
9V Batteries x2

Multifunction

Wire Sequence Calibration
a).Rotate the knob of the transmitter to the NETWORK position

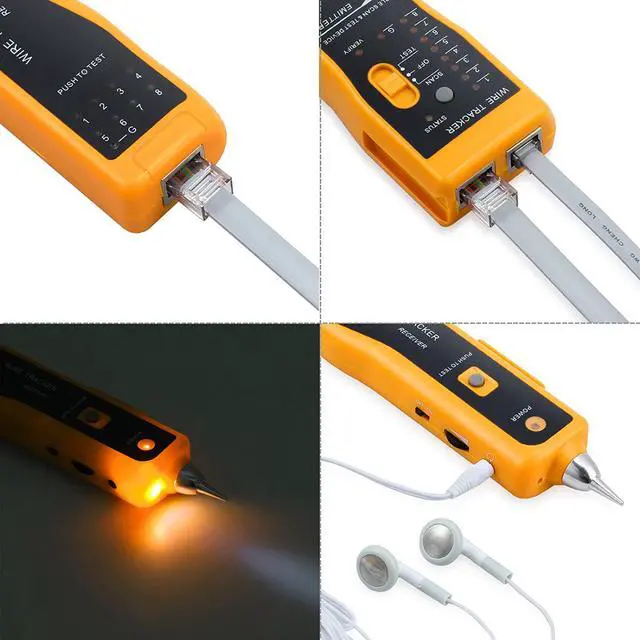

b) Plug one end of the network line into the RJ45 terminal of the transmitter and the other end into the terminal of the receiver RJ45.

c) Press the TEST button on the transmitter to start the test. The LED Wire Sequence Light will indicate the result of the test.

DC storage battery or positive and negative polarity detection
For the detection of DC storage battery or positive and negative polarity of the line, only the transmitter can be used for detection.When the transmitter's battery is lower than the working voltage, the hunt function indicator SCAN on the transmitter will flash. When the indicator is flashing, please Replace the battery in time.

Telephone line testing
For the detection of various states of the telephone line in operation, only the transmitter can be detected. It can detect the status of the telephone line in operation (idle, ringing, off-hook) and discriminate TIP or RING line

TONE Function Interpretation:(Only use transmitter to detect.)
The operation method to determine TIP or RING line:

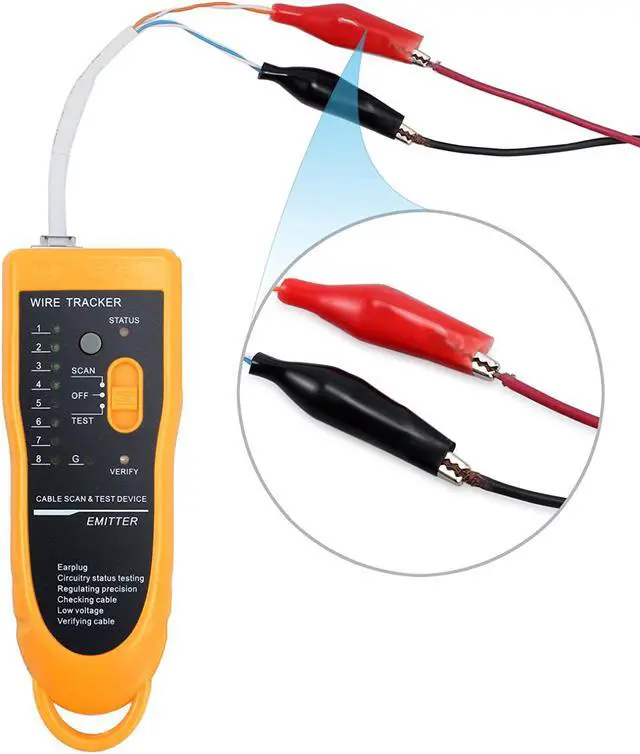

Rotate toTONE function position--Connect the RJ11 interface-- Clip the red and black clips to the telephone line:

I.TONEindicator is Red:the Red clip end is TIP line,the Black clip end is RING line;

II.TONE indicator is Green:the Red clip end is RING line,the Black clip end is TIP line

Determine the idle, ringing, and off-hook status of the telephone line during work:

Rotate toTONE function position--Connect the RJ11 interface--The Red clip is clipped onto the RING line, and the Black clip is clipped ont
