DIXSG 10 Pack LM2596 DC to DC High Efficiency Voltage Regulator 3.2-35V to 1.25-30V Buck Converter DIY Power Supply Module
Limited time offer, ends 12/16 By Mystery Gate
- Brand DIXSG
- Power source Corded Electric
- Product dimensions 45D x 23W x 14H millimetres
- Current rating 3 Amps
- Maximum frequency 65 KHz
+
+
Overview
Specs
Reviews

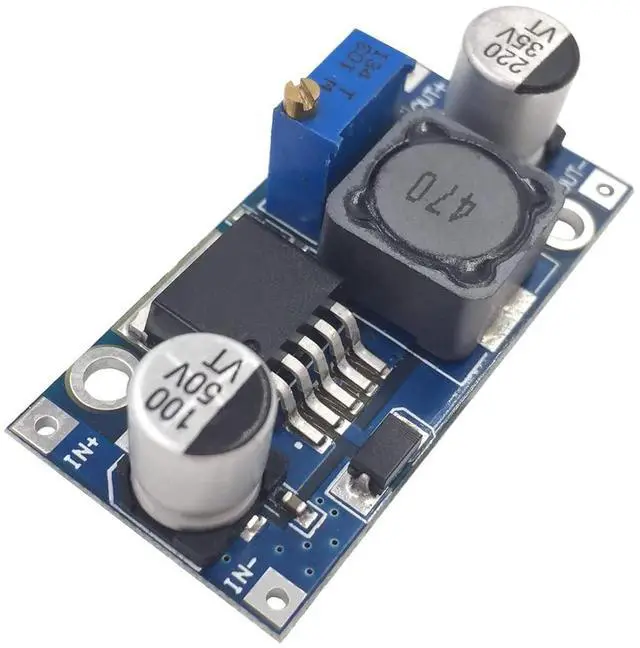

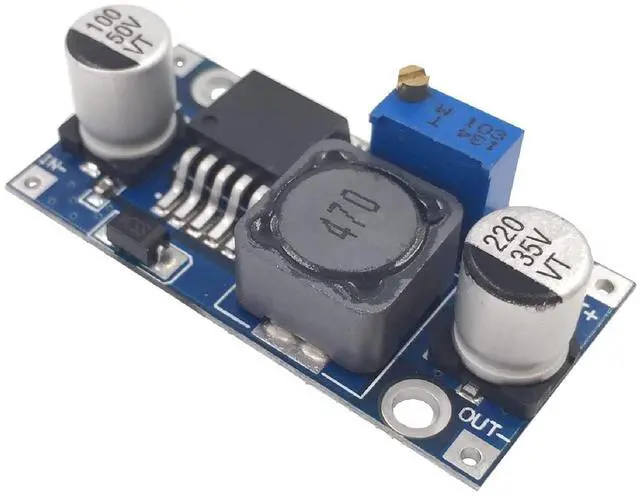

High PrecisionThe buck converter consists of 36u thickened circuit boards, high-Q inductance with output LED indicator, and superior solid-state capacitors that can effectively filter out high frequency noise. Suitable for various electronic projects.
Input VoltageDC 3.2V to 35V (input voltage must be 1.5V higher than the output voltage, no boost).
Output VoltageDC 1.25V to 30V voltage is continuously adjustable, maximum output current is 3A.

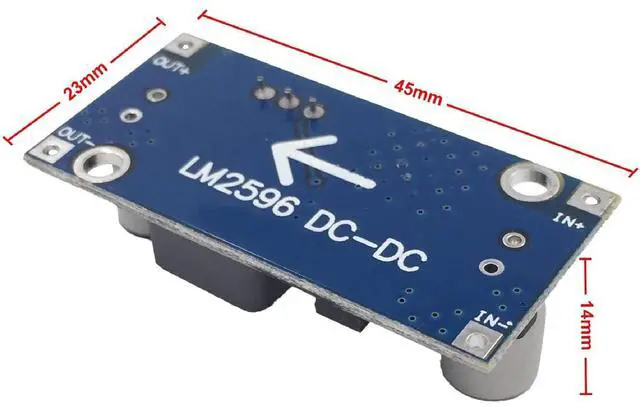

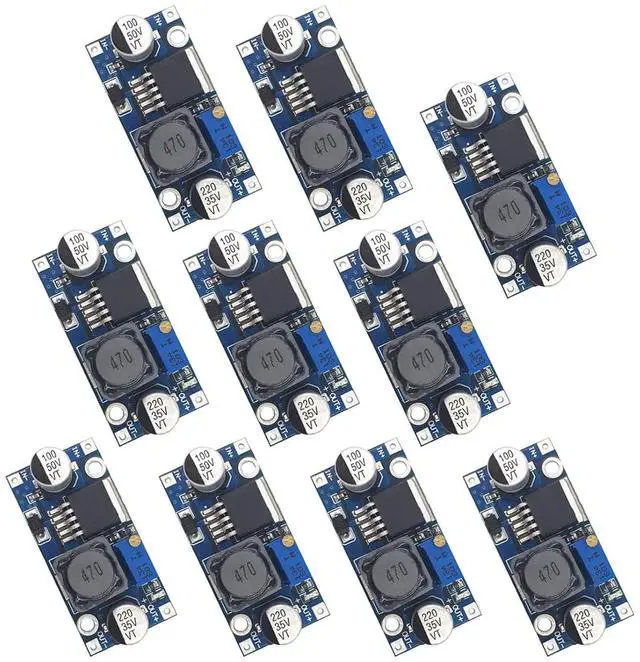

Mini Size45 * 23 * 14 mm (with potentiometer). 10pcs included.

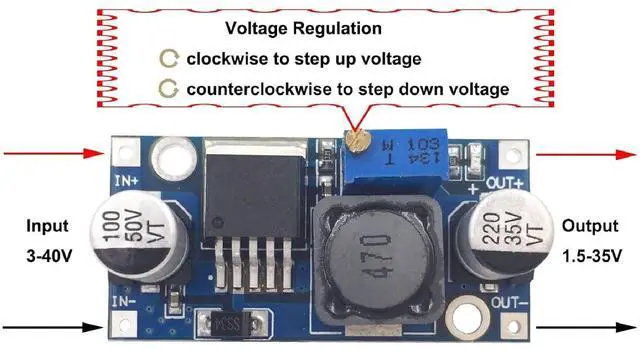

Easy to DIYConnect to power source, using a mini screwdriver to increase or decrease output voltage by adjusting the screw on the blue potentiometer and monitor voltage with multimeter to get the needed voltage, clockwise to increase voltage and counterclockwise to decrease voltage. (Factory default stays a high voltage, you need to contrarotate about 7-15 circles before the voltage starts ramping down, 1 circle means +/- 1V)
Input VoltageDC 3.2V to 35V (input voltage must be 1.5V higher than the output voltage, no boost).
Output VoltageDC 1.25V to 30V voltage is continuously adjustable, maximum output current is 3A.
Mini Size45 * 23 * 14 mm (with potentiometer). 10pcs included.
Easy to DIYConnect to power source, using a mini screwdriver to increase or decrease output voltage by adjusting the screw on the blue potentiometer and monitor voltage with multimeter to get the needed voltage, clockwise to increase voltage and counterclockwise to decrease voltage. (Factory default stays a high voltage, you need to contrarotate about 7-15 circles before the voltage starts ramping down, 1 circle means +/- 1V)
