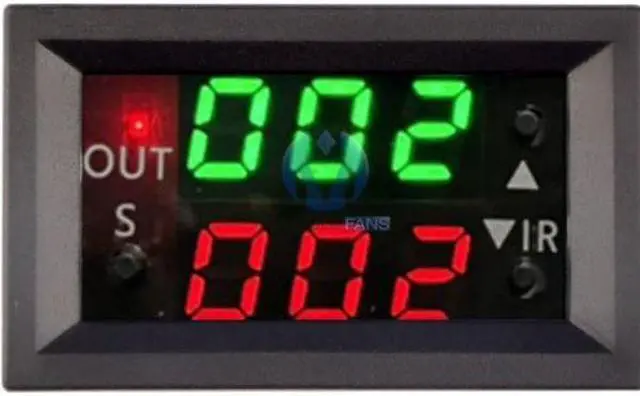

JNCC-1958A - RELAY TIME DELAY 0-999HRS 1P1T 12vdc DUAL DISPLAY PANEL MOUNT

DC 12V Dual Display Time Relay Module Time Delay Relay Mini LED Digital Timer Relay Timing Delay Cycle Control Switch

Features

1: Parameter setting is simpler

2: Small and exquisite appearance

3: Direct output type

4: Timing range: 0~999 (seconds minutes hours) Minimum unit: 1 second

parameter

Product size: 48X29X34mm

Mounting opening: 45.5x26.1mm

Timing range: 0~999 (seconds minutes hours) Minimum unit: 1 second

Technical parameters: DC12V 2OA MAX 240W MAX

Working humidity: 35%~85%

Working temperature: 10~60

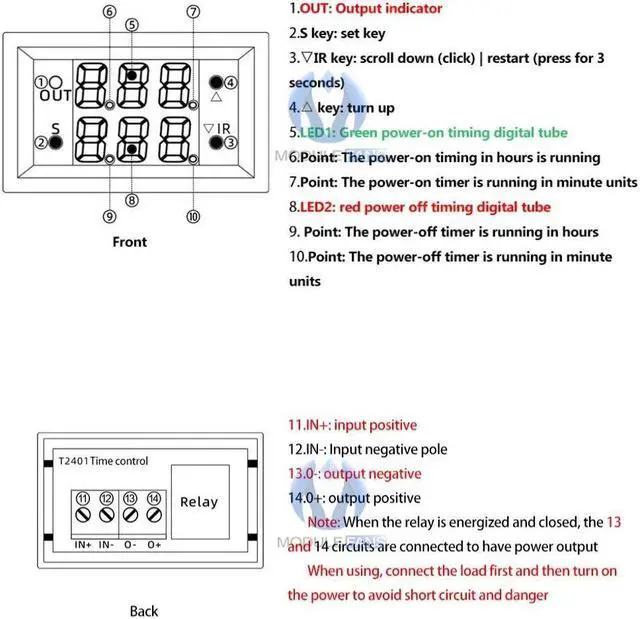

Direct output wiring is convenient green start and red stop easy to set

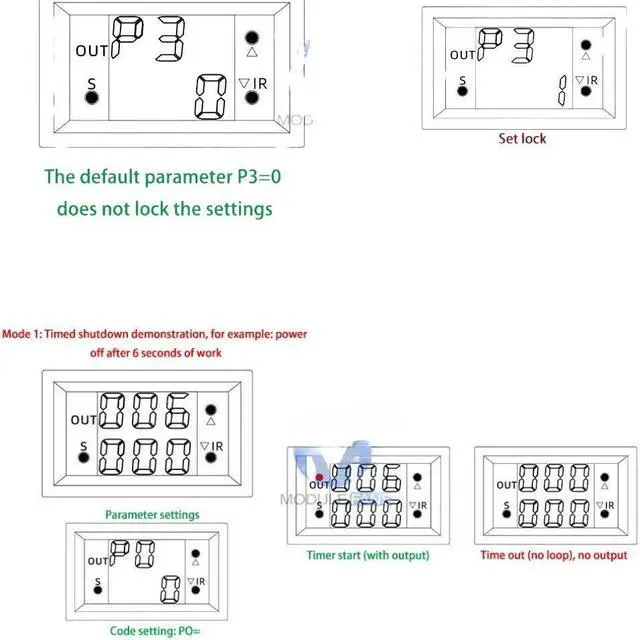

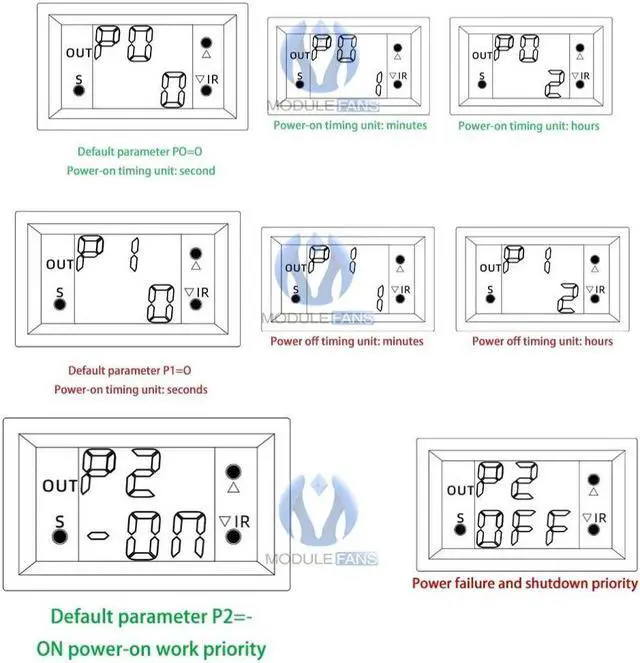

Code menu introduction

Press and hold the S button for 6 seconds to enter the code menu

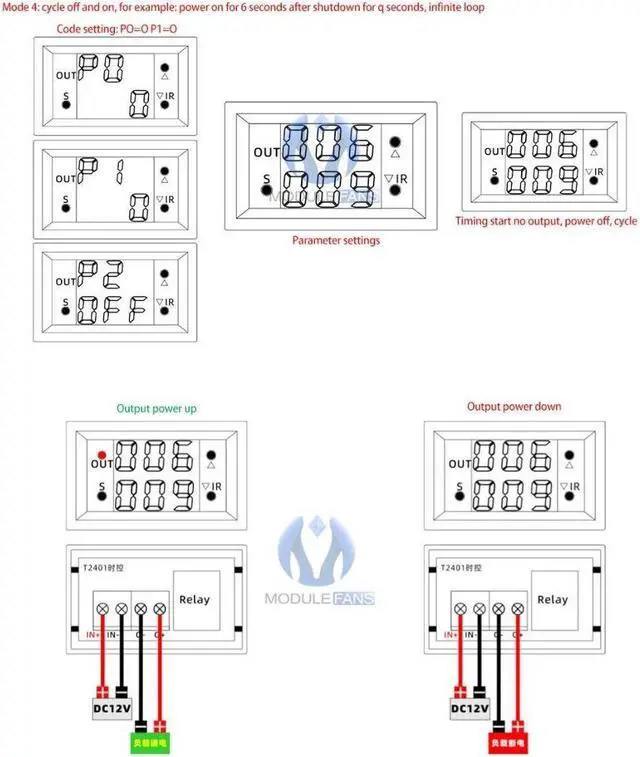

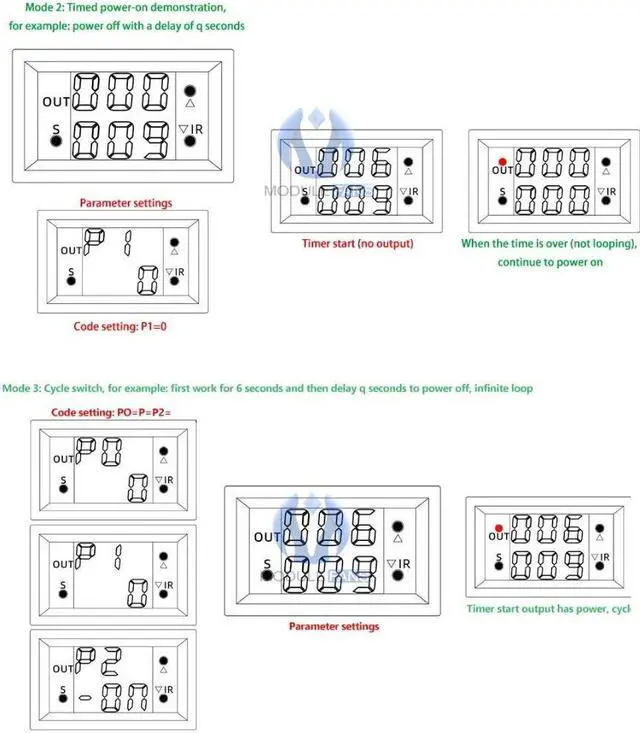

Mode setting demo

Doubleclick the S key to enter the parameter setting mode

safety warning

The output is active connect the load and then power on to avoid short circuit
