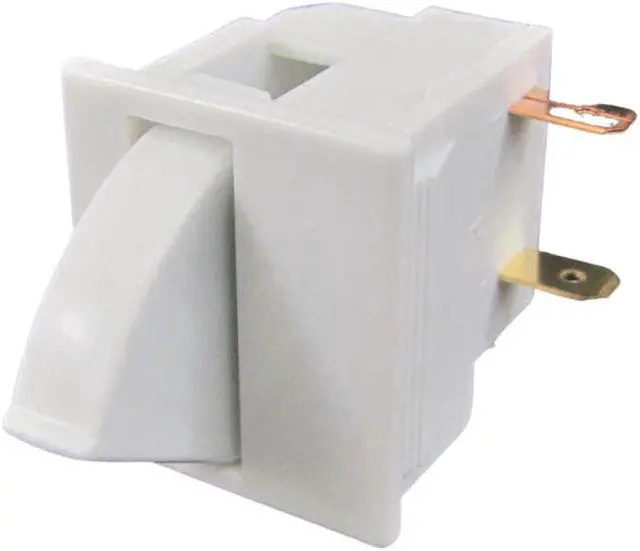

Main image of 30-17065 - FRIDGE DOOR SWITCH 1P1T (OFF)-ON 5A/125VAC MOMENTARY SPST

Visit Sayal electronics Store

30-17065 - FRIDGE DOOR SWITCH 1P1T (OFF)-ON 5A/125VAC MOMENTARY SPST

30-17065 - FRIDGE DOOR SWITCH 1P1T (OFF)-ON 5A/125VAC MOMENTARY SPST...

Overview

Specs

Reviews

FRIG SWITCH
Designed for use in a refrigerator as a light switch turning On when door is opened. Switch is normally ON until the activator is depressed: or pushed down by closing the door. For Mounting in metal panel. Can be used in dead mans switch applications. Applications could include alarm switch hook up indicator switch etc.

Electrical Ratings
Current 5a 125vac
insulation Resistance: @DC 500v 100Megaohms
Withstand Voltage: ac 1500v 1 minute.
Contact Resistance: DC 24v 1a 100mohmsohms or less
life: 100 000 Cycles at 5Amps
Minimum Stroke to open Contacts is 0.5mm from full open position.
Action: SPST (OFF)ON
