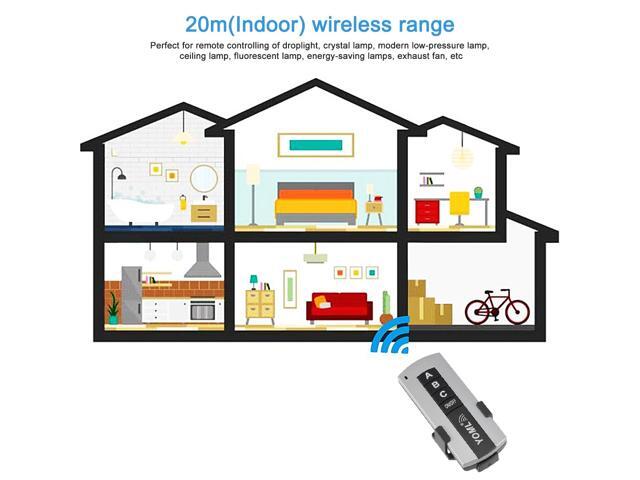

Remote Controlling Distance: 20 Meters(Indoor)
Input: DC 12V, 50Hz/60Hz
Operating Frequency: 315MHZ
Each loading Power: within 50W
When power restored, lamp will not turn on, the lamp will turn on if using Remote Control; Turn on the wall switch, lamp will not turn on.

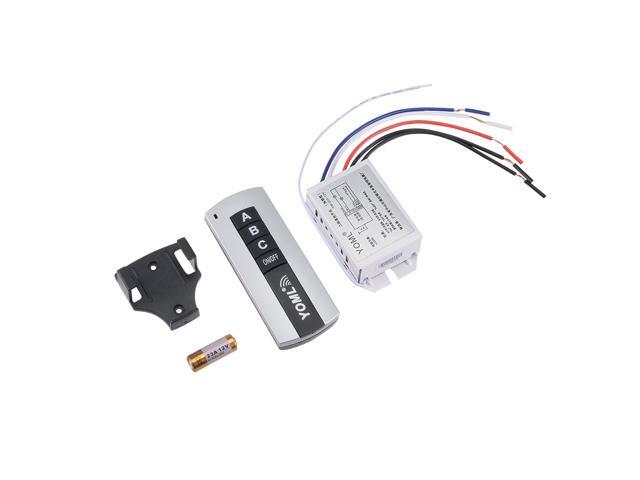

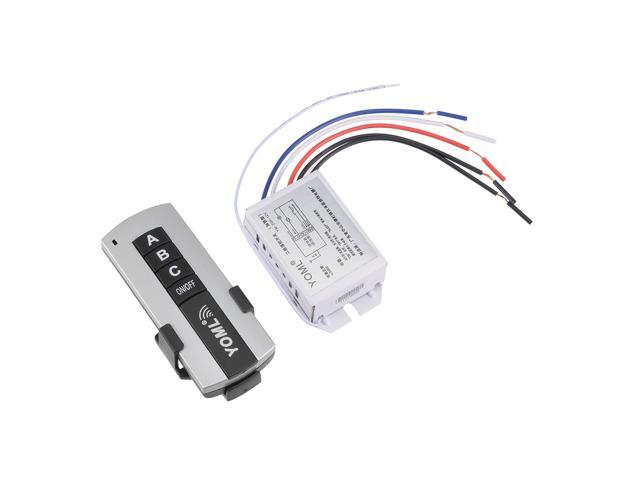

Package included:1 x 2 Port Switch, 1 x Remote Controller, 1 x Battery(23A 12V)

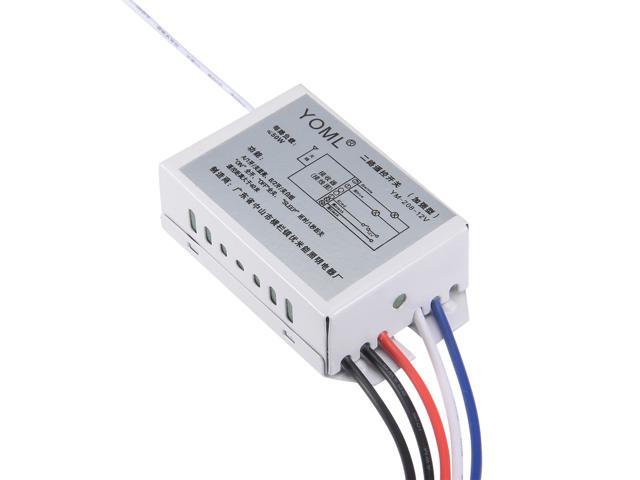

1.Blue, white cable are connected to lamps, black,red cable is connected with DC power, black one is connected to null line. Left side white cable is connected to antenna.

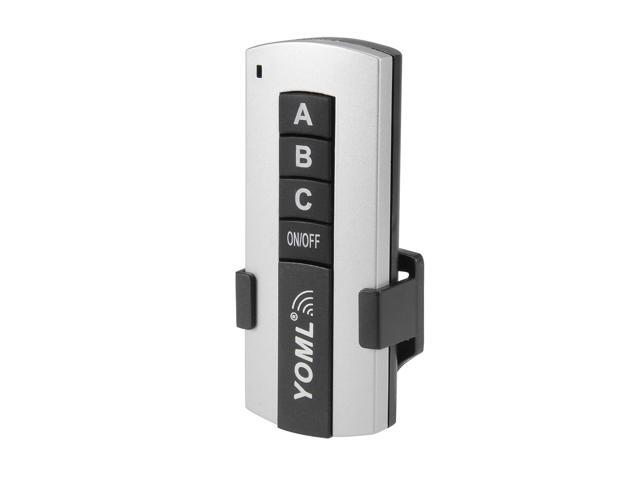

2.Controller function: A for controlling blue group lamp On-Off, B for white group lamp On-Off, C for delay 8 seconds lamp Off, On-Off control all lamp on-off.
3.Applications: It can be applied to switch incandescent, energy-saving lamps, fluorescent lamps, low voltage lights, lamps and all types of household appliances.
