Main image of ROG CROSSHAIR VI HERO (WI-FI AC) AM4 AMD X370 SATA 6Gb/s USB 3.1 ATX AMD Motherboard

Alt view image 2 of 4 - ROG CROSSHAIR VI HERO (WI-FI AC) AM4 AMD X370 SATA 6Gb/s USB 3.1 ATX AMD Motherboard

Alt view image 3 of 4 - ROG CROSSHAIR VI HERO (WI-FI AC) AM4 AMD X370 SATA 6Gb/s USB 3.1 ATX AMD Motherboard

Alt view image 4 of 4 - ROG CROSSHAIR VI HERO (WI-FI AC) AM4 AMD X370 SATA 6Gb/s USB 3.1 ATX AMD Motherboard

Visit Corn Electronics Store

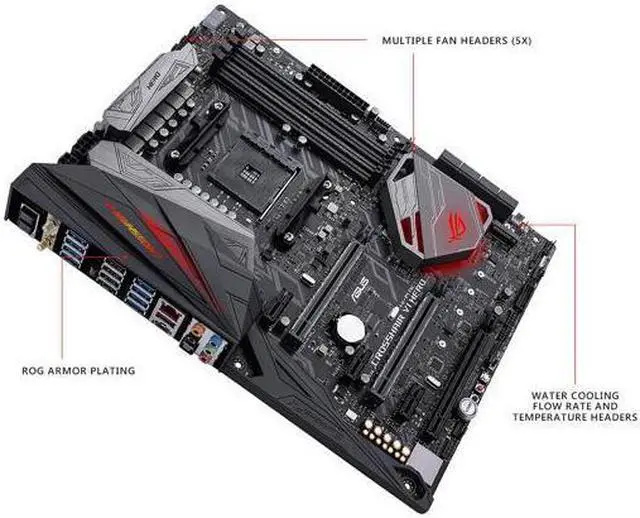

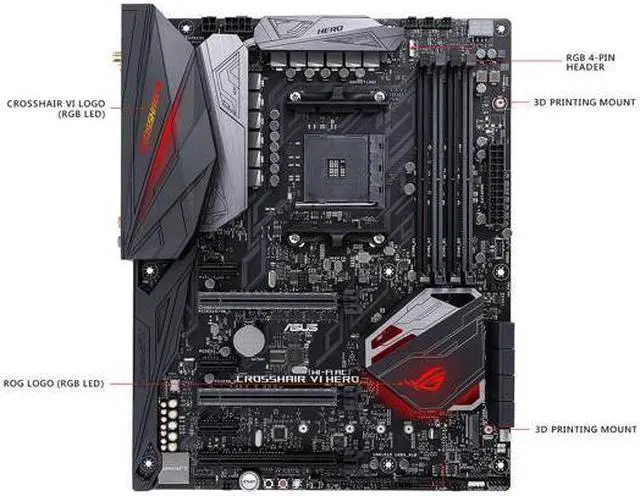

ROG CROSSHAIR VI HERO (WI-FI AC) AM4 AMD X370 SATA 6Gb/s USB 3.1 ATX AMD Motherboard

REFURBISHED

Be the first to review this product...

Powered by AMD Ryzen AM4, 7th generation Athlon processors to maximize connectivity and speed with NVMe M.2, onboard 802.11 AC WI-FI, front panel USB 3.1 and Gigabit LAN
5-Way Optimization featuring Auto-Tuning and FanXpert 4 provides automatic overclocking profiles for maximum OC performance while AIO and watercooling headers deliver dynamic system cooling
Dual unique SafeSlots feature an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs
Unmatched personalization with ASUS exclusive AURA Sync RGB lighting and 3D-printing friendly mounts. Form Factor ATX Form Factor 12 inches x 9.6 inches

Overview

Specs

Reviews

Powered by AMD Ryzen AM4, 7th generation Athlon processors to maximize connectivity and speed with NVMe M. 2, onboard 802.11 AC WI-FI, front panel USB 3.1 and Gigabit LAN
5-Way Optimization featuring Auto-Tuning and FanXpert 4 provides automatic overclocking profiles for maximum OC performance while AIO and watercooling headers deliver dynamic system cooling
Dual unique SafeSlots feature an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs
Unmatched personalization with ASUS exclusive AURA Sync RGB lighting and 3D-printing friendly mounts. Form Factor ATX Form Factor 12 inches x 9.6 inches

Model
Model	CROSSHAIR VI HERO (WI-FI AC)

Supported CPU
CPU Socket Type	Socket AM4
CPU Type	Ryzen / Athlon / A-Series

Chipsets
Other Chipset	AMD X370

Memory
Memory Slots	4x288pin(DDR4)
Memory Standard	AMD Ryzen Processors:DDR4 3200(O.C.)/ 2666/ 2400/ 2133 MHz ECC and non-ECC, Un-buffered Memory AMD 7th Generation A-series/Athlon Processors:DDR4 2400/ 2133 MHz Non-ECC, Un-buffered Memory * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	AMD Ryzen 2nd Generation / Ryzen 1st Generation Processors2 x PCIe 3.0/2.0 x16 (x16 or dual x8)AMD Ryzen with Radeon Vega Graphics / 7th Generation A-Series/Athlon X4 Processors1 x PCIe 3.0/2.0 x16 (x8 mode)
PCI Express 2.0 x16	1 x PCIe 2.0 x16 (max at x4 mode) ** PCIeX4_3 slot shares bandwidth with PCIeX1_1, PCIeX1_2 and PCIeX1_3.
PCI Express x1	3 x PCI Express x1

Storage Devices
SATA	8 x SATA 6.0Gb/s
SATA RAID	0/1/10
M.2	AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Ryzen 1st Generation Processors:1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)AMD 7th Generation A-series/Athlon Processors:1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Onboard Audio
Audio Chipset	ROG SupremeFX High Definition Audio CODEC S1220
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Intel i211AT
Max LAN Speed	1Gbps

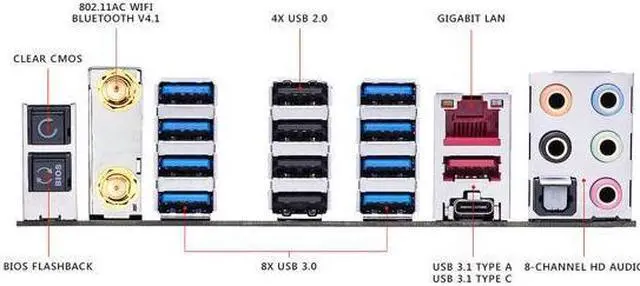

Rear Panel Ports
RJ45	1 x RJ45
USB 1.1/2.0	4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
USB 3.1	8 x USB 3.1 Gen 1 (blue)1 x USB 3.1 Gen 2 (red) Type-A
S/PDIF Out	1 x Optical
Audio Ports	5 Ports

Onboard Ports
Onboard USB	1 x USB 3.1 Gen 2 front panel connector1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
Other Connectors	2 x RGB Header(s)1 x TPM connector(s)1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)3 x Chassis Fan connector(s)1 x AIO_PUMP connector1 x W_PUMP+ connector1 x Front panel audio connector(s) (AAFP)1 x Slow Mode switch(es)1 x Thermal sensor connector(s)1 x Reset button(s)1 x LN2 Mode switch(es)1 x ROG extension (ROG_EXT) header(s)1 x Safe Boot button1 x ReTry button1 x Slow Mode jumper(s)1 x System panel connector2 x 3D Mount screw port(s)1 x W_IN header2 x W_OUT header1 x W_FLOW header1 x Start button

Features
Features	Multi-GPU Support:Supports NVIDIA 2-Way SLI TechnologySupports AMD CrossFireX Technology Due to CPU limitation, NVIDIA 2-Way SLI Technology is not supported for AMD 7th Gen A-series/Athlon Processors.ROG Exclusive Features:Clear CMOS buttonROG RAMCache IIROG CPU-ZROG CloneDriveMemOK! ButtonSlow ModeOverwolfReTry ButtonSafe Boot ButtonStart ButtonReset ButtonLN2 ModeGameFirst IVROG Aura- Aura Lighting Control- Aura RGB Strip HeadersExtreme Engine Digi+:- MicroFine Alloy Chokes- NexFET Power Block MOSFET- 10K Black Metallic CapacitorsMem TweakItKeyBot II- One-click Overclocking- ClrCMOS- Power OnUEFI BIOS features:- O.C. Profile- Tweakers' Paradise- ROG SSD Secure Erase- Graphic Card Information PreviewROG RAMDiskExtreme TweakerLoadline CalibrationUSB BIOS FlashbackSpecial Features:ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5:- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo AppTPUGamer's Guardian:- SafeSlotASUS Exclusive Features:- AI Suite 3- Ai ChargerASUS EZ DIY:- ASUS CrashFree BIOS 3- ASUS EZ Flash 3ASUS Q-Design:- ASUS Q-Shield- ASUS Q-Code- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)- ASUS Q-DIMM- ASUS Q-ConnectorBIOS:128MB Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory informationSupport Disc:DriversAURAROG GameFirst IVROG RAMDiskROG RAMCache IIROG CPU-ZROG Mem TweakItROG Keybot IISonic Studio IIISonic Radar IIIOverwolfCloneDriveKaspersky Anti-VirusDAEMON Tools SoftwareWinzipASUS Utilities ROG GameFirst Technology is only available for Windows 10/8.1 64-bitOperating System:Windows 10 64-bit

Dimensions
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"

Packaging
Package Contents	Accessories:User's manualASUS Q-Shield4 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11 a/b/g/n compliant)1 x SLI HB BRIDGE (2-WAY-M)1 x ROG big sticker1 x Q-Connector1 x 10-in-1 ROG cable label1 x Extension Cable for RGB strips (80cm)1 x 3D printing mount package1 x ROG coaster(s)

Additional Information
First Listed on Newegg	November 05, 2023
