X99 Motherboard 8 × DDR4 DIMM +2x Intel Xeon E5-2680 V4 CPU 14 Cores 28 Threads + Samsung 256GB (8x32GB) RAM 2133MHz DDR4 ECC Sever Memory Motherboards Server

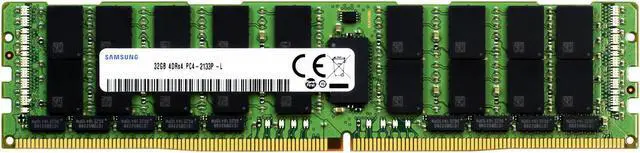

Package include: 1x X99 motherboard, 2x Intel Xeon E5-2680 V4 CPU, 8x Samsung 32GB 2133MHz Rams DDR4 ECC Essentials Product Collection Intel® Xeon® Processor E5 v4 Family Code Name Products formerly Broadwell Vertical Segment Server Processor Number E5-2680V4 Status Launched Launch Date Q1'16 Lithography 14 nm Use Conditions Server/Enterprise CPU Specifications # of Cores 14 # of Threads 28 Processor Base Frequency 2.40 GHz Max Turbo Frequency 3.30 GHz Cache 35 MB Intel® Smart Cache Bus Speed 9.6 GT/s # of QPI Links 2 Intel® Turbo Boost Technology 2.0 Frequency 3.30 GHz TDP 120 W VID Voltage Range 0 Memory Specifications Max Memory Size (dependent on memory type) 1.5 TB Memory Types DDR4 1600/1866/2133/2400 Max # of Memory Channels 4 Max Memory Bandwidth 76.8 GB/s Physical Address Extensions 46-bit ECC Memory Supported Yes Expansion Options Scalability 2S PCI Express Revision 3.0 PCI Express Configurations x4, x8, x16 Max # of PCI Express Lanes 40 Package Specifications Sockets Supported FCLGA2011-3 Max CPU Configuration 2 TCASE 86°C Package Size 45mm x 52.5 mm X99 Dual Server Motherboard Computerspiel Virtual Machine Simulator E5CPU Item Type: Motherboard
Model: X99
Sound Card: Chipset integrated chip sound card
Motherboard Chip: For Intel X99 Gigabit
Network Card: Integrated RTL8111H Gigabit network card
Chip: Audio integrated 6-channel sound chip
CPU Socket: LGA 2011-3
Memory Size Memory Type: DDR4 3000/2666/2400 / 2133MHz
Memory Slot: 8 × DDR4 DIMM
Expansion Slot: PCI-E slot 2 × PCI-E X16 PCI-E slot 2 x PCI-E X1 2 x USB 3.0 connectors (1 set) 2 x USB 2.0 connection pin (1 set) 6 x SATA 3.0 interface 1 x NVME M. 2 interface 1 x SATA/NVME M. 2 interface (change the jumper) I / O PS / 2 keyboard or universal interface 1 × RJ45 network interface (Gigabit network card) 4 x USB 2.0 port 4 x USB 3.0 port
Battery Model: CR2023 (not included)
Motherboard Size: Approx. 281 x 295mm / 11.06 x 11.61 in
