NGW-1pc MR24BSD1 24GHz mmWave Sensor - Respiratory Sleep Detection Module | Doppler radar | Sync Sense | Privacy Protect

Description

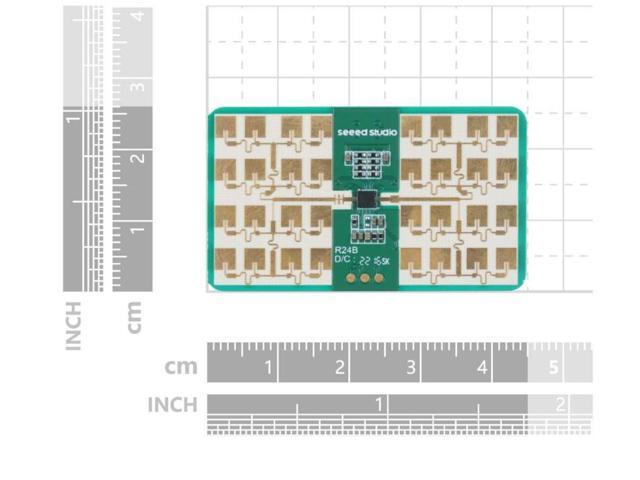

The MR24BSD1 24GHz radar module applies Doppler radar detection technology to implement human sleep quality monitoring, detecting body moving and stationary along with human breathing rate, providing a fully private and secure environment, independently from other noisy influences. It represents useful privacy-protected, secure sensor radar systems in smart home applications like sleep safety alarm, sleep respiratory detection, movement monitoring.



Compared to the traditional PIR sensor, 24GHz mmWave sensors offer the better performance of human activities detection for high sensitivity. The transmitting mmWave is millimeter-level which means mmWave sensors will maintain sensing status even if there is a shelter block the detected object. Unlike rapid responding to PIR sensor, mmWave sensors detect objects continuously. All of which makes mmWave sensors quite useful in the living rooms, hotels, or even prison that requires monitoring all the time.

The MR24BSD1 radar leverages the superior performance of 24GHz mmWave to monitor human sleep quality implements based on received breathing rate and body movement while people falling asleep. Furthermore, the radar is independent of temperature, humidity, noise, airflow, dust, light, and other environmental influences. Designed as low power output, the radar maintains health-friendly working status while it is detected. For privacy protection, the radar uses the properties of millimeter waves that only process wave signals to provide a fully private sensing environment.

The radar supports secondary development and it adapts to various scenarios applications as it includes scene recognition capability that identifies occupied/unoccupied and personnel activity status. The detected area is a Horizontal 40°/vertical 40° sector beam and it maximum detect 1.5 meters of body movement and 1.5 meters human breathing rate.



The Updated Product
1. There is an resistor used for filtering RC. Since it doesn't use in the module as we tested, it has been removed.



2. Since we removed the LED from the module, the resistor here limited cicuit has been canceled as well.



Pinout


Usage Method

Application
Smart Home
Smart Hotel
Human Sleep Quailty Monitor
Specification
Detection angle and distance
Parameter content

Minimum value

Typical values

Maximum value

Unit

MR24BSD1 (32-point narrow beam antenna)

Sleeper perception distance

-

-

2.75

meter

Fall state sensing distance

0.5

1.5

meter

Radar detection angle (horizontal)

-

40

-

degree

Radar detection angle (pitch)

-

40

-

degree

Electrical characteristics
Operating parameters

Minimum value

Typical values

Maximum value

Unit

Operating voltage (VCC)

4.5

5.0

6

V

Operating current (ICC)

90

93

100

mA

Operating I\O Inflow/Output Current (IIO)

-

8

20

mA

Operating temperature (TOP)

-20

-

+60



Storage temperature (TST)

-40

-

+80



RF Performance
Launching parameters

Operating frequency (fTX)

24.0

-

24.25

GHz

Transmitted power (Pout)

-

-

6

dBm

Part List
MR24BSD1 24GHz mmWave Radar Module x1
