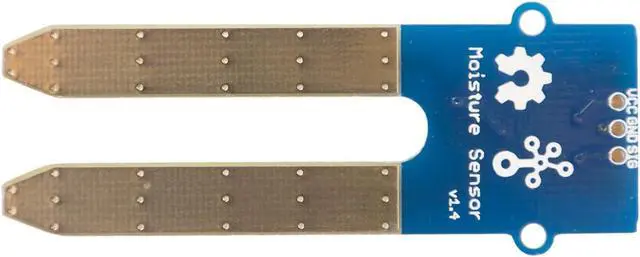

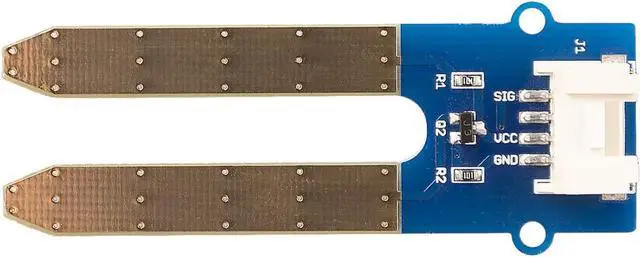

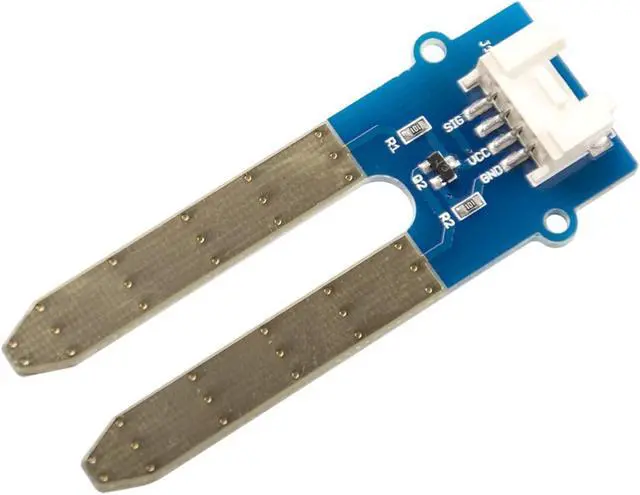

NGW-1pc Grove - Soil Moisture Sensor
- Features
- Cost-effective: Great for students, makers and IoT developers as DIY and prototype design.
- Plug-and-play: Grove compatible interface(data transmit) and two large pads function as probes(data collecting).
- Starter-friendly: Detail start-up tutorials, abundant resources, and projects provided in Wiki and Community.
- Effective measurement: Based on soil resistivity measurement, high moisture resulting lower resistance and vice versa.
+
+
Overview
Specs
Reviews
Description
This Grove - Soil Moisture Sensor can be used to decide if the plants in a garden need watering. You can also use soil moisture sensors in gardens to automate watering plants. It can be used very easily by just inserting the sensor into the soil and reading the output using ADC.
Applications
Botanical Gardening
Moisture Sensoring
Consistency Measurement
Technical details

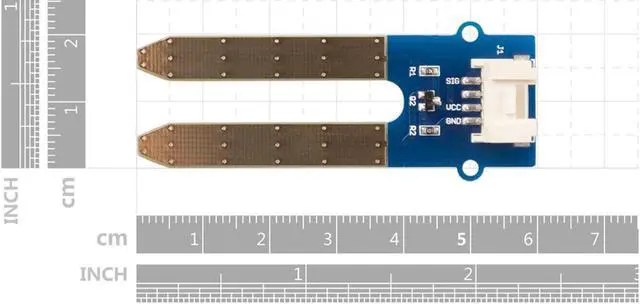

Dimensions 60mm x20mm x 6.35 mm
Weight G. W 10g
Battery Exclude
Operating voltage 3.3 ~5V
Operating current 35mA
Sensor Output Value in dry soil 0~ 300
Sensor Output Value in humid soil 300~700
Sensor Output Value in water 700 ~ 950
PCB size 2.0 cm X 6.0 cm
Part List
Grove - Moisture Sensor *1
Grove Cable *1
This Grove - Soil Moisture Sensor can be used to decide if the plants in a garden need watering. You can also use soil moisture sensors in gardens to automate watering plants. It can be used very easily by just inserting the sensor into the soil and reading the output using ADC.
Applications
Botanical Gardening
Moisture Sensoring
Consistency Measurement
Technical details
Dimensions 60mm x20mm x 6.35 mm
Weight G. W 10g
Battery Exclude
Operating voltage 3.3 ~5V
Operating current 35mA
Sensor Output Value in dry soil 0~ 300
Sensor Output Value in humid soil 300~700
Sensor Output Value in water 700 ~ 950
PCB size 2.0 cm X 6.0 cm
Part List
Grove - Moisture Sensor *1
Grove Cable *1
