$39.18
Ships from United States.
Meet Your Seller

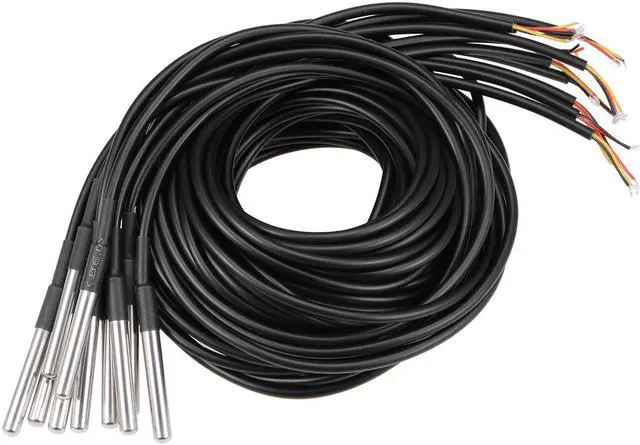

DS18B20 Temperature Sensor - Waterproof Digital Thermal Probe Temp Sensor - 2M Length - 10 Pcs
- Stainless steel housing: 6mm x 50mm; leads length: 2M
- 3.0V ~ 5.5V power supply 9 to 12 adjustable resolution
- No external components, the unique single-bus interface
- Out
+
+
Overview
Specs
Reviews
Specification:
Power Supply: 3.0V - 5.5V
Lead Length: 2M / 78.74"

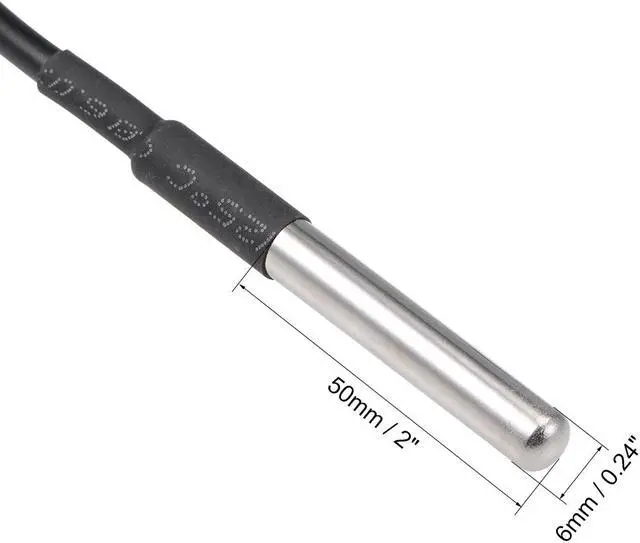

Housing Size: 6mm x 50mm / 0.24 x 2" (D*L)
Temperature Sensing Range: -55 ~ +125
Material: Stainless Steel, Plastic
Package Included: 10 x DS18B20 Temperature Sensor
Description:
1. Probe using DS18B20 temperature sensor chip. 3.0V ~ 5.5V power supply 9 to 12 adjustable resolution.
2. Stainless steel pipe encapsulated waterproof moisture-proof anti-rust Stainless steel housing (6mmx50mm).

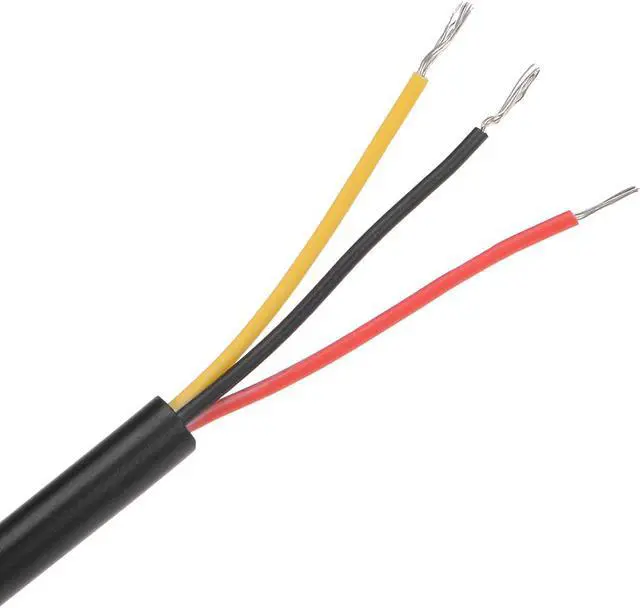

3. No external components, the unique single-bus interface. Output leads: red (VCC), yellow (DATA), black (GND).
4. Each probe is rigorously tested individually wrapped. Collected temperature signal can be directly converted into a digital signal for processing by the device.
5. Can be used in thermostatic controls, industrial systems, consumer products, thermometers, any thermally sensitive system, etc.
