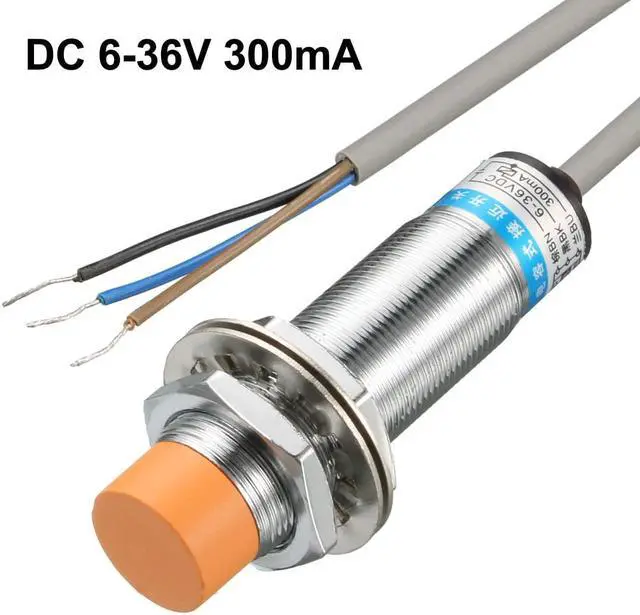

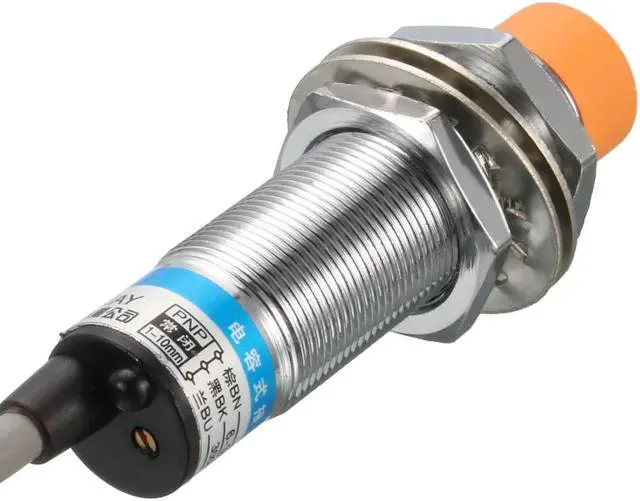

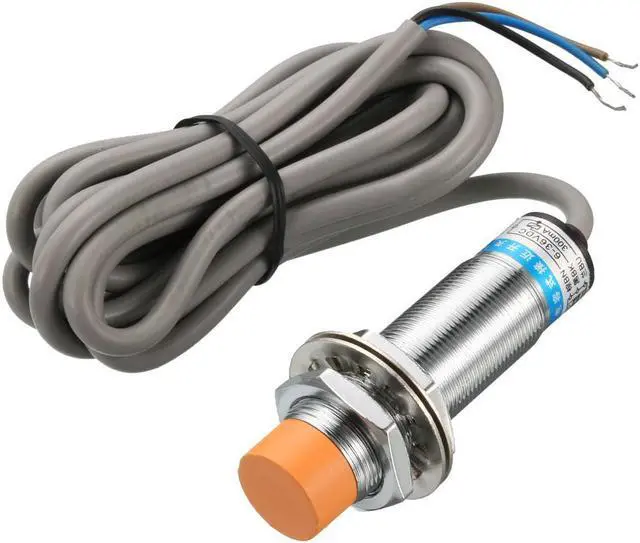

Unique Bargains 1-10mm Capacitance Proximity Sensor Switch PNP NC DC6-36V 300mA 3-wire
- Model: LJC18A3-B-Z/AY; Main Color: Silver Tone, Orange,Gray; Switch Size: 6.9 x 3.1cm / 2.7" x 1.2" (L*D); Product Name: Capacitive Proximity Switch
- Wire Type: DC 3 Wire Type (
+
+
Overview
Specs
Reviews
Description:
Note: 1. The Optimum voltage range is 6~36VDC.
2. It is recommended that the actual detection distance is less than 70% of the detection distance on the name plate.
3.When wiring, do not energized, strictly according to the wiring diagram.
NOT ALL MATERIAL ARE SUBJECT TO THE 10MM DETECTING RANGE.
3 factors that affect the function of the sensor:
1. Material density. Most of plastic material is not detectable by a capacitive proximity sensor at a proper distance, sometimes becasue the density is low , sometimes because the plastic is too thin, for example, if you detect an empty 1mm thick plastic bottle, the detecting distance may be less than 2mm , if you fill the bottle with water ,then the detection distance could be longer than 5mm.
2. The Sensitivity, when the sensor cannot work, there is a sensitivity-adjustment screw on the back of the sensor, you can turn it clockwise with a fla
Note: 1. The Optimum voltage range is 6~36VDC.
2. It is recommended that the actual detection distance is less than 70% of the detection distance on the name plate.
3.When wiring, do not energized, strictly according to the wiring diagram.
NOT ALL MATERIAL ARE SUBJECT TO THE 10MM DETECTING RANGE.
3 factors that affect the function of the sensor:
1. Material density. Most of plastic material is not detectable by a capacitive proximity sensor at a proper distance, sometimes becasue the density is low , sometimes because the plastic is too thin, for example, if you detect an empty 1mm thick plastic bottle, the detecting distance may be less than 2mm , if you fill the bottle with water ,then the detection distance could be longer than 5mm.
2. The Sensitivity, when the sensor cannot work, there is a sensitivity-adjustment screw on the back of the sensor, you can turn it clockwise with a fla
