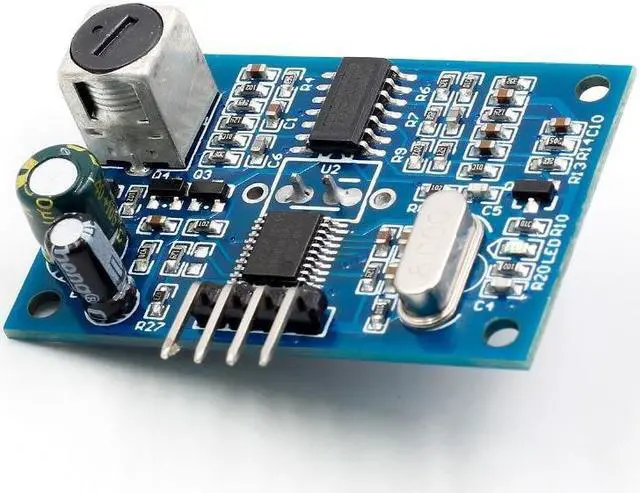

JSN-SR04T Integrated Ultrasonic Distance Measuring Ranging Parking Sensor Module Waterproof with Probe Lead Cable Compatible HC-SR04

Notice:

Description:

Electrical parameters:

• Operating voltage: DC 5V
• Quiescent current: 5mA
• Total current work: 30mA
• Acoustic emission frequency: 40khz
• Measuring distance: 4.5 m
• Blind distance: 25cm
• Resolution: about 0.5 cm

• Angle: less than 50 degrees
• Working temperature: -10 ~ 70 °C
• Storage temperature: -20 ~ 80 °C

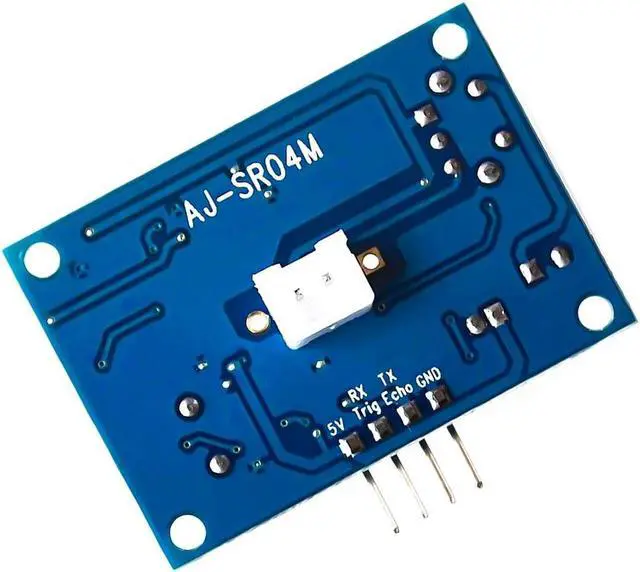

Wiring:

• + 5V (positive power supply)
• Trig (control side) RX
• Echo (the receiver) TX
• GND (negative)

Product Features

• Small size, easy to use
• Low voltage, low power consumption
• High accuracy
• Strong anti-jamming

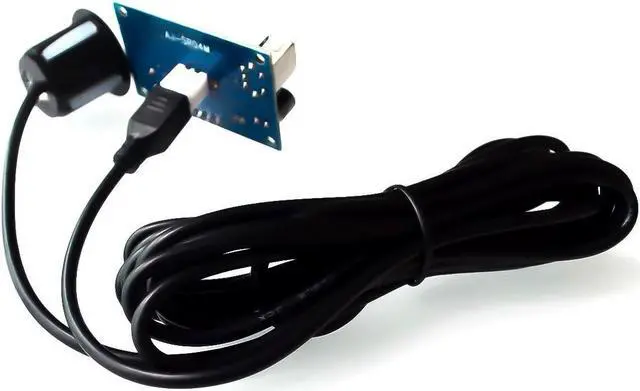

• Integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions

Application

• Horizontal distance;
• Obstacle avoidance, automatic control;
• The object approaches, there is a perceived
• Traffic control;

• Security, industrial control;
• Artificial intelligence, and research

What's in the Package:

• 1pcs Ultrasonic Distance Measuring Sensor Module
