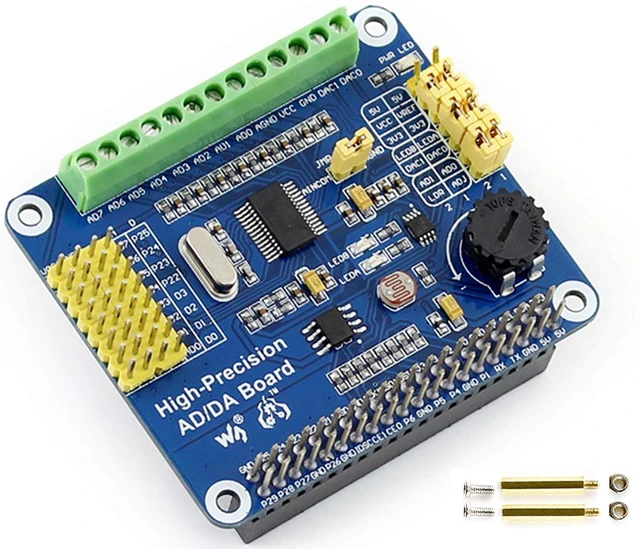

High-Precision AD/DA Expansion Board for Raspberry Pi 4B/Raspberry Pi 3B+/Raspbe
- Raspberry Pi AD/DA Expansion Board is designed for Raspberry Pi and Jetson nano

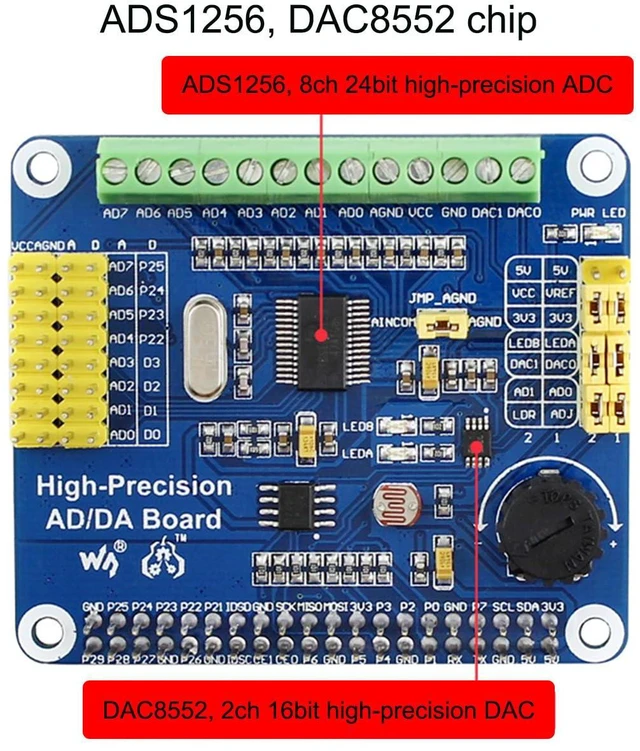

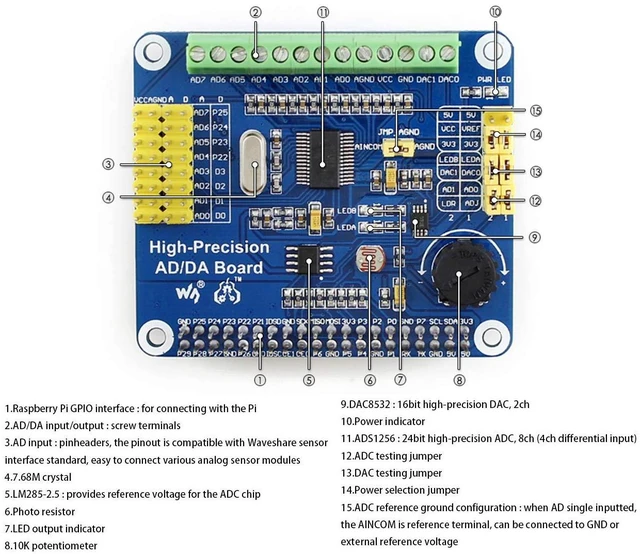

- Onboard ADS1256 chip, 8ch 24bit high-precision ADC (4ch differential input), 30ksps sampling rate. Onboard DAC8552 chip, 2ch 16bit high-precision DAC

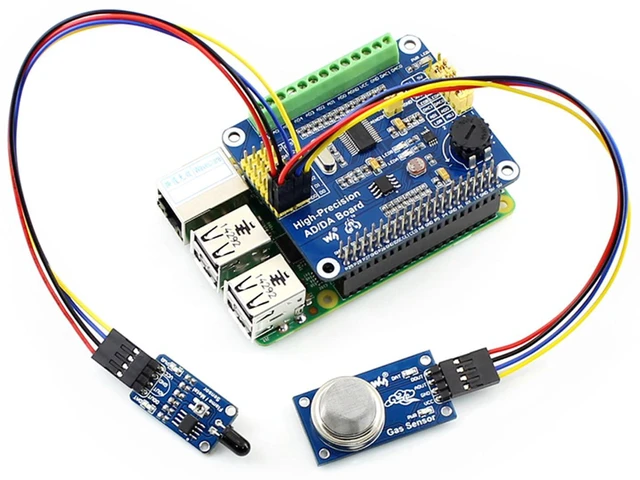

- Onboard input interface via pinheaders, for connecting analog signal. The pinout is compatible with sensor interface standard, easy to connect various analog sensor modules
- Onboard input/output interface via screw terminals, for connecting analog/digital signal

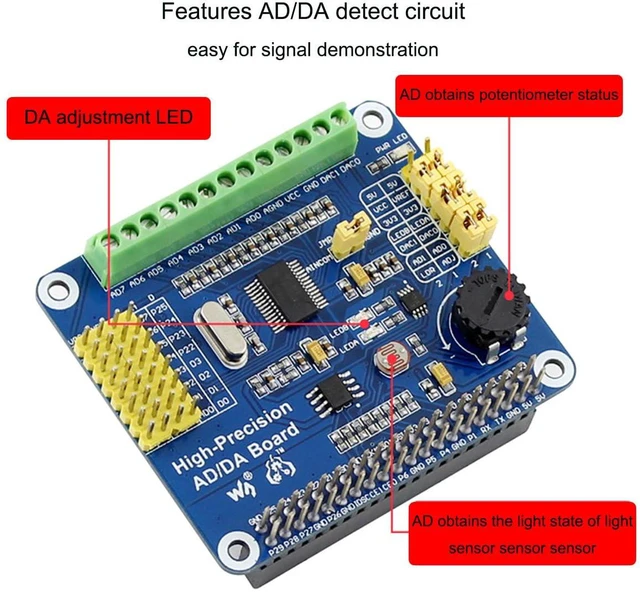

- Features AD/DA detect circuit, easy for signal demonstration
+
+
Overview
Specs
Reviews
Raspberry Pi AD/DA Expansion Board is designed for Raspberry Pi and Jetson nano
Onboard ADS1256 chip, 8ch 24bit high-precision ADC (4ch differential input), 30ksps sampling rate. Onboard DAC8552 chip, 2ch 16bit high-precision DAC
Onboard input interface via pinheaders, for connecting analog signal. The pinout is compatible with sensor interface standard, easy to connect various analog sensor modules
Onboard input/output interface via screw terminals, for connecting analog/digital signal
Features AD/DA detect circuit, easy for signal demonstration
Onboard ADS1256 chip, 8ch 24bit high-precision ADC (4ch differential input), 30ksps sampling rate. Onboard DAC8552 chip, 2ch 16bit high-precision DAC
Onboard input interface via pinheaders, for connecting analog signal. The pinout is compatible with sensor interface standard, easy to connect various analog sensor modules
Onboard input/output interface via screw terminals, for connecting analog/digital signal
Features AD/DA detect circuit, easy for signal demonstration
