1.9inch LCD Display Module, 170x320 Resolution 262K Colorful IPS Screen Display,
- 1.9inch LCD Display Module,170×320 resolution, 262K colors, clear and colorful displaying effect. The built-in driver of the 1.9-inch LCD Module is ST7789V2, which is the LCD controller with 240 x RGB x 320, and the resolution of the LCD is 170 (H) RGB × 320 (V). Moreover, the internal RAM of the LCD is not fully used as it can be initialized as a portrait and horizontal screen
- This LCD supports the input RGB format of 12 bits, 16 bits, and 18 bits, that is, RGB444, RGB565, and RGB666. The demo used here is RGB565, which is the RGB format we generally used. As the LCD adopts 4-wire SPI, it is not only faster in communication, but also saves more GPIO headers

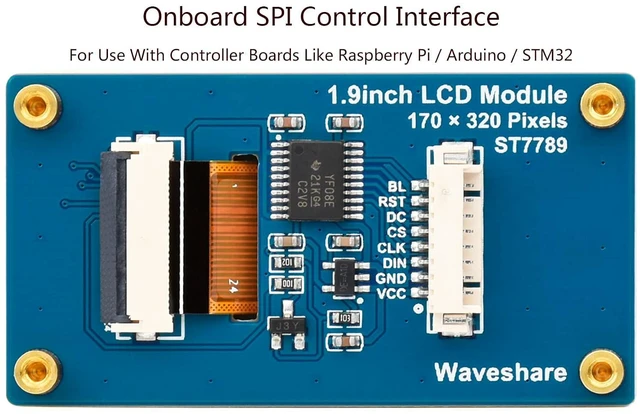

- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
- Onboard Voltage Translator Compatible With 3.3V / 5V Power Input. Note: (Please ensure that the power supply voltage is consistent with the logic voltage, otherwise it will not work normally.)
- Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
+
+
Overview
Specs
Reviews
1.9 inch LCD Display Module, 170×320 resolution, 262K colors, clear and colorful displaying effect. The built-in driver of the 1.9 -inch LCD Module is ST7789V2, which is the LCD controller with 240 x RGB x 320, and the resolution of the LCD is 170 (H) RGB × 320 (V). Moreover, the internal RAM of the LCD is not fully used as it can be initialized as a portrait and horizontal screen
This LCD supports the input RGB format of 12 bits, 16 bits, and 18 bits, that is, RGB444, RGB565, and RGB666. The demo used here is RGB565, which is the RGB format we generally used. As the LCD adopts 4-wire SPI, it is not only faster in communication, but also saves more GPIO headers
SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
Onboard Voltage Translator Compatible With 3.3V / 5V Power Input.
Note: (Please ensure that the power supply voltage is consistent with the logic voltage, otherwise it will not work normally. )
Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
This LCD supports the input RGB format of 12 bits, 16 bits, and 18 bits, that is, RGB444, RGB565, and RGB666. The demo used here is RGB565, which is the RGB format we generally used. As the LCD adopts 4-wire SPI, it is not only faster in communication, but also saves more GPIO headers
SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
Onboard Voltage Translator Compatible With 3.3V / 5V Power Input.
Note: (Please ensure that the power supply voltage is consistent with the logic voltage, otherwise it will not work normally. )
Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
