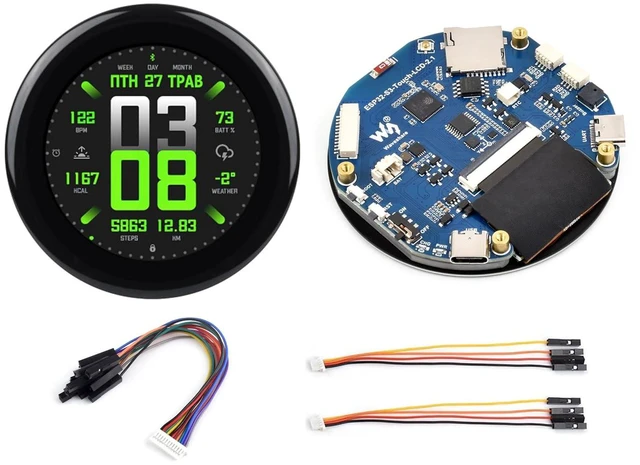

ESP32-S3 with 2.1inch Capacitive Touch Round Display Development Board, 480x480,
- ESP32-S3 with 2.1inch Capacitive Touch Round Display Development Board (with 2.5D Curved Touch Panel), integrates high-capacity Flash and PSRAM. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz W-i-F-i (802.11 b/g/n) and Blue-too-th 5 (LE), with onboard antenna. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

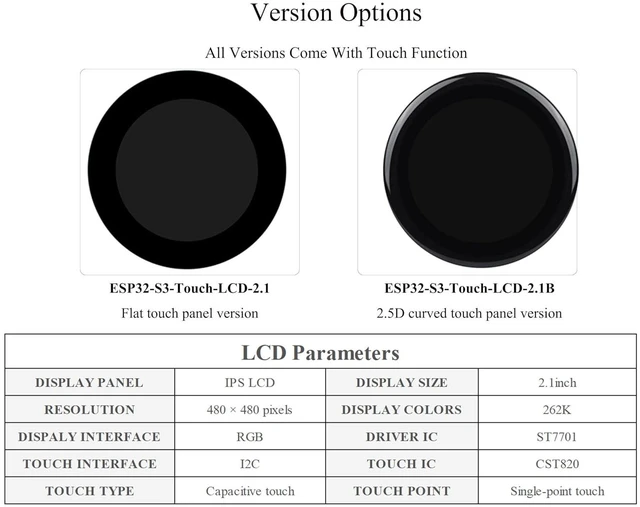

- Onboard Onboard 2.1inch capacitive touch display, 480x480 resolution, 262K color, can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications

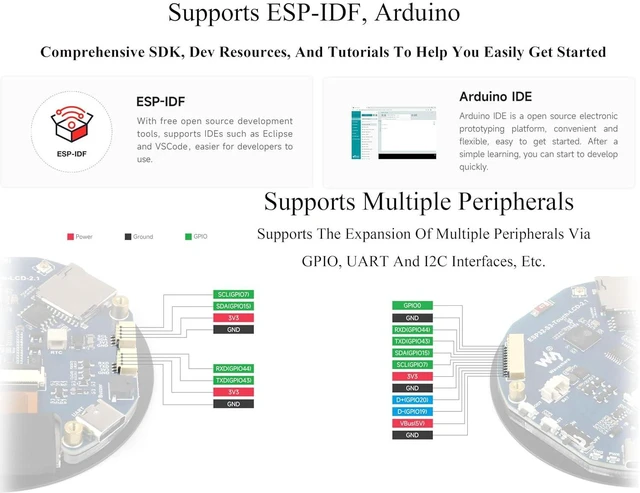

- Supports touch control via I2C interface, with interrupt support. Adapting UART, I2C and some IO interfaces, integrates full-speed USB port

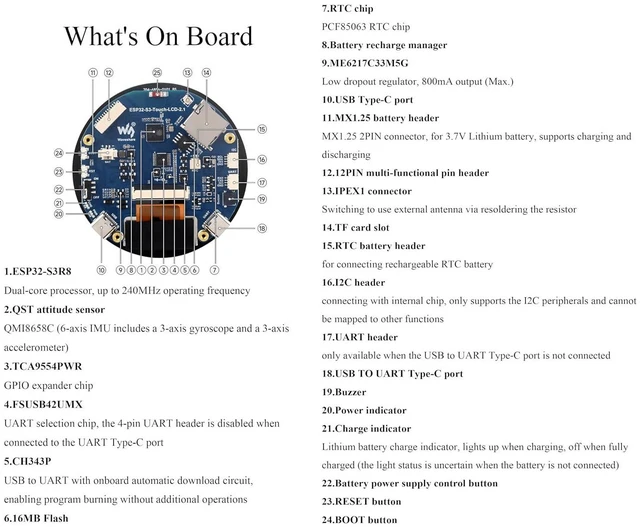

- Onboard QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
+
+
Overview
Specs
Reviews

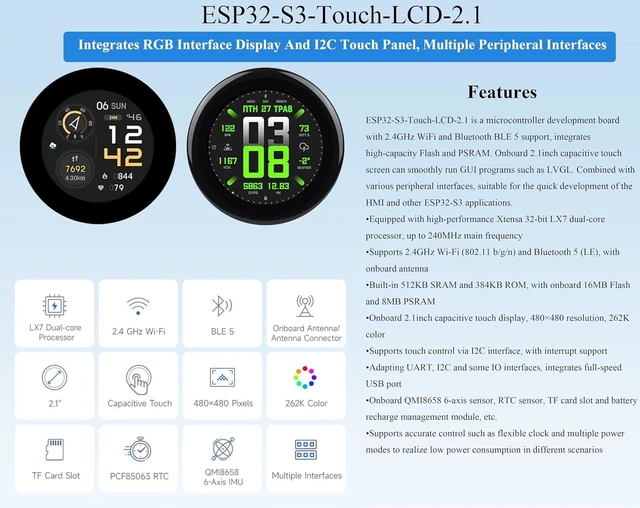

ESP32-S3 with 2.1 inch Capacitive Touch Round Display Development Board (with 2.5D Curved Touch Panel), integrates high-capacity Flash and PSRAM. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GH z W-i-F-i ( 802.11 b/g/n) and Blue-too-th 5 (LE), with onboard antenna. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
Onboard Onboard 2.1 inch capacitive touch display, 480x480 resolution, 262K color, can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications
Supports touch control via I2C interface, with interrupt support. Adapting UART, I2C and some IO interfaces, integrates full-speed USB port
Onboard QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Supports 2.4GH z W-i-F-i ( 802.11 b/g/n) and Blue-too-th 5 (LE), with onboard antenna. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
Onboard Onboard 2.1 inch capacitive touch display, 480x480 resolution, 262K color, can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications
Supports touch control via I2C interface, with interrupt support. Adapting UART, I2C and some IO interfaces, integrates full-speed USB port
Onboard QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
