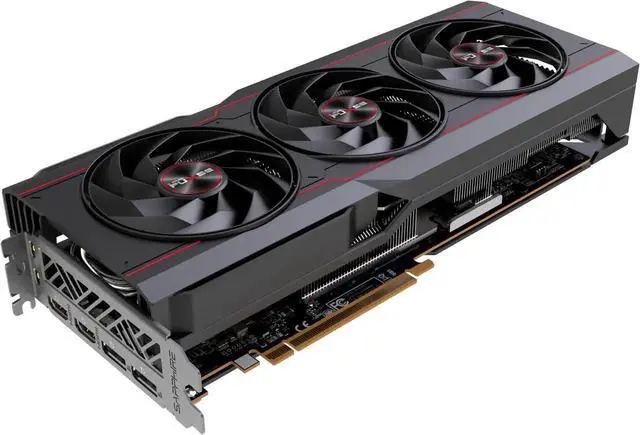

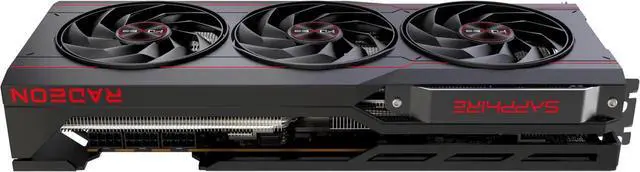

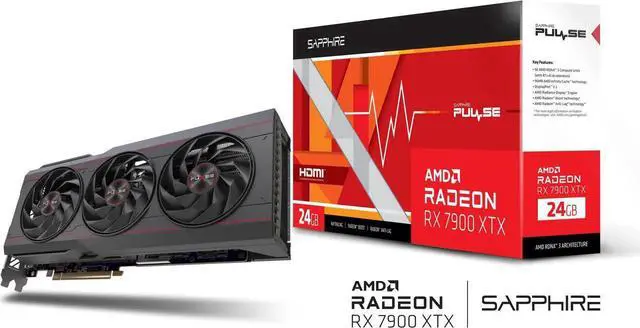

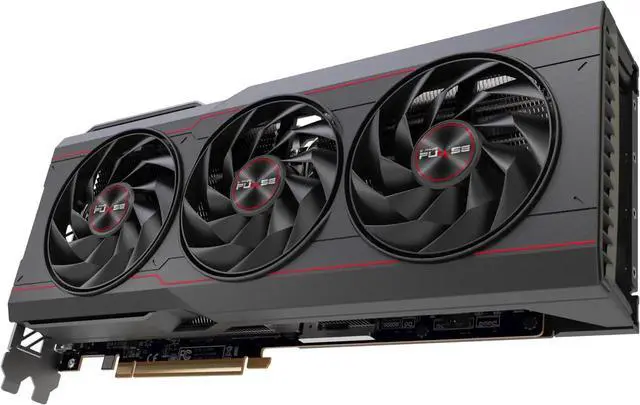

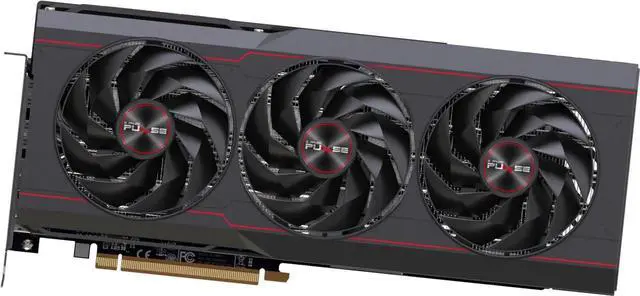

SAPPHIRE Tech Pulse Radeon RX 7900 XTX 24GB Graphics Card, 384 bit GDDR6 PCI Express 4.0 x16 ATX Video Card

Core
AMD Radeon RX 7900 XTX Graphics Card

5nm GPU

AMD RDNA 3 Architecture

Core Frequency
Acceleration Up to 2525 MHz
Gaming Clock Up to 2330 MHz



The boost clock frequency is the maximum frequency achievable on GPUs performing bursty workloads. The achievability, frequency, and sustainability of the boost clock will vary based on several factors including, but
not limited to: thermal conditions and variations in applications and workloads.

330

Game Clock refers to the GPU clock for general gaming applications, while TGP (Total Graphics Power) will vary depending on the game being played.
Streaming Processor Count
6144
Compute Units
96 CU (with RT+AI Accelerators)
Infinity Cache
96MB
Ray Accelerators
96MB Ray Accelerators
Video Memory
24GB/384 bit GDDR6
Memory Frequency
20 Gbps (Effective)
Multi-Display
Up to 4 Displays
Resolutions: HDMI: 7680×4320
HDMI: 7680×4320
DisplayPort 2.1: 7680×4320
Interface Type
PCI-Express 4.0 x16

Interface
2x HDMI
2x DisplayPort


BIOS Support
Single UEFI
Recommended Games
4K
Sapphire Features
Digital Power Design
Ultra High Efficiency Aluminum Capacitors
Fuse Protection Design
Tri-X Triple Fan Cooling Technology
High TG Copper PCB
Optimized composite heat pipes
Intelligent Fan Control
Precise Fan Control

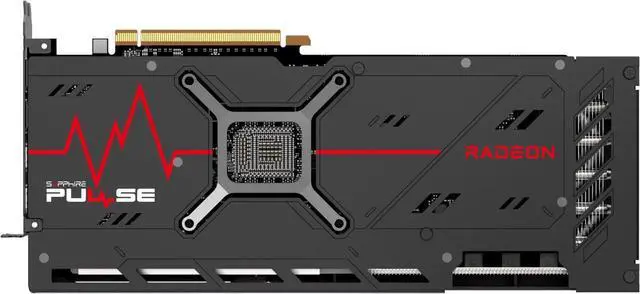

Metal Backplate
Dual Ball Bearing
Folded Blade Design
TriXX Software Support
TriXX Boost
Graphics Card Support Bracket
FEATURES
AMD RDNA 3 Architecture
96 AMD RDNA 3 ops (with RT+AI Accelerators)
96MB AMD Infinity Cache Technology
DisplayPort 2.1
AMD Radiance Display Engine
AMD Radeon Boost Technology
AMD Radeon Anti-Lag* Technology
24GB GDDR6 on 384-Bit Memory Bus
PCI® Express 4.0 ready
AMD FidelityFX Technology
AMD FidelityFX Super Resolution Technology
Microsoft® DirectX® 12 Ultimate
Microsoft® DirectStorage
Vulkan® Optimized
AMD smart technologies
AMD Software: Adrenalin Edition application
AMD Noise Suppression
AMD Privacy View
AMD Radeon Super Resolution technology
AMD Link
AMD Freesync technology
Cooling System
3 Fans

Card Size
2.7 slot, ATX
LxWxH: 313 (L) x133, 75 (B) x 52.67 (H) mm

Power Consumption
370W Total Board Power
Operating System: Linux®, Windows® 10, Windows® 7, Windows® 8, Windows® 9
Linux®, Windows® 10, Windows 11, 64Bit System Requirements

Requirements/External Power Supply
Minimum 800 Watt Power Supply
3 x 8-pin power cables.
One x16-channel PCI
Express® slot on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
