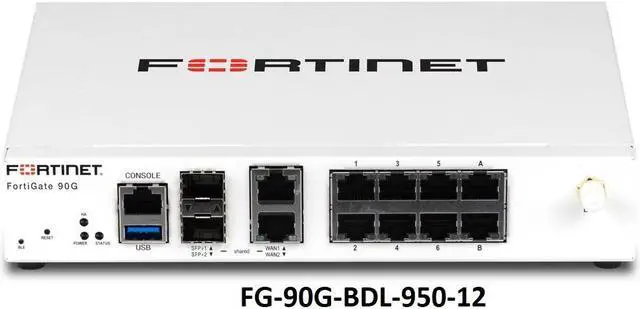

Fortinet FortiGate FG-90G-BDL-950-12 Hardware + 1 year FortiCare Premium UTP
- FortiGate 90G FortiGate 91G
- Hardware Specifications
- 10/5/2.5/GE RJ45 or 10GE/GE SFP+/ SFP Shared Media pairs 2 2
- GE RJ45 Internal Ports 8 8
- Wireless Interface - -
- USB Ports 1 1
- Console (RJ45) 1 1
- Internal Storage - 1 x 120 GB SSD
- Trusted Platform Module (TPM) Yes Yes
- Bluetooth Low Energy (BLE) Yes Yes
- System Performance* Enterprise Traffic Mix
- IPS Throughput 4.5 Gbps
- NGFW Throughput 2.5 Gbps
- Threat Protection Throughput 2.2 Gbps
- System Performance and Capacity
- Firewall Throughput (1518 / 512 / 64 bytes UDP packets) 28 / 28 / 27.9 Gbps
- Firewall Latency (64 bytes UDP packets) 3.23 s
- Firewall Throughput (Packets Per Second) 41.85 Mpps
- Concurrent Sessions (TCP) 1.5 M
- New Sessions/Second (TCP) 124 000
- Firewall Policies 5000
- IPsec VPN Throughput (512 bytes) 25 Gbps
- Gateway-to-Gateway IPsec VPN Tunnels 200
- Client-to-Gateway IPsec VPN Tunnels 2500
- SSL-VPN Throughput 1.4 Gbps
- Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 200
- SSL Inspection Throughput (IPS, avg. HTTPS) 2.6 Gbps
+
+
Overview
Specs
Reviews
FortiGate 90G FortiGate 91G
Hardware
10/5/ 2.5 /GE RJ45 or 10GE/GE SFP+/ SFP Shared Media pairs 2 2
GE RJ45 Internal Ports 8 8
Wireless Interface - -
USB Ports 1 1
Console (RJ45) 1 1
Internal Storage - 1 x 120 GB SSD
Trusted Platform Module (TPM) Yes Yes
Bluetooth Low Energy (BLE) Yes Yes
System Performance* Enterprise Traffic Mix
IPS Throughput 4.5 Gbps
NGFW Throughput 2.5 Gbps
Threat Protection Throughput 2.2 Gbps
System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 bytes UDP packets) 28 / 28 / 27.9 Gbps
Firewall Latency (64 bytes UDP packets) 3.23 s
Firewall Throughput (Packets Per Second) 41.85 Mpps
Concurrent Sessions (TCP) 1.5 M
New Sessions/Second (TCP) 124 000
Firewall Policies 5000
IPsec VPN Throughput (512 bytes) 25 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 200
Client-to-Gateway IPsec VPN Tunnels 2500
SSL-VPN Throughput 1.4 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 200
SSL Inspection Throughput (IPS, avg. HTTPS) 2.6 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 300 000
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 390 000
Application Control Throughput (HTTP 64K) 6.7 Gbps
CAPWAP Throughput (HTTP 64K) 23.6 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiSwitches Supported 24
Maximum Number of FortiAPs (Total / Tunnel Mode) 96 / 48
Maximum Number of FortiTokens 500
High Availability Configurations Active-Active, Active-Passive, Clustering
Dimensions
Height x Width x Length (inches) 1.65 x 8.5 x 7.0
Height x Width x Length (mm) 42 x 216 x 178
Weight 2.47 lbs ( 1.12 kg)
Form Factor Desktop
Operating Environment and Certifications
Input Rating 12V DC, 5A (dual redundancy optional)
Power Required (Redundancy Optional) Powered by up to 2 External DC Power Adapters (1 adapter included), 100240V AC, 50/60 Hz
Power Supply Efficiency Rating 80Plus Compliant
Maximum Current 115Vac/ 0.4A, 230Vac/ 0.2A
Power Consumption (Average/Maximum) 19.9 W / 20.53 W 22.4 W / 23.5 W
Heat Dissipation 70.0073 BTU/hr 80, 135 BTU/hr
Operating Temperature 32°104°F (0°40°C)
Storage Temperature -31°158°F (-35°70°C)
Humidity 1090% non-condensing
Noise Level 21.73 dBA
Operating Altitude Up to 10 000 ft (3048 m)
Compliance FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications USGv6/IPv6
