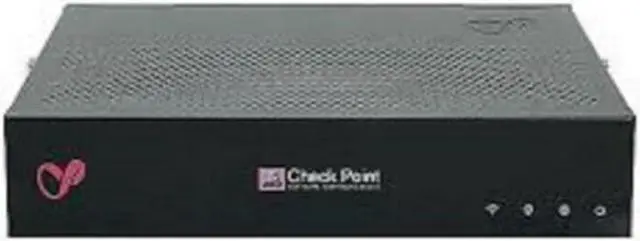

CHECK POINT SG1590 SECURITY switch + 1 YEAR NGTP subscription Premium support CPSB-NGTP-SS-PREM-1590-1Y

CPSB-NGTP-SS-PREM-1590-1Y Next Generation Threat Prevention (NGTP) Package subscription & Direct Premium support for 1590 Appliance

Enterprise Testing Conditions

Threat Prevention (Mbps) 1

660

Next Generation Firewall (Mbps) 2

1, 300

IPS Throughput (Mbps) 1, 400

Firewall Throughput (Mbps) 1, 800

RFC 3511, 2544, 2647, 1242 Performance (LAB)

Firewall 1518 Byte UDP Packets (Mbps) 4, 000

VPN AES-128 Throughput (Mbps) 2, 600

Connections per Second 21, 000

Concurrent Connections 500, 000

Software

Security

Firewall, VPN, User Awareness, QoS, Application Control, URL Filtering, IPS, Anti-Bot, Antivirus, Anti-Spam and

SandBlast Threat Emulation (sandboxing)

Unicast, Multicast Routing OSPFv2, BGPv4 and 4++, RIP, PIM (SM, DM, SSM), IGMP

Mobile Access License (Users) 200

Hardware

WAN Port 1x 10/100/1000Base-T RJ-45 port

DMZ Port 1x 10/100/1000Base-T RJ-45 / 1x 1000BaseF SFP port (transceiver not included)
LAN Ports 8x 10/100/1000Base-T RJ-45 ports
Wi-Fi (optional) 802.11 b/g/n and 802.11 n/ac wave II MIMO 4x4
Radio Band (association rate) Two radio bands concurrent: 2.4GH z (max 450 Mbps) and 5GHz (max 1, 700 Mbps)
Console Port 1x USB-C
USB Port 1x USB 3.0
SD Card Slot Micro-SD slot
Dimensions
Enclosure Desktop
Dimensions (W x D x H) 210 x 170 x 42 mm, 8.3 x 6.7 x 1.7 in.
Weight 0.87 kg ( 1.9 lbs. )
Environment
Operating / Storage 0ºC ~ 40ºC / -45ºC ~ 60ºC (5~95%, non-condensing)
Power Requirements
AC Input 110 240VAC, 50 60 Hz
Power Supply Rating 12V/ 3.3A 40W power adapter (non-Wi-Fi), 12V/5A 60W power adapter (Wi-Fi)
Power Consumption (Max) 26.01 (non-Wi-Fi); 31.28W (Wi-Fi)
Heat Dissipation 88.70 (non-Wi-Fi); 100.66 (Wi-Fi)
Certifications
Safety / Emissions / Environment
UL/c-UL 62368-1, IEC 62368-1 CB / EMC, EMI EN55024, EN55032 Class B, VCCI, AS, NZS CISPR 32, IC ICES 03, RSS247,
FCC: Part 15 Class B, C, E / RoHS, REACH, WEEE
