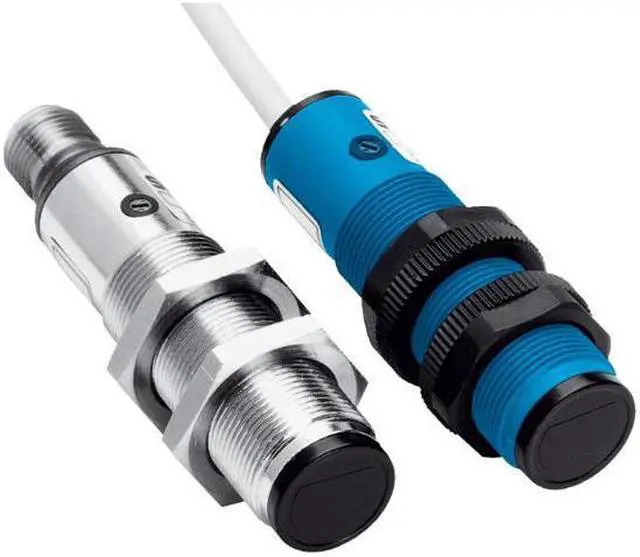

SICK VTE18-3N8740 Photoelectric proximity sensor ,NPN ,New
Limited time offer, ends 01/29 By Tech Frontier Electronics
- SICK VTE18-3N8740 Photoelectric proximity sensor ,NPN ,New
+
+
Overview
Specs
Reviews
FEATURES Sensor/ detection principle Photoelectric proximity sensor Dimensions (W x H x D) 78 mm Housing design (light emission) Cylindrical, straight Sensing range max. 10 mm... 800 mm 1) Sensing range 10 mm... 700 mm 1) Type of light Infrared light Light source LED Angle of dispersion 2.8 ° Adjustment Potentiometer MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC Ripple = 10 % Power consumption = 30 mA 1) Switching output NPN Switching mode Dark switching Response time = 2 ms 2) Connection type Male connector M12, 4-pin Housing material Plastic, Plastic, Plastic Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C.
.. +70 °C Ambient storage temperature –25 °C... +70 °C UL File No. NMFT2. E175606
.. +70 °C Ambient storage temperature –25 °C... +70 °C UL File No. NMFT2. E175606
