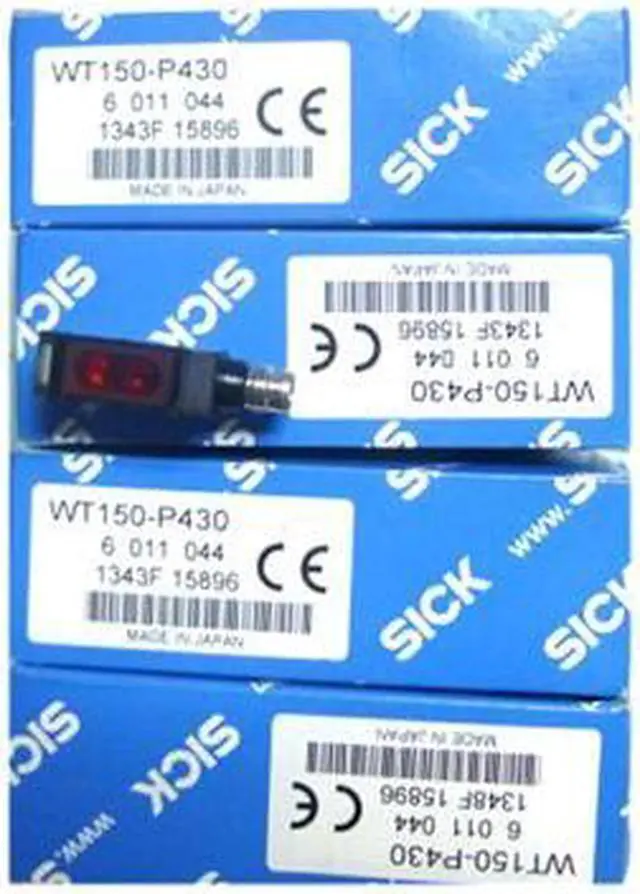

SICK WT150-P430 Photoelectric proximity sensor ,PNP,New

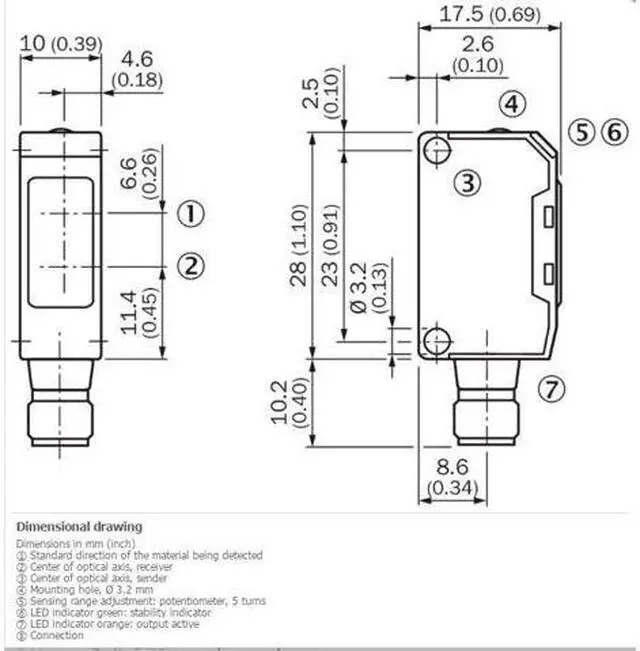

FEATURES Sensor/ detection principle Photoelectric proximity sensor, energetic Dimensions (W x H x D) 10 mm x 28 mm x 17.5 mm Housing design (light emission) Rectangular Sensing range max. 10 mm... 250 mm 1) Sensing range 10 mm... 200 mm Type of light Visible red light Light source LED 2) Angle of dispersion Approx. 6° Adjustment Potentiometer, 270° MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple ± 10 % 2) Power consumption 20 mA 3) Switching output PNP Switching mode Light/dark switching Switching mode selector Selectable via L/D control cable Output current Imax.

= 100 mA Response time = 0.5 ms 4) Switching frequency 1, 000 Hz 5) Connection type Male connector M8, 4-pin Circuit protection A 6) B 7) C 8) D 9) Protection class II Weight 7 g Housing material Plastic, ABS Optics material Plastic, PC Enclosure rating IP67 Items supplied BEF-W150-A mounting bracket Ambient operating temperature –25 °C... +55 °C Ambient storage temperature –40 °C... +75 °C UL File No. NRNT2. E128350 & NRNT8. E128350
