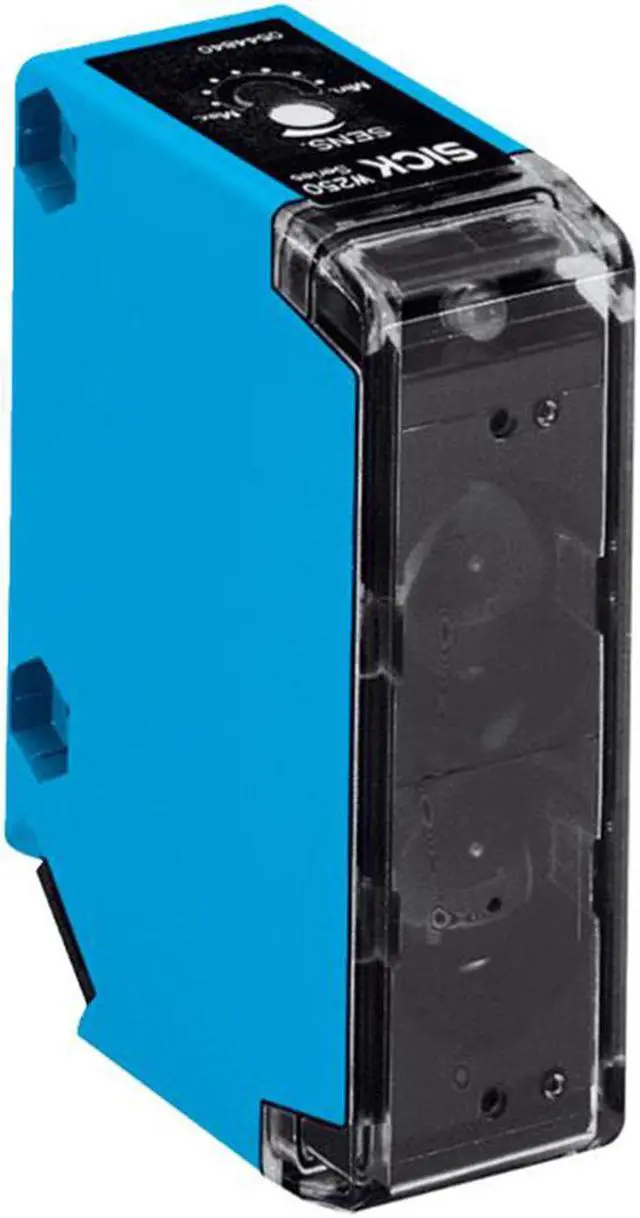

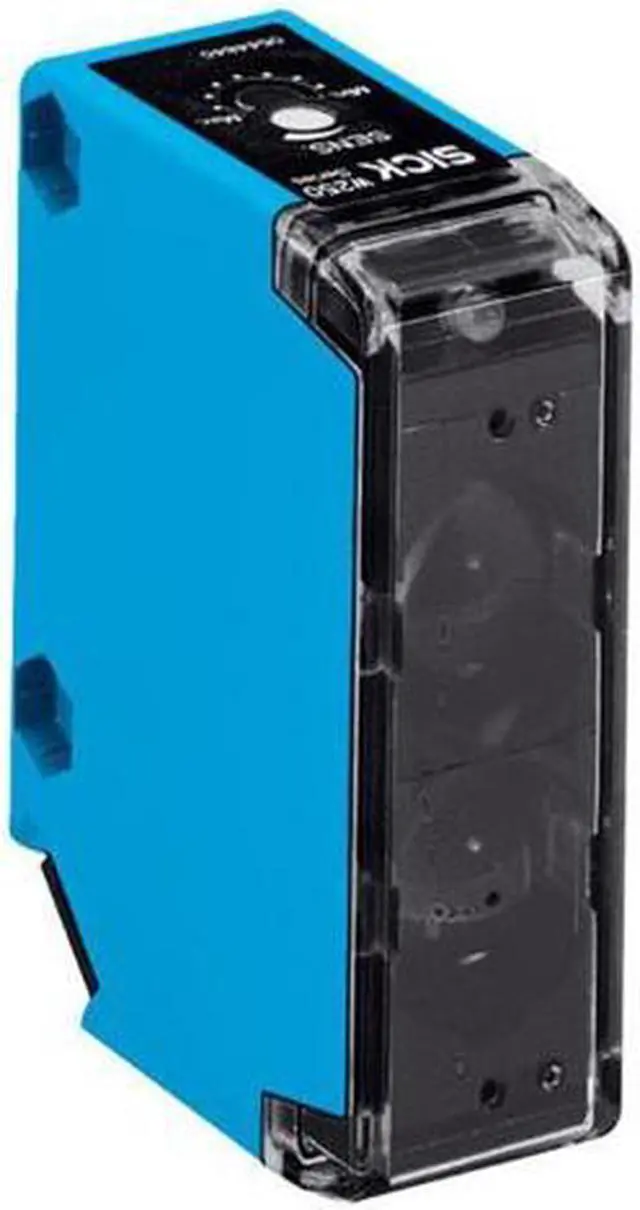

SICK WL250-S132 Photoelectric retro-reflective sensor,New

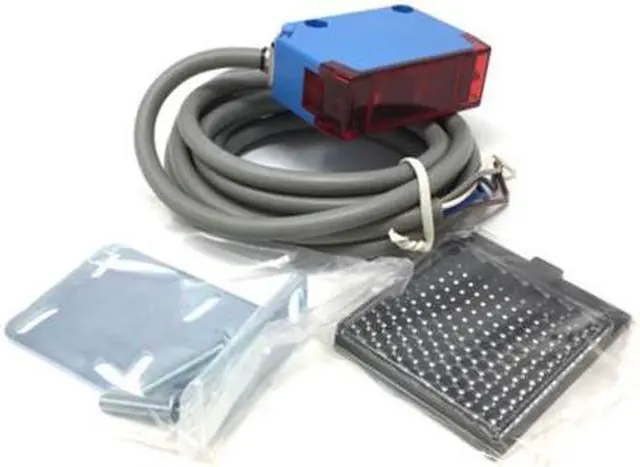

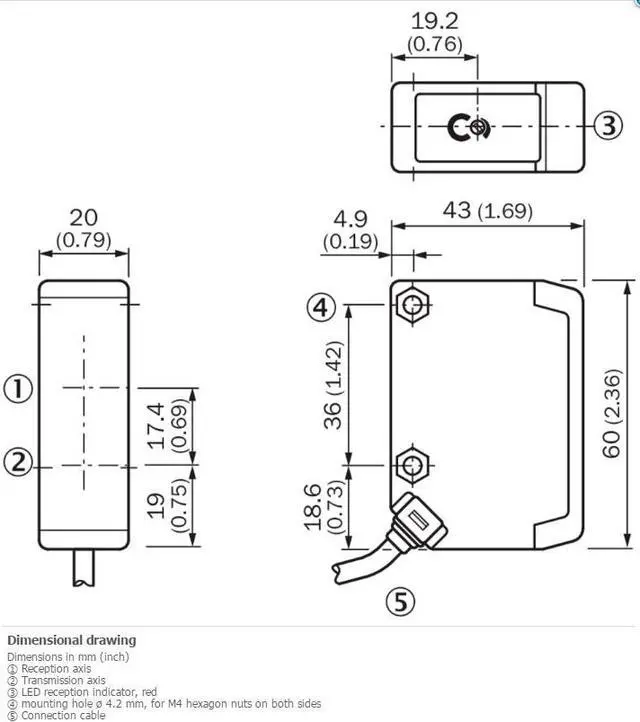

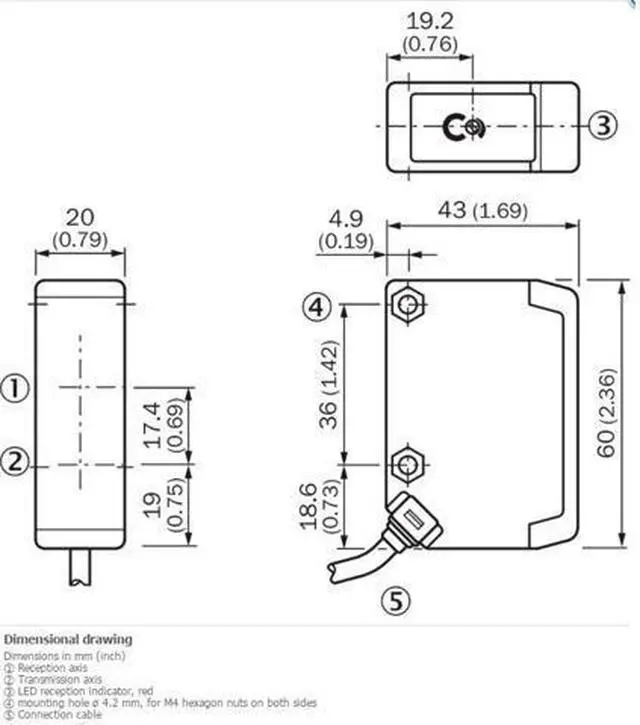

FEATURES Sensor/ detection principle Photoelectric retro-reflective sensor Dimensions (W x H x D) 20 mm x 60 mm x 43 mm Housing design (light emission) Rectangular Sensing range max. 0.01 m... 13.5 m 1) Sensing range 0.01 m... 8 m 2) 0.01 m... 11 m 1) Type of light Visible red light Light source LED 3) Light spot size (distance) Ø 400 mm (8 m) Angle of dispersion 2.5 ° Adjustment Potentiometer, 2 turns 4) MECHANICS/ELECTRONICS Supply voltage 12 V DC... 240 V DC 1) 24 V AC/DC... 240 V AC/DC 1) Power consumption = 2 VA Switching output Relay, electrically isolated 2) Output function Change-over contacts Switching mode Light switching 2) Switching current (switching voltage) 3 A (240 V AC) 3 A (30 V DC) Response time = 15 ms Switching frequency 33 Hz 3) Connection type Cable, 5-wire, 2 m 4) Cable material PVC Conductor cross-section 0.76 mm² Cable diameter Ø 6.3 mm Circuit protection A 5) C 6) Protection class II 7) Weight 160 g Polarisation filter? Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 Items supplied Reflector P250, BEF-W250 mounting bracket Usage category AC-15, DC-13, according to EN 60947-1 Ambient operating temperature –25 °C.

.. +55 °C Ambient storage temperature –40 °C... +70 °C UL File No. NRNT2. E128350 & NRNT8. E128350
