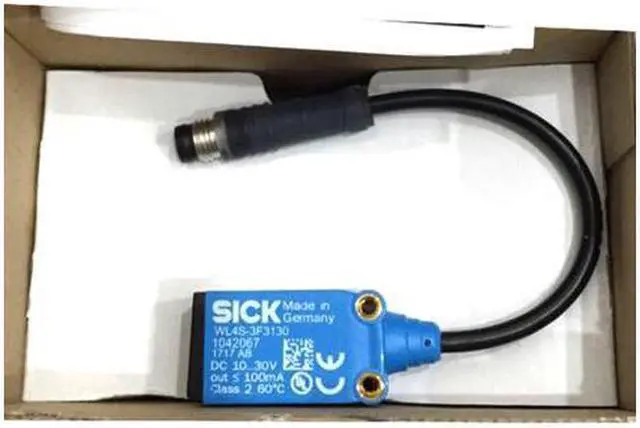

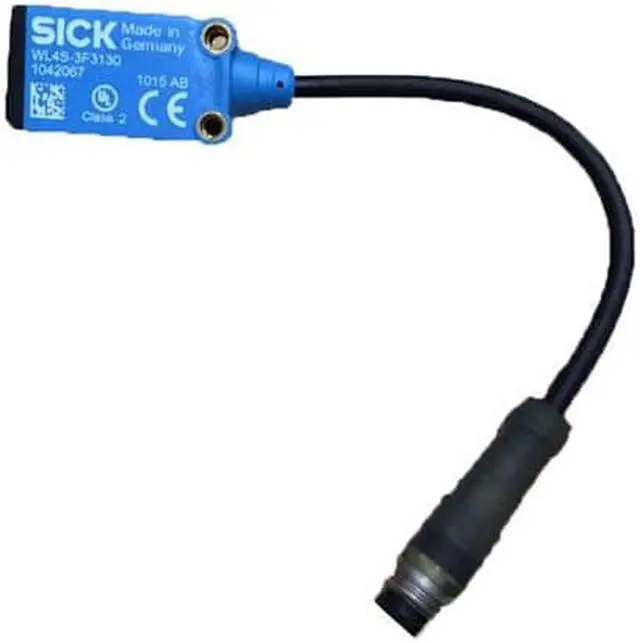

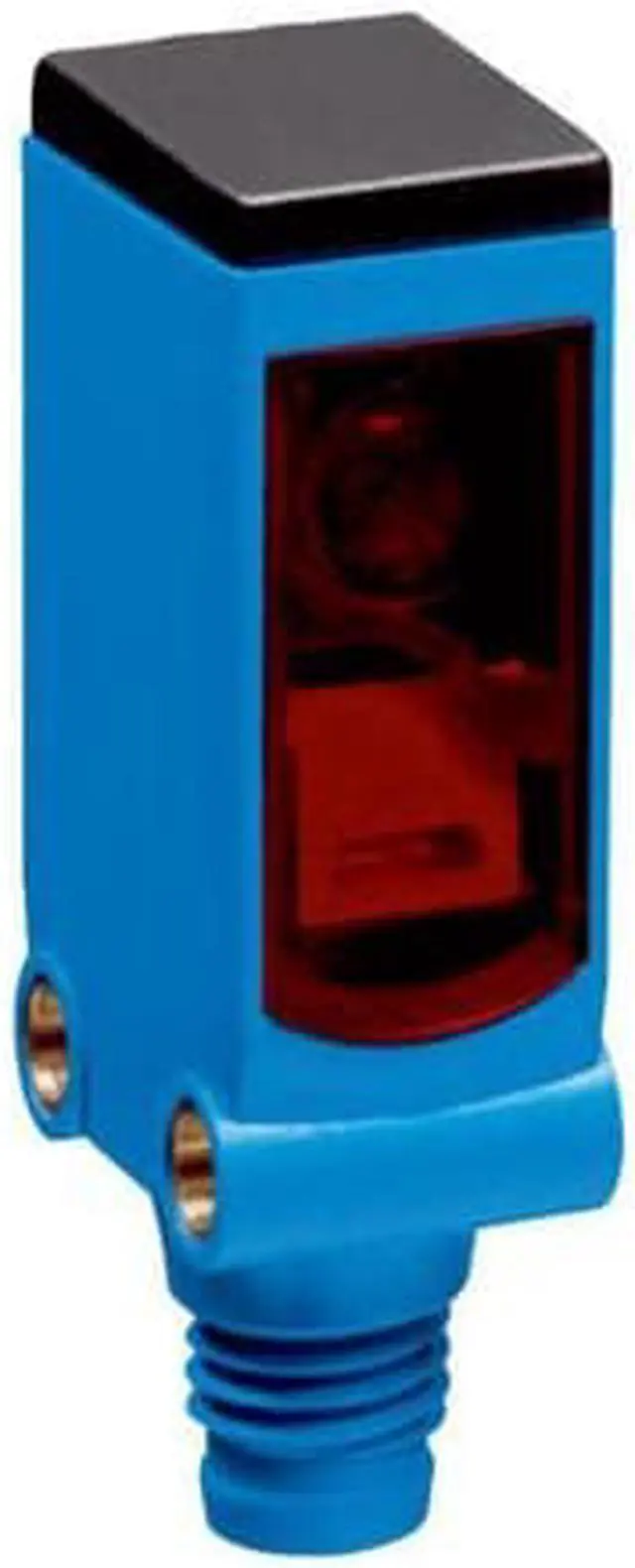

SICK WL4S-3F3130 Miniature Photoelectric Sensors PNP,New

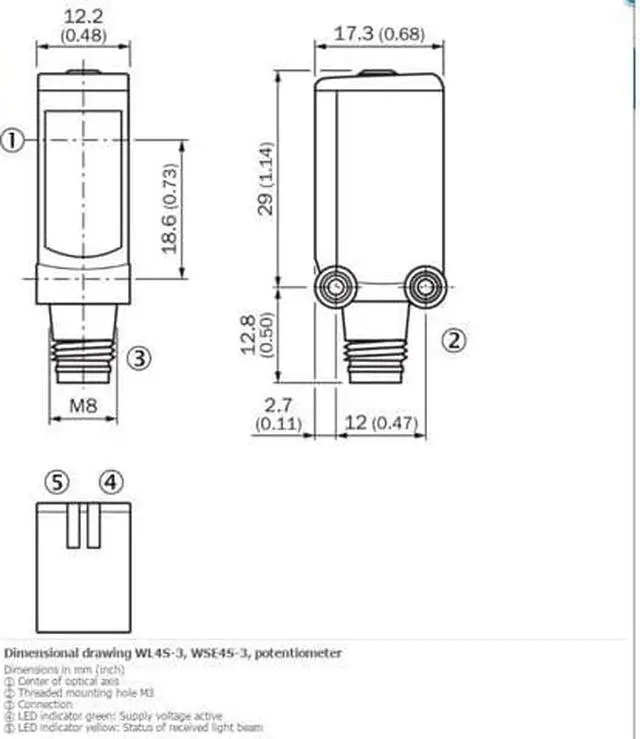

FEATURES Sensor/ detection principle Photoelectric retro-reflective sensor, autocollimation Dimensions (W x H x D) 12.2 mm x 41.8 mm x 17.3 mm Housing design (light emission) Rectangular Sensing range max. 0 m... 4 m 1) Sensing range 0 m... 2.5 m 1) Type of light Visible red light Light source PinPoint LED 2) Light spot size (distance) Ø 45 mm ( 1.5 m) Wave length 650 nm Adjustment None MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple < 5 Vpp 2) Power consumption 20 mA 3) Switching output PNP Switching mode Dark switching Output current Imax.

= 100 mA Response time < 0.5 ms 4) Switching frequency 1, 000 Hz 5) Connection type Cable with connector M8, 3-pin, 100 mm 6) Cable material PVC Conductor cross-section 0.14 mm² Cable diameter Ø 3.4 mm Circuit protection A 7) C 8) D 9) Protection class III Weight 30 g Polarisation filter? Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 IP66 Ambient operating temperature –40 °C... +60 °C Ambient storage temperature –40 °C... +75 °C UL File No. NRKH. E181493 & NRKH7.

E181493
