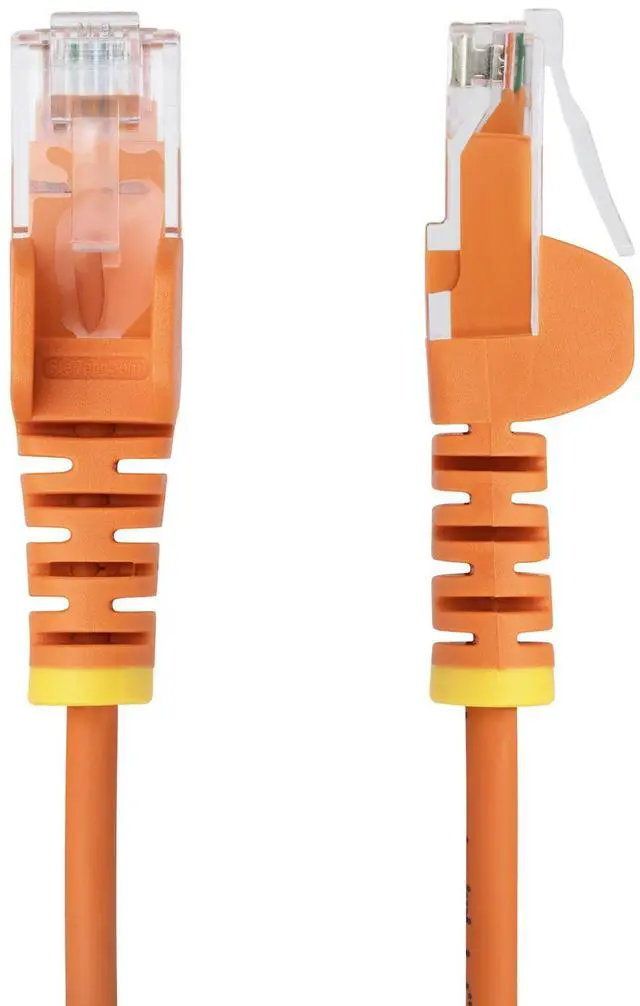

StarTech 30ft Orange Slim CAT6 Ethernet Cable, Snagless, 100W PoE, UTP, LSZH, 28AWG Pure Bare Copper Wire, Slim RJ45 Network Patch Cord Model N6PAT30ORS
- Information
- Warranty
- Lifetime
- Connector(s)
- Connector A
- 1 - RJ-45
- Connector B
- 1 - RJ-45
- Environmental
- Humidity
- 10% ~ 80%
- Operating Temperature
- 10°C ~ 60°C (50°F to 140°F)
- Storage Temperature
- -20°C ~ 60°C (-4°F to 140°F)
- Hardware
- Number of Conductors
- 4 pair UTP
- Connector Plating
- Gold
- Fire Rating
- LSZH Rated (Low Smoke Zero Halogen)
- Cable Type
- Snagless
- Wiring Standard
- TIA/EIA-568-B.1-2001 T568B
- Packaging Information
- Package Height
- 0.4 in [1.0 cm]
- Package Length
- 7.9 in [20.0 cm]
- Shipping (Package) Weight
- 6.0 oz [171.0 g]
- Package Width
- 8.7 in [22.0 cm]
- Performance
- Maximum Data Transfer Rate
- 10 Gbps
- Cable Rating
- CAT6 - 250 MHz
- Physical Characteristics
- Color
- Orange
- Product Height
- 0.5 in [13.5 mm]
- Product Length
- 360.6 in [9160 mm]
- Weight of Product
- 5.4 oz [152 g]
- Product Width
- 0.4 in [11.4 mm]
- Connector Style
- Straight
- Wire Gauge
- 28 AWG
- Conductor Type
- Stranded Copper
- Cable Length
- 30.0 ft [9.1 m]
- Cable OD
- 0.1 in [3.6 mm]
- What's in the Box
- Included in Package
- 1 - Slim Cat6 Ethernet Cable - LSZH
+
+
Overview
Specs
Reviews
Route Slim Cat6 cables through high density installations for optimal flexibility and airflow
Product ID: N6PAT30ORS
- SLIM CAT6 CABLE: Streamline cabling in dense setups using Slim Cat6 Cables; 36% slimmer diameter enables greater flexibility than standard Cat6 cabling; Supports Power over Ethernet (PoE++) up to 100W; Low Near-End Crosstalk (NEXT) and Return Loss (RL)
- QUALITY CONSTRUCTION: Snagless 50-micron gold-plated contacts enable a precise fit to minimize signal loss; 28AWG Pure Bare Copper wire delivers consistent power and throughput; Low-Smoke Zero Halogen (LSZH) jacket is flexible for routing in tight spaces
- SAFETY AND RELIABILITY: Compliant with ANSI/TIA-568-C.2 standards for guaranteed Cat6 performance; LSZH jacket is safe for enclosed/poorly ventilated spaces and emits low toxic fumes if combusted; PoE++ specifications complies with IEEE 802.3bt Type 4
- APPLICATIONS: Ideal for high-density network closets and cable management panels; Slim Cat6 cables enhance accessibility when troubleshooting and promote improved airflow between devices; Connect reliably to PoE devices such as IP or boardroom cameras
- SPECS: 30-foot; Orange; Snagless RJ45; 10 Gbps; 250MHz; 100W PoE++; UTP; Gold-Plated Contacts; LSZH Jacket; 28AWG Pure Bare Copper Wire; 3.6mm (0.14in) Cable O.D.; Fluke Tested; Supports Cat 6 and Cat 5/5e
