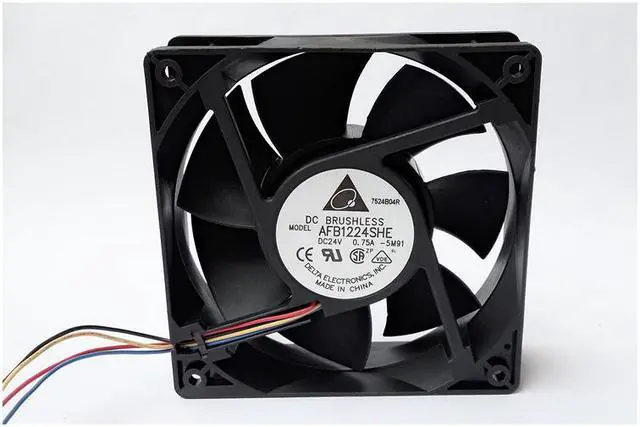

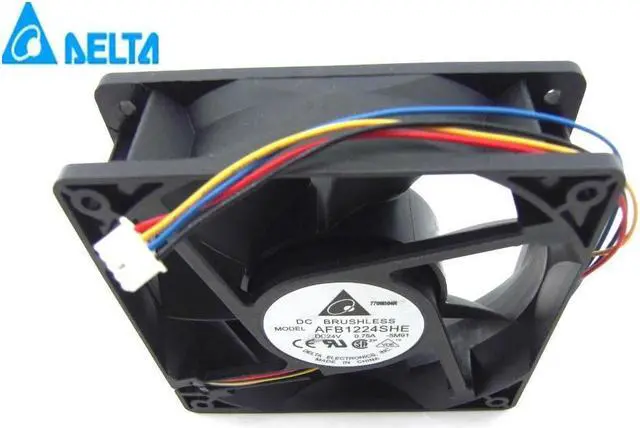

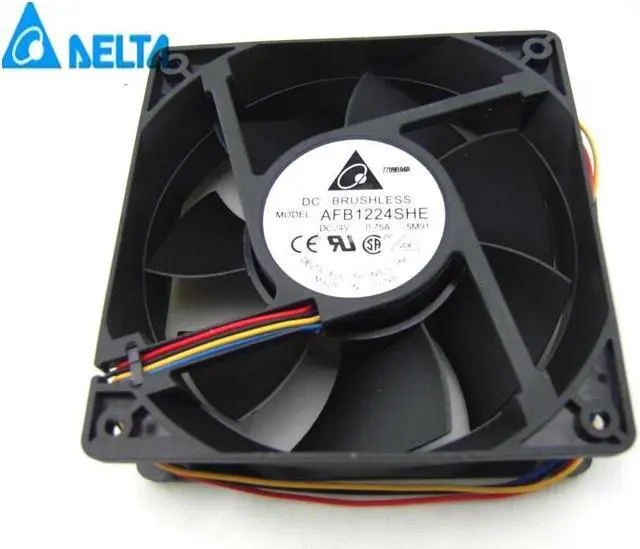

Original Delta AFB1224SHE DC24V 0.75A 4 Wires 4 Pins PWM Axial Fan Inverter cooling fan
- 120mm
- 5000-5499 RPM >80 CFM
- 2 Ball
- > 50 dBA
+
+
Overview
Specs
Reviews
DELTA AFB1224SHE Brand: DELTA fan
Model: AFB1224SHE fan
Size: 120 x 120 x 38mm
Voltage: 24VDC
Scope: 14~ 27.6VDC
Current: 0.75A
Power: 18W
Air volume: 195CFM
Revolutions: 5100RPM
Noise: 58.5 dB (A)
Terminals: 4-wire 4-pin
Fan frame: injection molding at once, PBT + 30% glass fiber + VO flame retardant.
Wind blade: injection molding at one time, PBT + 30% glass fiber + VO flame retardant.
Fan rotation: from the fan blade direction to counter clockwise.
Operating temperature: - 10 degrees Celsius to + 60 degrees Celsius.
Storage temperature: - 40 degrees Celsius to + 70 degrees Celsius.
Bearing: High precision ball bearing power supply range: rated power supply positive and negative 15% insulation resistance: greater than 500
MHz Withstand voltage: leakage current 0.5 mA500V / 1 minutes.
Working life: 80, 000 hours of sensitive temperature sensor is built in when ambient temperature is 25 degrees. It can realize the change of speed and current with temperature, and make the heat dissipation effect reach the best effect.
Model: AFB1224SHE fan
Size: 120 x 120 x 38mm
Voltage: 24VDC
Scope: 14~ 27.6VDC
Current: 0.75A
Power: 18W
Air volume: 195CFM
Revolutions: 5100RPM
Noise: 58.5 dB (A)
Terminals: 4-wire 4-pin
Fan frame: injection molding at once, PBT + 30% glass fiber + VO flame retardant.
Wind blade: injection molding at one time, PBT + 30% glass fiber + VO flame retardant.
Fan rotation: from the fan blade direction to counter clockwise.
Operating temperature: - 10 degrees Celsius to + 60 degrees Celsius.
Storage temperature: - 40 degrees Celsius to + 70 degrees Celsius.
Bearing: High precision ball bearing power supply range: rated power supply positive and negative 15% insulation resistance: greater than 500
MHz Withstand voltage: leakage current 0.5 mA500V / 1 minutes.
Working life: 80, 000 hours of sensitive temperature sensor is built in when ambient temperature is 25 degrees. It can realize the change of speed and current with temperature, and make the heat dissipation effect reach the best effect.
