220V / 230V / 240V AC Cooling Fan. 172mm x 150mm x 38mm HS (HS1738B)

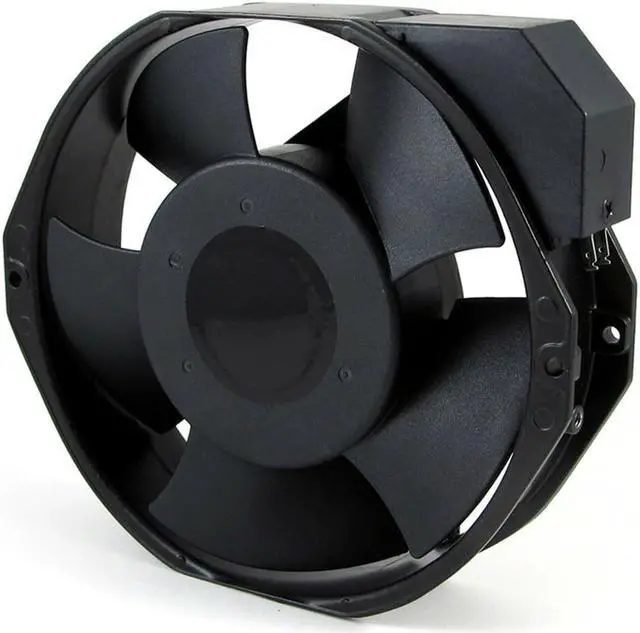

220V / 230V / 240V AC Cooling Fan. 172mm x 150mm x 38mm HS (HS1738B) The high speed 172 by 150 by 38 millimeter 230V AC axial fan is housed in die cast aluminum with thermoplastic blades. Containing long life dual ball bearings, the fan can run continuously for 67, 000 hours and be mounted in any direction. Has terminal connectors and can be soldered onto a power source using a wire cord, sold separately. Cooltron fans are certified by CE, UL, TUV, and RoHS; and found in various Samsung and Eaton servers and UPS systems.

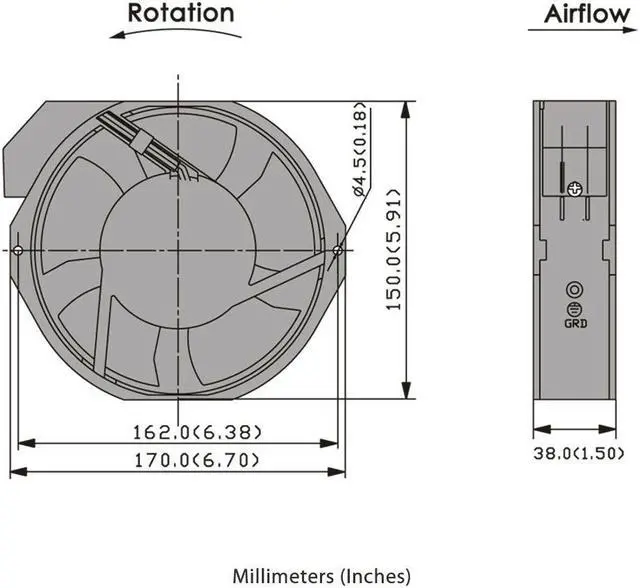

High speed fans deliver more air but are louder than low speed fans of the same size. They are more suitable in applications where maximizing airflow is the primary objective and a louder noise level is tolerable. Unlike 115V fans, 230V fans cannot be powered directly by an US outlet. This model is used to replace fans in industrial equipment running at 220-240V such as ovens and washing machines; and also products from Europe. Frame 172 x 150 x 38 mm Frame 6.8 x 6 x 1.5 in Voltage 230 VAC Power 35 W MFR Cooltron MPN FA1738B22T7C-31 Model HS1738B Speed 3300 RPM Airflow 201 CFM Noise 60 dBA Bearing Dual Ball Conn.

Terminal Cert. UL, TUV, RoHS Weight 760 g
