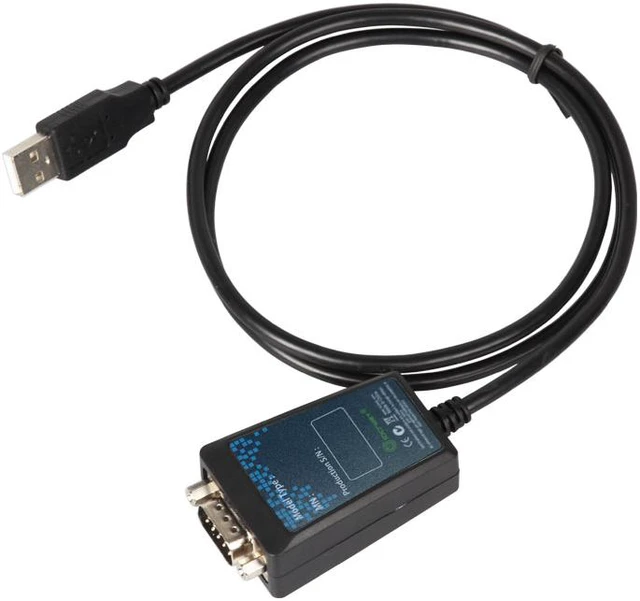

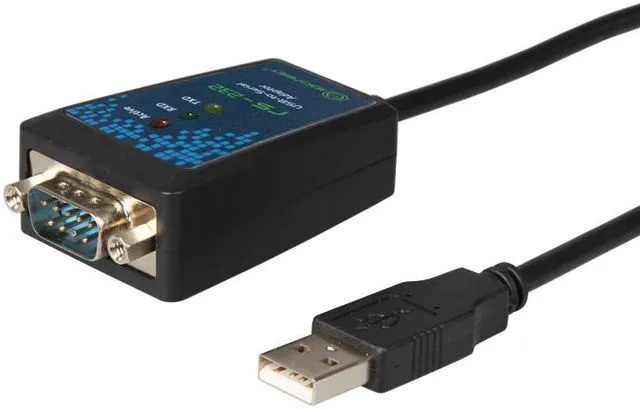

USB 2.0 to RS-232 Male (9-Pin) DB9 Serial Cable with FTDI Chipset Support Win10 Mac OS-X Linux Android (3.28ft)

USB 2.0 to RS-232 Male (9-Pin) DB9 Serial Cable with FTDI Chipset Support Win10 Mac OS-X Linux Android



This USB to Serial Port Adapter provides a simple and easy way to make a bi-directional bridge between USB bus and serial port peripheral device. Ideal for PDAs, digital cameras, GPS units, barcode scanners, and other equipment offer only serial connections, and PC's don't have a serial port. USB to UART Bridge Controller is a USB-IF certified, fixed function device that requires no programming from the user.



USB to RS232 DB9 Serial Adapter is designed for connecting to serial devices such as DB9 equipped serial modems, barcode scanners, etc. through USB port with 1Mbps data transfer rate

CONNECTORS: With standard USB Type A Male to standard 9-pin DB9 RS-232 serial connector

Single chip fully integrated solution: integrated Clock, EEPROM, USB termination Resistors, Voltage Regulator

Data format: 8 data bits, 1 stop Bit, No Parity



Features

1.Standards: conforming to USBV1.0, 1.1 and 2.0

2.USB signals: VCC, DATA+, DATA-, GND and FG

3.RS-232 signals: CD RXD TXD DTR GND DSR RTS CTS RI

4.Single chip USB to asynchronous serial data transfer interface

5.Support Bits per second Data transfer rates from 300 baud to 921600baud (RS232 ) at TTL levels

6.UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none

7.Flow control none,hardware and xon/xoff

8.Synchronous and asynchronous bit bang interface options with RD# and WR# strobes

9.UART signal inversion option

10.USB 2.0 Full Speed capable

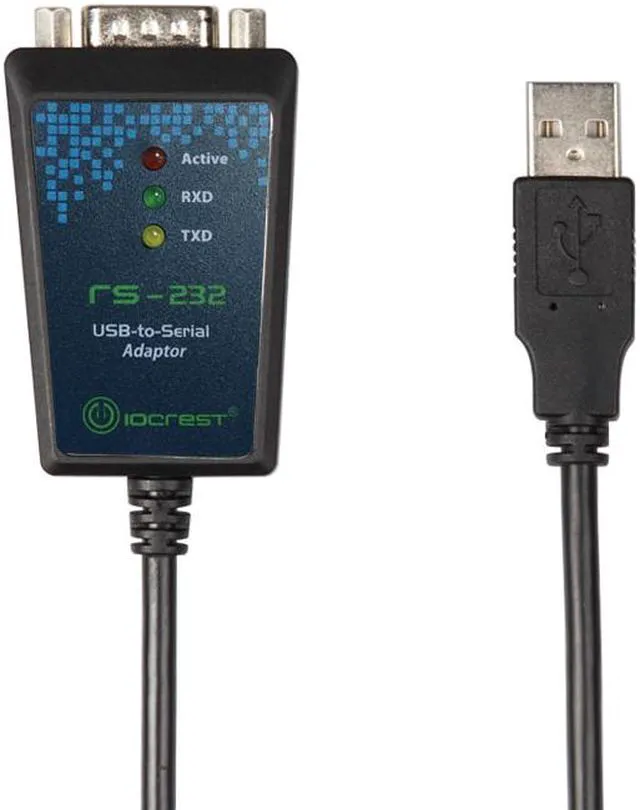

11.Signal indication: indicator lights for Power (PWR), Send (TXD) and Receive (RXD)

12.Extended operating temperature range; -40 to 85?C



Applications

USB to UART Cable

POS Printer Terminal

Networking System

Industrial and Power Meter

USB Bar Code Reader

USB Digital Camera Interface

USB Wireless/Wired Modem



Support System:

Windows XP,Vista,7,8 32,64-bit;

Windows Server 2K3,2K8,2K12 32,64-bit

Windows XP Embedded

Windows CE 4.2, 5.0 and 6.0

Mac OS-X

Linux 3.2 and greater

Android
