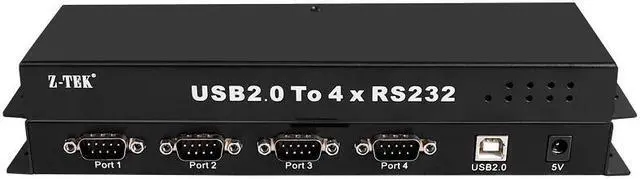

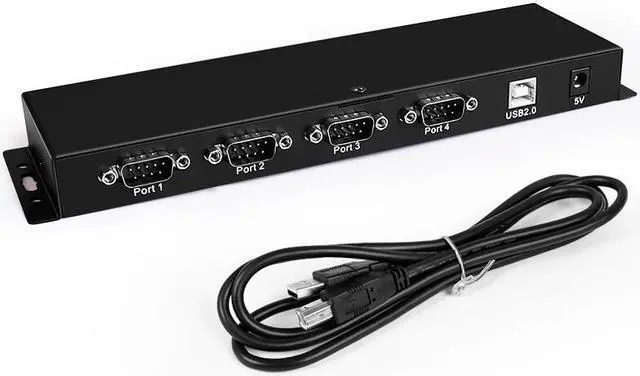

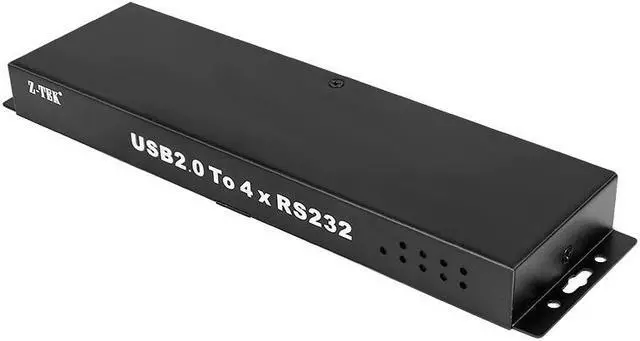

Weastlinks USB2.0 to 4 ports RS232 DB9 Com 4 rs-232 win10 power supply Serial converter laptop ZE737
- This USB to 4-Port RS232 Serial Splitter supports convert USB port to RS232 serial port.
- It can easily be converted between the computer's USB port and universal serial port, It is used in places where is not or not enough serial port.

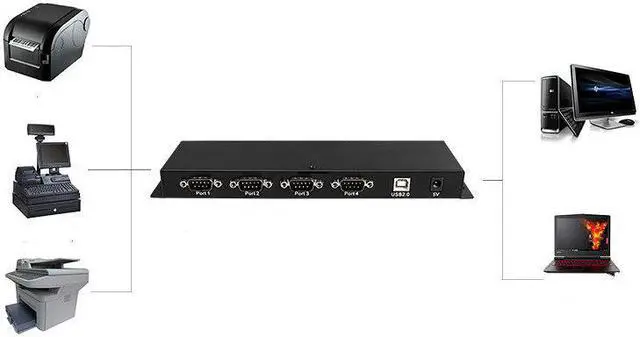

- More convenient to communicate with other devices. Providing a fast access for computer without serial ports (4 RS232 ports can work at the same time).
+
+
Overview
Specs
Reviews
Features:
Support USB2.0, USB1.0
Support 4-Port RS232 Serial work at the same time
Support multiple operating systems, need to install drivers.
Support remote wakeup/energy saving mode
Support the common MODEN contact signals of RTS, DTR, DCD.RI, DRS, CTS
Support bidirectional transmission, transmission without delay.
Function
Convert USB port to RS232 serial port
Input port :1*USB(USB2.0,USB1.1)
Output port:4*RS232( DB9 Serial) Port
Nickel plated port, anti-oxidation USB Signal VCC,DATA+, DATA-,GND,FG
RS232 Signal DCD,RXD,TXD,DTR,GND,DSR,RTS,CTS,RT
Operating systems:Windows 10, Windows 8, Windows 7, XP, Windows 2000 MAC OS v5.6
Work mode,Asynchronous, Point to Point,Data communication rate
300~512kbs
Baud rate :5400bps~921600bps
Transmission distance
USB port:< 5m,
RS232 port:<15 m
Directional control
Using data flow automatic control technology, automatic control and data transmission criterion
Operating Temperature:-20~75?.
Power supply:DC 5V.
Weight:283g.
Dimension:179mm X 79mm X 22 mm.
Package Included:
1 x USB to 4-Port RS232 Serial Splitter
1 x Power adapter
Support USB2.0, USB1.0
Support 4-Port RS232 Serial work at the same time
Support multiple operating systems, need to install drivers.
Support remote wakeup/energy saving mode
Support the common MODEN contact signals of RTS, DTR, DCD.RI, DRS, CTS
Support bidirectional transmission, transmission without delay.
Function
Convert USB port to RS232 serial port
Input port :1*USB(USB2.0,USB1.1)
Output port:4*RS232( DB9 Serial) Port
Nickel plated port, anti-oxidation USB Signal VCC,DATA+, DATA-,GND,FG
RS232 Signal DCD,RXD,TXD,DTR,GND,DSR,RTS,CTS,RT
Operating systems:Windows 10, Windows 8, Windows 7, XP, Windows 2000 MAC OS v5.6
Work mode,Asynchronous, Point to Point,Data communication rate
300~512kbs
Baud rate :5400bps~921600bps
Transmission distance
USB port:< 5m,
RS232 port:<15 m
Directional control
Using data flow automatic control technology, automatic control and data transmission criterion
Operating Temperature:-20~75?.
Power supply:DC 5V.
Weight:283g.
Dimension:179mm X 79mm X 22 mm.
Package Included:
1 x USB to 4-Port RS232 Serial Splitter
1 x Power adapter
