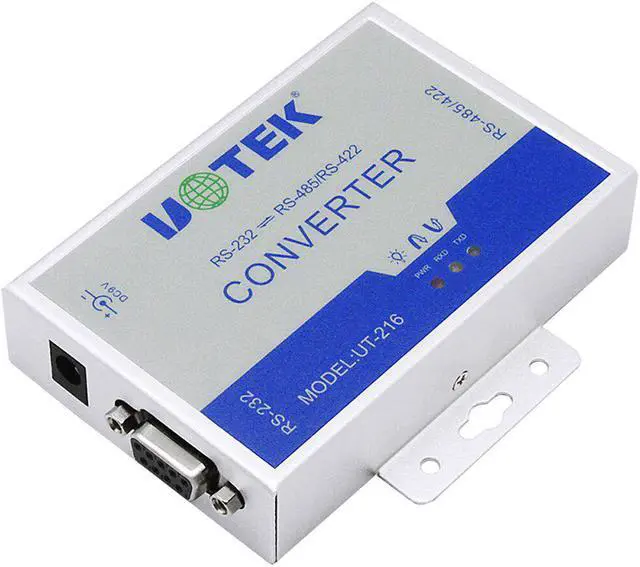

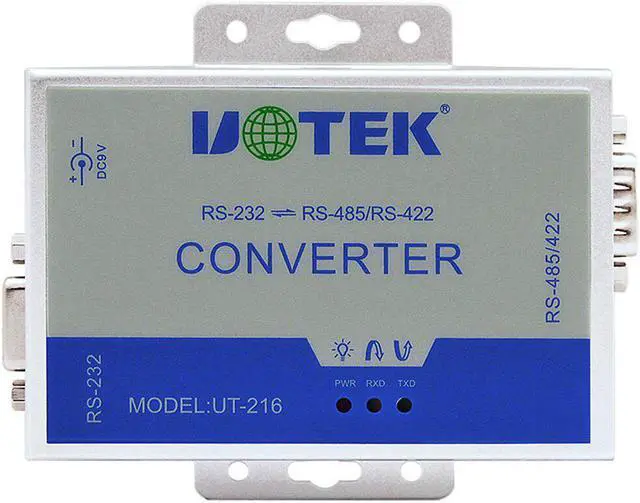

UTEK UT-216 RS232 to RS485/422 Converter with 600w Lightning Protection Active Industrial Automation Data Transmission with 6Pin

UT-216 complies with RS-232C, RS422, and RS-485 standards; It converts single side RS-232 signal to a balanced differential RS-422 or RS-485 signal. The built-in fast instant voltage restraint is designed to protect RS-422/RS-485 interface; it adopts advanced TVS (TRANSIENT VOLTAGE SUPPRESSOR) instant voltage restraint; normally, TVS tube is in high impedance state; when both sides of TVS tube suffer from high power impact in a sudden, the voltage restraint will fast lower the impedance from both sides, and absorb in big current; with this, the voltage on both sides are fixed at presupposed value, protects the component of circuit from damage.

This voltage restraint provides 600W each wire with lightning protection, and surge voltage, instant overvoltage protection on circuit which causing by all reasons; the tiny interelectrode capacitance ensures high speed transmission for RS-422/485 ports. RS-232 connects with RS-232C standard port by DB9 female connector; RS-422/RS-485 adopts DB9 male as connector. This converter is with built-in zero delay auto receiving and transmitting conversion and unique I/O circuit auto control data flow direction without any handshake signal (RTU, DTR); there is no need jumper wire setting for full duplex (RS-422) and half duplex (RS-485) mode, plug & play.

It is compatible with current communication software and hardware, no need to set the previous working mode which base on RS-232. UT-216 converter provides connection for point to point, point to multipoint communication. For point to multipoint mode, each converter is allowed to connect 32 sets RS-422 or RS-485 device with baudrate 300- 115.2K bps. The power and data flow indicators indicate the working status.
Standards: RS-232C, RS-485/RS-422

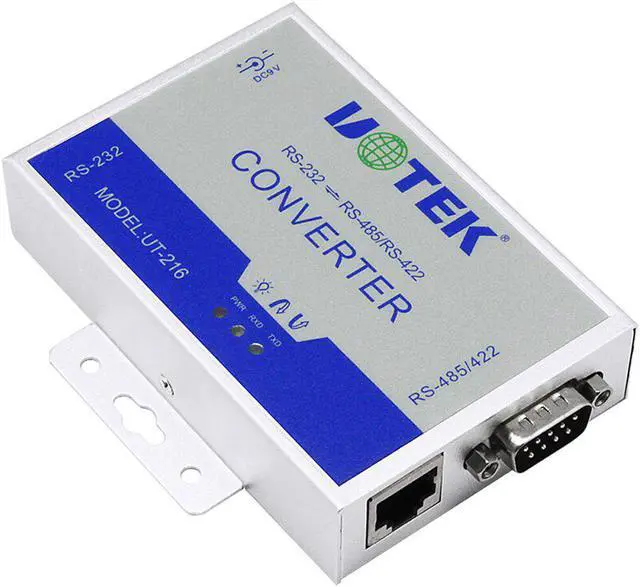

TIA/EIA Connector: RS-232 DB9 female input, RS-422/RS485 DB9 male output,
RJ-45 Protection: RS-422/RS-485 each line 600W surge, lightning protection
Working mode: asynchronous half-duplex or full-duplex LEDs for indicating PWR TXD, and RXD activity
Transmission media: twisted-pair or shielded cable
Transmission distance: 115.2K bps to 300m 38.4K bps to 600m 9600bps to 1.200K m
Dimension97mm×65mm×22mm Operating temperature: -25 to 70
Relative humidity: 5% to 95%
