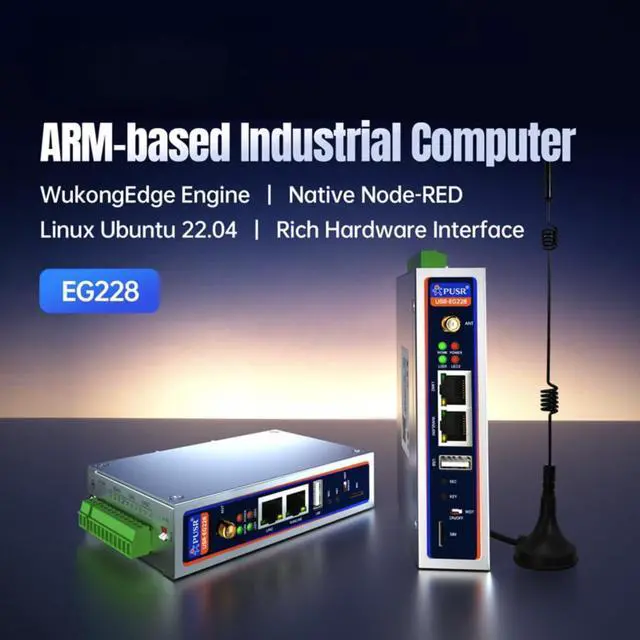

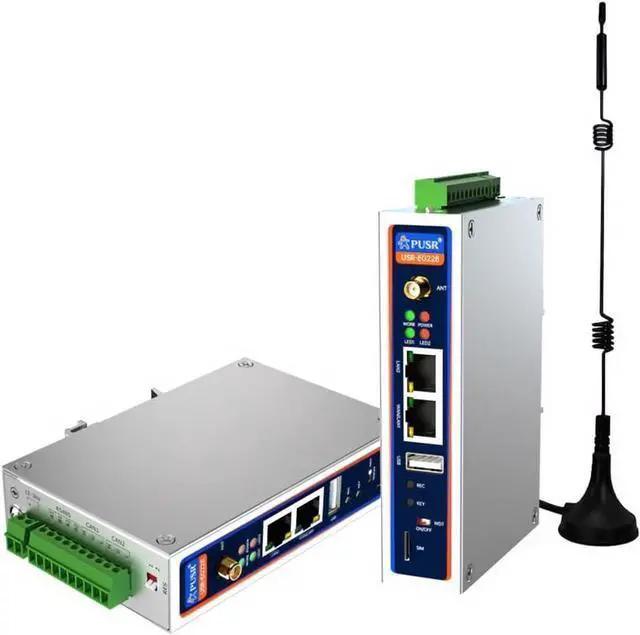

ARM Industrial Computer RK3506J Ubuntu 22.04 DDR3 512MB Modbus PLC DLT645 MQTT 2CANFD 4G/WiFi Din Rail Linux Mini PC EG228

USR-EG228 is an ARM-based Linux industrial control computer.It is equipped with an industrial-grade RK3506J triple-core Cortex-A7 + Cortex-M0 processor with a main frequency of 1.2 GHz.It supports various networking methods such as 4G, Wi-Fi, and Ethernet.It features a rich set of I/O interfaces, including 1×USB, 2×RS485, and 2×CAN FD.
On the firmware side, it comes with standard Ubuntu 22.04, and is equipped with the WukongEdge edge computing engine.With simple configuration, it can complete data collection, edge computing, and cloud reporting.The device is pre-installed with the latest version of Node-RED, with drag-and-drop programming, and business logic can be implemented immediately.
The high-performance CPU, various networking methods and hardware interfaces, along with the carefully designed firmware functions, enable this device to be applied in various industrial sites, quickly achieving data collection, monitoring, and analysis applications.

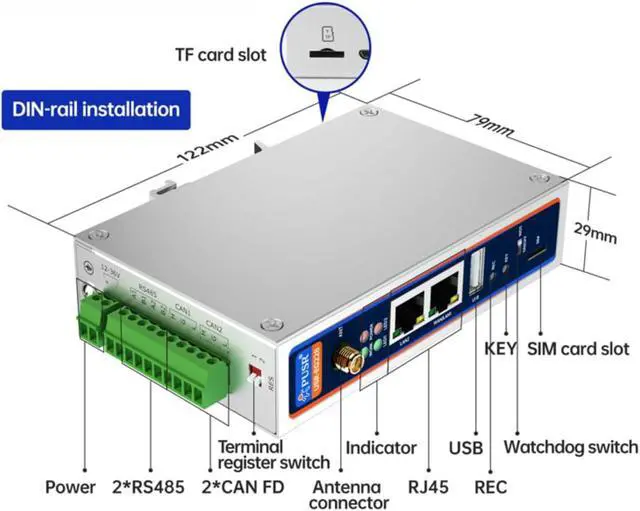

Rich Hardware Interface 2 * fast Ethernet, 2 * RS485, 2 * CAN FD, 1 * USB, suitable for various industrial scenarios.
Powerful Edge Computing Capabilities The built-in WukongEdge engine simplifies the configuration of networks, data acquisition, and reporting.It enables rapid establishment of data north-south channels, facilitating the rapid synchronization of terminal sensing and data center.
Multi-Industrial Protocol Acquisition & Conversion Wide protocol support: Capable of acquiring and converting a vast array of industrial protocols including IEC 61850, IEC 104, DLT645, DNP3.0, and BacNet. Extensive PLC Compatibility: Seamless communication with major PLC brands such as Siemens, Mitsubishi, Omron, Modbus, Delta, and Fatek.
