NF-611 HDMI cable tester detector and HDMI wire tracker Line finder professional or trouble shooting tester

Features:
1. Fast and accurate verification with type A - A, A - C and C - C connectors.
2. Check miswires, short, open and cross status of HDMI cables.
3. Mapping continuity and proper configuration.
4. Displays 19 pin-to-pin and shield connection status on both main and remote unit.
5.
Adjustable test modes: Fast/slow scan/manual test for step by step.
6. Design with loopback function. aeProduct.
getSubject() Attention: 1. Don't connected high voltage lines to avoid buring out the machine. 2. Put into the right place to avoid hurting others, because of the sharp part. 3. Connected the cable to the right port. 4. Read the user manual before use it.
Technical indexes: Cables
versions support: HDMI cables with type A & C connectors conforming to 1.0, 1.1, 1.2, 1.. 2a, 1.3, 1.3 a, 1.3 b, 1.4, 1.4 a, Category 1 and category 2 HDMI cables
Support test: 19 pin to pin wiremap and shielding detection

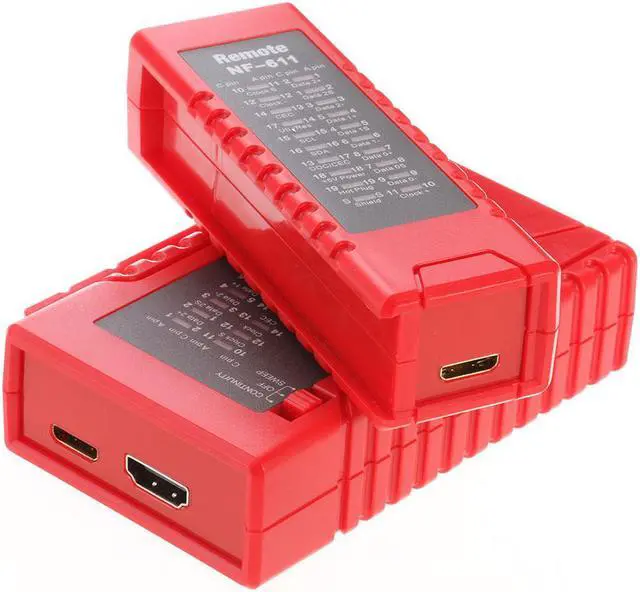

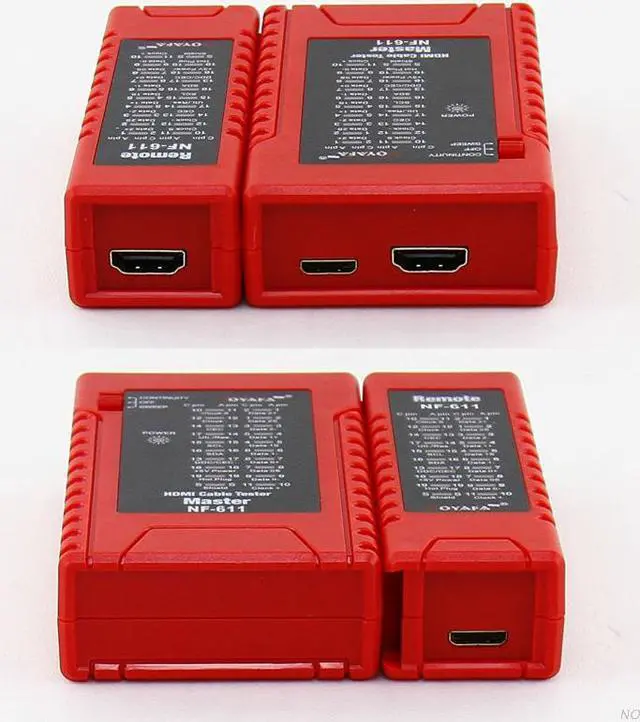

Test interface of master unit: HDMI ( type A) x1, Mini HDMI (type A ) x1
Test mode: Fast / slow scan / step by step
Test distance: Under 50 meters

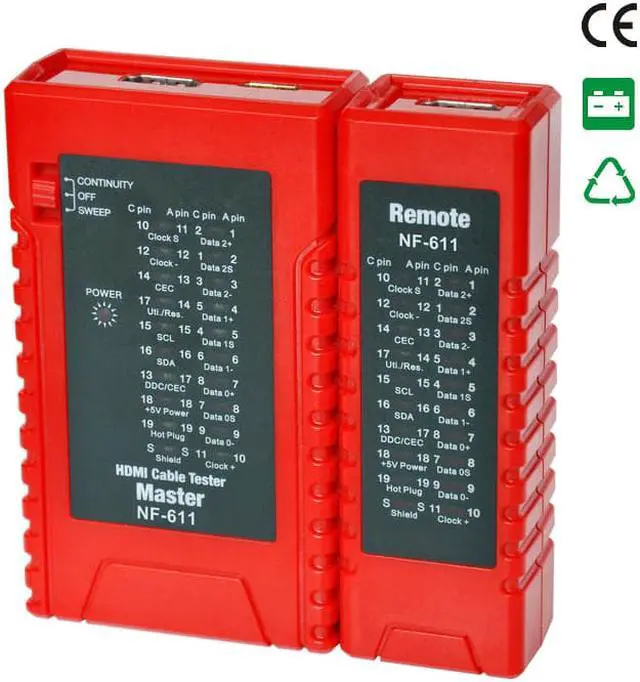

Status Display: 19 leds and shield led on both master and remote unit
Beeper indication: Yes
Low battery indication: 6.0V
Power source: DC 9V (NEAD 1604/ 6F22) x1 (not included)
Environment:
Operating: 0 to 40 < 80%
RH Storage: -10 to 50 <70%RH
Dimensions Master unit: 103x66x27mm
Remote unit: 103x35x27mm
Function Comparison:
Battery: 9
V Name: HDMI cable tester
Model: NF-611
Wire map: 19 pin+Shield
Cable type: A-A, A-C, C-A
Test type: Master+Remote
Status display: No
Test distance:
<50 meters Low battery indication: Yes
Test mode: Fast/slow/step by step
