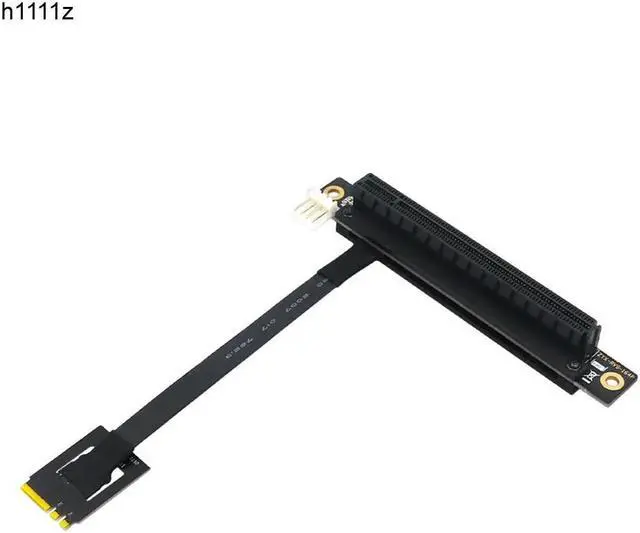

PCIE Riser 270 degree M.2 NGFF Key A-E To PCI Express 16X Adapter Cable Riser 4Pin FDD Power Connector for PCI-E Tester Extender

PCIE Riser 270 degree M. 2 NGFF Key A-E To PCI Express 16X Adapter Cable Riser 4Pin FDD Power Connector for PCI-E Tester Extender
About Description:
Product features:

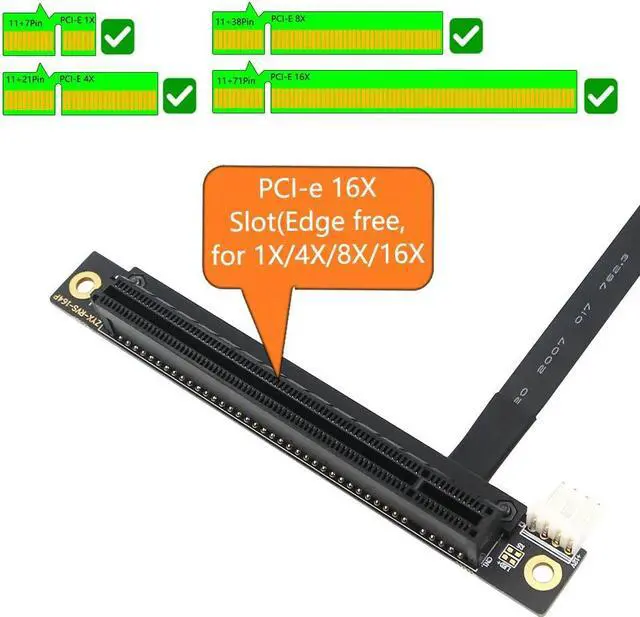

1. This adapter cable allows you connect any PCI-E device to M. 2 Dual Key A-E slot through a stand PCI-E 16X port.

2. Support M. 2 socket with type 2230.

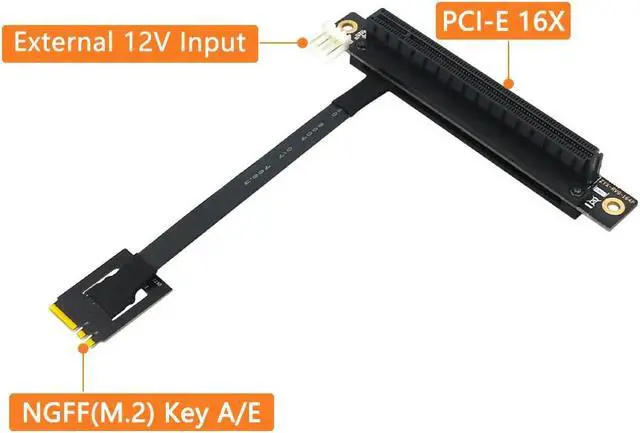

3. Support 12V power by 4pin FDD power connector for Standard PCI-E device. If your device doesnt need 12V power input, you wont connect this attached power cable.

4. The speed will limit 1X because of the M. 2 speed limited.

5. Using High quality wire, using High quality connector, high frequency support PCI-E 3.0 stable transfer.

6. No drivers needed for this Adapter.

7. Supports Win XP, Vista 32/64, Win 7, Win 8, Win10, Win11 or Linux and so on.

8.
System requirement: M. 2 Key A or E slot on the motherboard. Sometime this slot support PCI-E WLAN (eg 9260 AX200), however, there exist exception, If your board only support 9560 or AX201, It wont support this adapter cable. Because the system interface type of 9560 is CNVio2, not Wi-Fi (PCIe).

9.

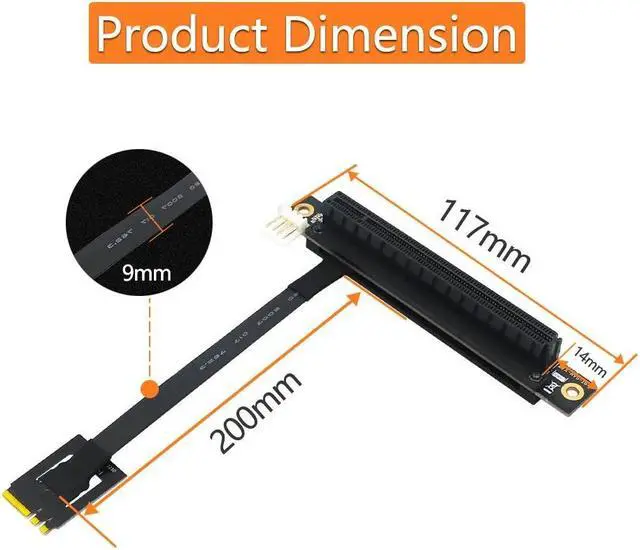

Cable length around: 20cm, Total
length around: 22.5 cm. Cable thickness is around 1.0 mm.

10. Its also a powerful tool for engineers, or use for PCI-E tester, extender and so on.

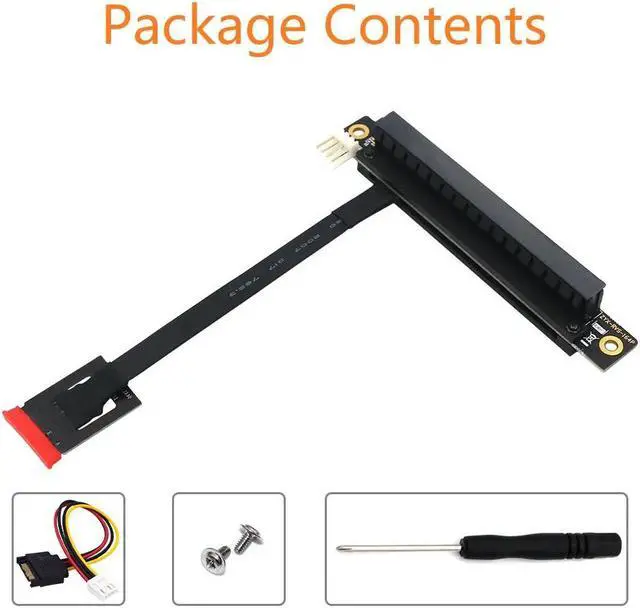

You'll receive:
1 x 270 degree M. 2 (NGFF) Dual Key A-E To PCI-E 16X Adapter cable
2 x M2 Screw
1 x Screw Driver
1 x FDD 4Pin to SATA Power cable

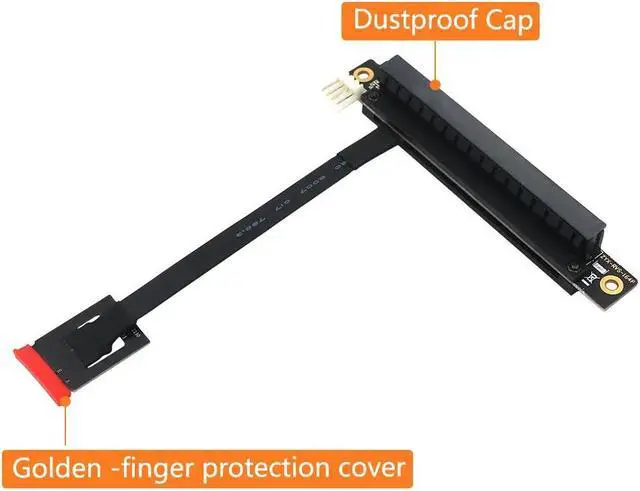

1 x Dust Cap
Please check pictures for more details.
