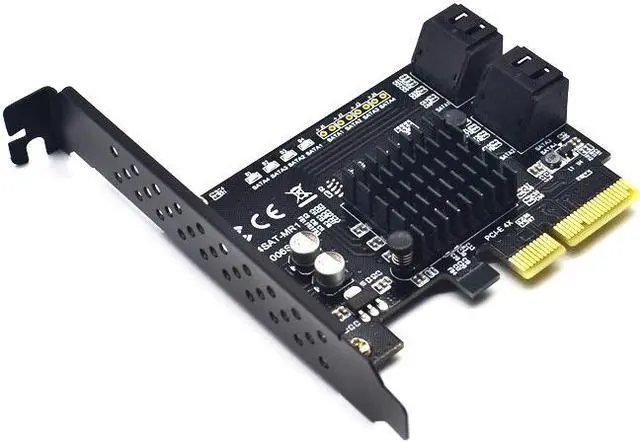

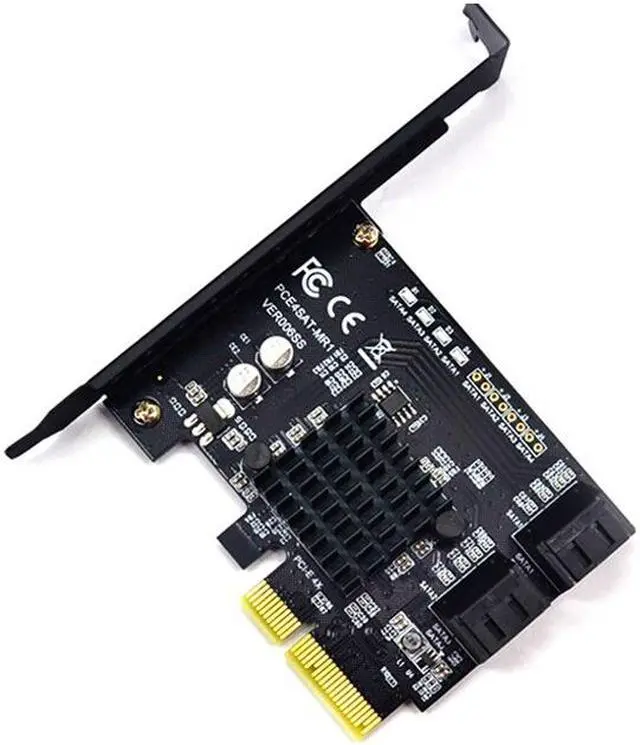

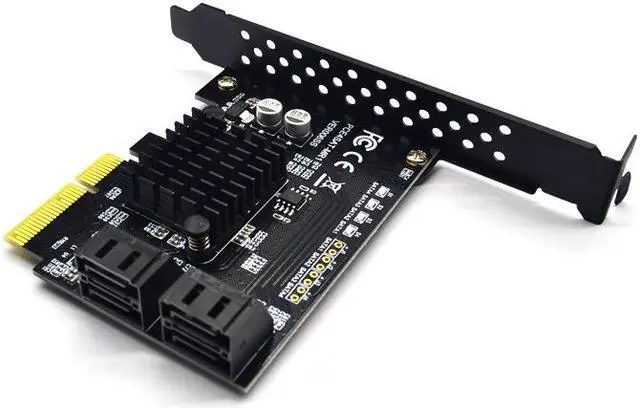

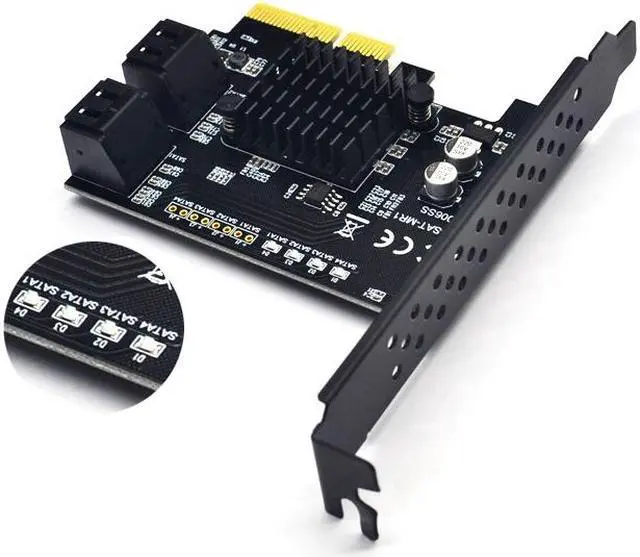

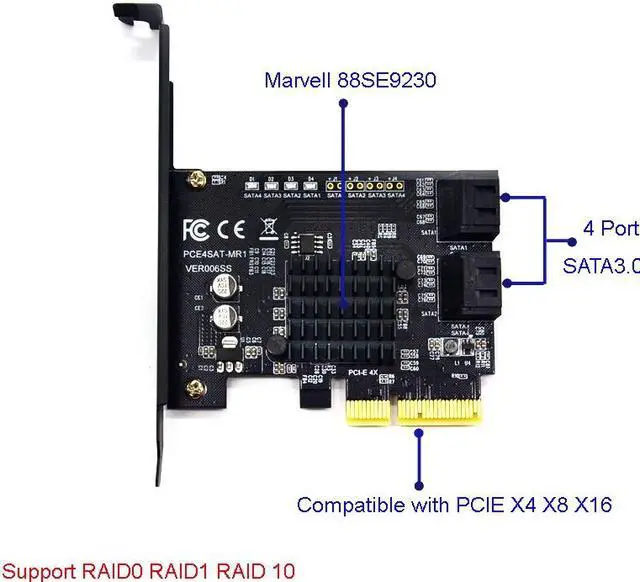

PCI Express Raid Card 4Port SATA 3.0 Add On Card Marvell 88SE9230 Chipset Compliant with PCI-E Specification revision 2.2 for PC

PCI Express Raid Card 4Port SATA 3.0 Add On Card Marvell 88SE9230 Chipset Compliant with PCI-E Specification revision 2.2 for PC
About Description:
Specification:
SATA III 4-port PCI-e Version 2, Bus type PCI-E x4 Slot Controller Card, HyperDuo, Software RAID
Ports: 4 Internal SATA 6Gb/s Ports
Compliant with PCI-Express Specification v 2.0 and Backward Compatible with PCI-Express v 1.0
Compliant with Serial ATA Specification 3.0
PCI-Express x4 Interface (for Selected Models) is Compatible with PCI-Express x4, x8 and x16 slots
Supports Communication Speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
Hot Plug and Hot Swap
Supports Native Command Queue (NCQ)
Supports Port Multiplier FIS Based Switching or Command Based Switching
Compatible with SATA 6G, 3G and 1.5G Hard Drives
RAID Function:
RAID 0-Striping (Stripe Size: 32K, 64K)
RAID 1-Disk Mirroring
RAID 10-Stripe of Mirrors (Stripe Size: 32K, 64K)
HyoperDuo Safe (Mirrored Protection) or Capacity-Cost (Optimized)
Note: Not Supported RAID on PM
Software Requirement:
Windows XP/Vista/7/8/10, Windows Server 2003, 2008, 2008 R2, Linux 2.6. x and Above (AHCI devices driver is a built-in feature)
You'll receive:
1 x PCI Express to 4-port SATA 3.0 Raid Card

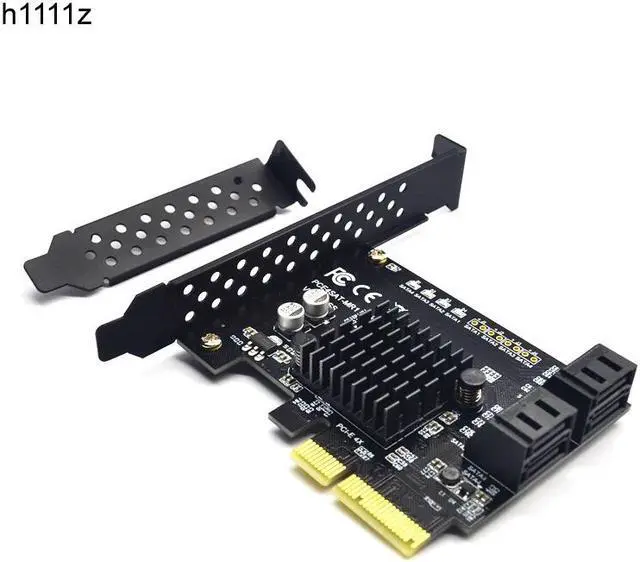

1 x Low Profile Bracket
1 x Driver CD
Please check pictures for more details.
