DC 5-24V Wireless RF Touch Panel Dimmer RGB Remote Controller RGB Controller for 3528 5050 RGB LED Strip Light

Type:Power Cable
Origin:Mainland China
Certification:NONE

DC 5-24V Wireless RF Touch Panel Dimmer RGB Remote Controller RGB Controller for 3528 5050 RGB LED Strip Light
The LED colorful controller adopts advanced PWM controller technology to control various constant voltage LED lamps that can realize RGB color change, such as rgbled lamp strip, LD module, LED lamp string, etc. the current belongs to DC low-voltage input mode, and the output load is four interfaces, of which V + is the fair pole interface, The other three are RGB controller interfaces. RF radio frequency remote control and film keys are used for mode selection and adjustment to achieve static, jump, gradient, stroboscopic and other lighting change effects. At the same time, customers can adjust the brightness of static colors according to actual needs, adjust the speed of dynamic changes, and expand the power with our RGB signal amplifier, To achieve more synchronous changes of LED lights, theoretically, countless RGB amplifiers can be linked. This product can bring 12v30 lamp, 20m lamp for one meter, 10m lamp for 12V 60 lamp for one meter. The wireless remote control has the characteristics of long distance, no directionality, and can penetrate certain thickness obstacles. It has power-off memory storage function, 25 modes, 7 static colors and 18 dynamic changes.
Model: 8-key iron shell controller
working temperature: - 20-60
power supply voltage: 12-24V
gross weight: 56g
net weight: 43.3g
output: 3 circuits
product package size: L95 * W55 * h40mm
product size: L63 * W35 * H22 mm

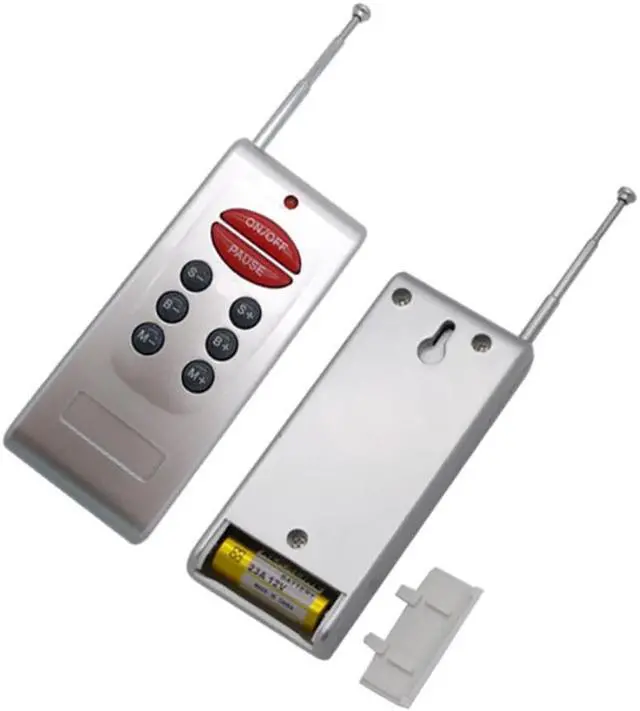

remote control size: L85 * w52 * h7mm
static power consumption:
maximum load current: 4A for each circuit
output power 12V
