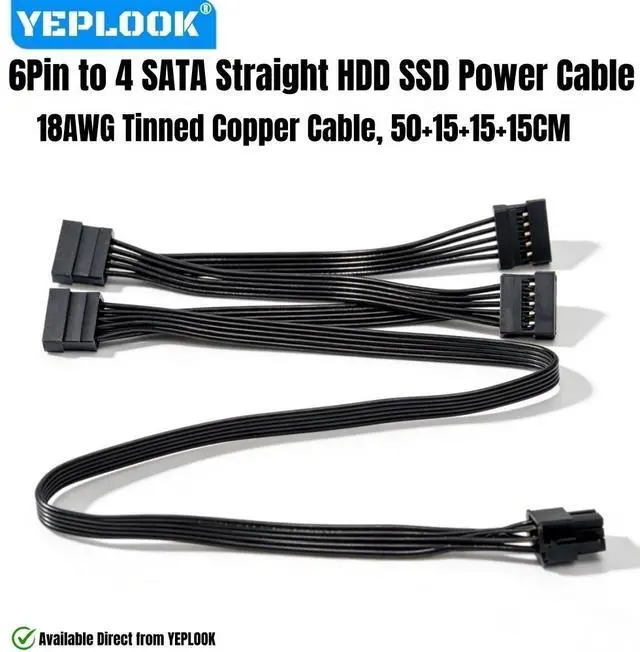

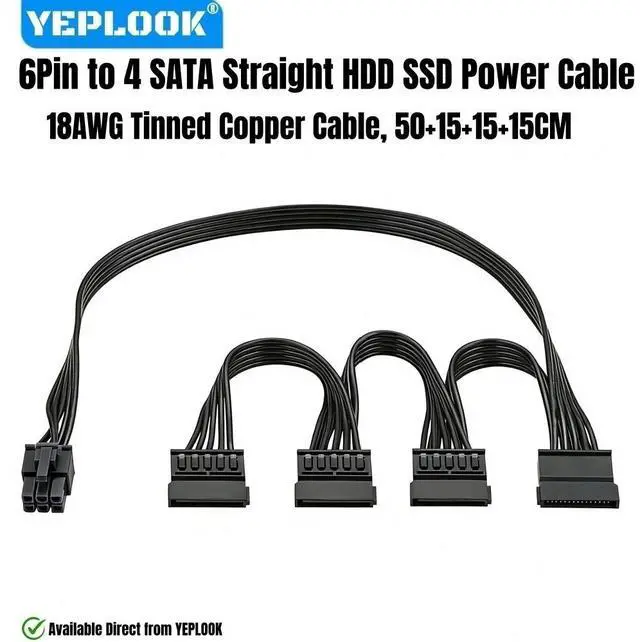

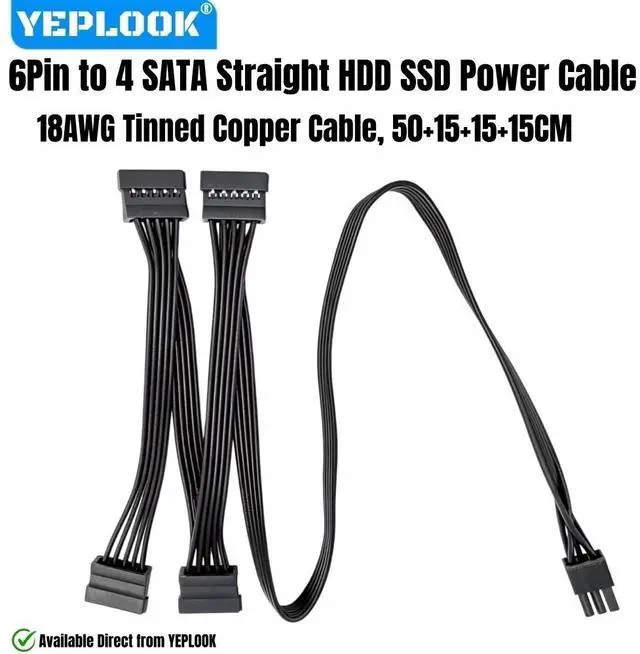

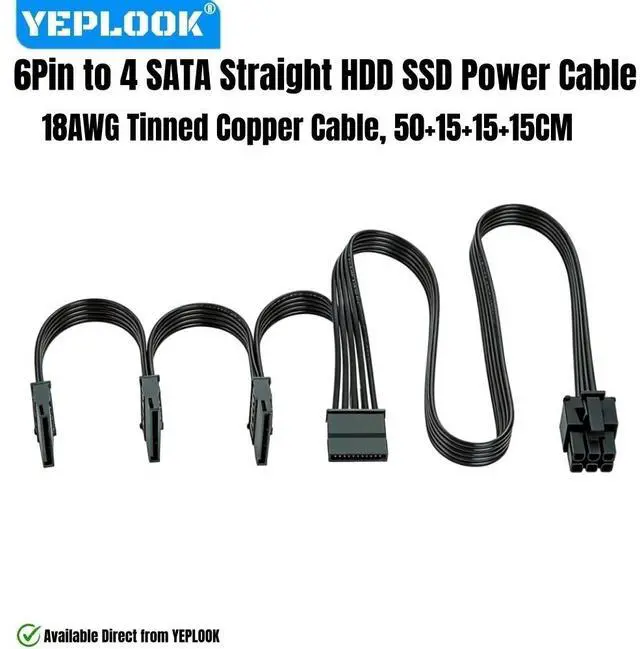

YEPLOOK 6Pin to 4x SATA Straight SSD HDD Power Cable for CORSAIR AX-i HX-i HX TX-M CS-M CX-M RM RM-i RM-x RM-e SF 1500W 1200W 1000W 850W 750W 650W 550W 500W 450W Type 3 & 4 Modular PSUs

YEPLOOK 6Pin to 4x SATA Straight SSD HDD Power Cable for CORSAIR AX-i HX-i HX TX-M CS-M CX-M RM RM-i RM-x RM-e SF 1500W 1200W 1000W 850W 750W 650W 550W 500W 450W Type 3 & 4 Modular PSUs, 18AWG 50+15+15+15CM

*YEPLOOK Store Pre-Purchase Notes:

1. All images are for reference only. If you need to view real photos, please contact us.

2. An empty hole on 6Pin connector, which is default pin layout. Because SATA is 5-wire powered.

3. We are responsible for quality inspection and customer support of cables sold direct from YEPLOOK.

Description

Brand: YEPLOOK

Interface: 6Pin to 4 SATA Straight

Cable Length: 50+15+15+15 CM

Cable Gauge: 18AWG standard tinned copper wire.

Advantages: Soft ribbon flat cables with good cable management. Easy to bend, suitable for chassis wiring. Tinned copper wires are good to prevent corrosion and provide a long lifespan.

Package List: 1 Piece 6Pin to 4x SATA Straight, SSD HDD SATA Power Cable for Corsair Type 3 & Type 4 Modular Powers.

How to Connect?

6Pin connector plug into modular power side. SATA connector plug into devices that need powered by SATA ports, Such as SSD, HDD Hard Disk Drive, Riser Cards, etc.

Compatibility about this 6Pin to 4x SATA HDD SSD power cable, which is fully compatible with Corsair TYPE 3 & TYPE 4 modular powers.

Compatible with Corsair Type 3 Modular Powers below:

For Corsair AX-i : AX1500i, AX1200i, AX860i, AX760i

For Corsair HX-i : HX1200i, HX1000i, HX850i, HX750i, HX650i, HX550i (Blue label)

For Corsair HX Gold: HX1050, HX850, HX750, HX650

For Corsair RM: RM1000, RM850, RM750, RM650, RM550, RM450 (Yellow label)

For Corsair CX-M: CX850M, CX750M, CX650M, CX600M, CX500M, CX450M, CX430M

For Corsair CX: CX750, CX650, CX600, CX550, CX500, CX450, CX430

For Corsair CS-M: CS850M, CS750M, CS650M, CS550M, CS450M

For Corsair TX-M: TX850M, TX750M, TX650M, TX550M

Compatible with Corsair Type 4 Modular Powers below:

For Corsair AX1600i, AX1000 Titanium, AX850 Titanium

For Corsair SF: SF750, SF600, SF450 (Not for SF850, SF1000)

For Corsair RM Gold: RM850, RM750, RM650, RM550, RM450 Gold (White label 2021 Version)

For Corsair RM-x: RM1000x, RM850x, RM750x, RM650x, RM550x (Not for RM-x Shift Version)

For Corsair RM-i: RM1000i, RM850i, RM750i, RM650i, RM550i

For Corsair RM-e: RM1200e, RM1000e, RM850e, RM750e

For Corsair HX Platinum: HX1200, HX1000, HX850, HX750 Platinum (White label)

For Corsair HX-i Platinum: HX1500i, HX1200i, HX1000i (White label Type 4 Version)

Not for Corsair AX1200 Gold.

Not for Corsair Type 2 AX850 Gold, AX750 Gold, AX650 Gold.

Not for Corsair Type 5 modular powers. Not for Corsair RM850x SHIFT. Not for Corsair SF850, SF1000.

Not for modular powers of other brands and models.

Mix using cables may cause damage. If your modular power is not listed above, please check compatibility with us to ensure proper installation.
