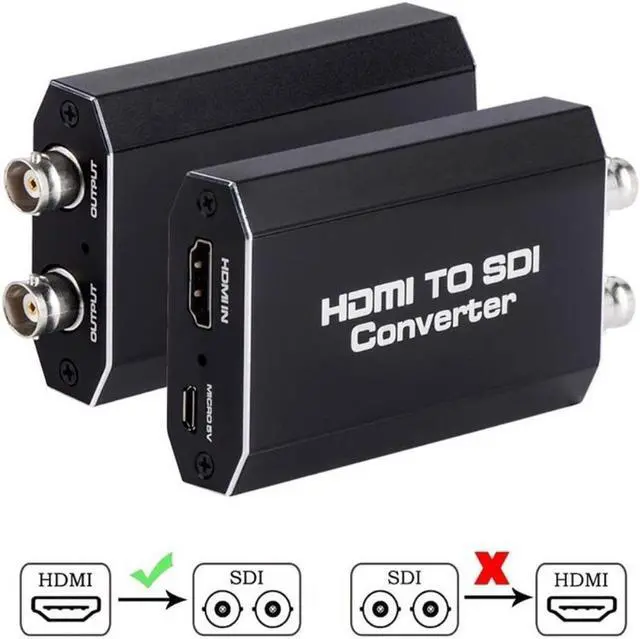

HD To 3G-SDI/HD 1080p Converter HD/SDI Embedded Audio Converter with Data Cable SDI To HD/HD To SDI

Certification:NONE
Origin:CN(Origin)
Resolution:1080P
type:Audio-video converter

Application field
Widely used in broadcasting rooms and non-editing fields of TV stations at all levels using SDI signals, and also widely used in various optical transmission fields and security fields using HDMI interfaces.
Specifications
2. Video input signal: HD-SDI and 3G-SDI signals
3. Video output signal: one HDMI signal output (1080P@60Hz)
4. Input audio signal: SDI embedded
5. Maximum working current: 500mA
6. Power adapter specifications: AC input (50HZ, 60HZ) 100V-240V; output: DC 5~12V/1A
7. Working temperature: (-15 to +55)
8. Working humidity: 5 to 90%RH (non-condensing)
Main features
The performance is very advanced. The input terminal supports the most widely used hdmi1.4 version at present, and is downward compatible with hdmi1.3 and hdmi1.2.1.1 and below. The output terminal supports the most high-end 3gsdi signal and 1.485gsdi HD signal in the industry, and is compatible with all kinds of sd-sdi signals at the same time.
The picture quality output effect is first-rate, which fully meets the professional requirements of the broadcasting room and non-linear editing system.
In view of the 24-hour uninterrupted operation environment of the broadcast room of radio and television, the program emphasizes stability from design to component selection and production process, which can meet the requirements of 7 days * 24 hours operation.
Effective distance 120 meters
main feature:
;Nbsp;HDMI 1.4a36755;"3G SDI367553;"
Full 10bit conversion
Full HD HDMI supports 8-channel embedded audio
Optional audio SRC function, support any HDMI audio sampling frequency channel input
SDI PLL clock filter, 3G SDI output with very low jitter
Power indicator and video lock indicator
Industrial-grade protective metal shell, easy to install and operate
Parameter table:
Interface HDMI input port (Type A mother seat with locking hole); 2 SDI output (BNC mother seat); 5V DC in (Ø3);
Power consumption
Dimensions (L x W x H): 82 x 55 x 30mm
Net weight 0.15kg per unit
Input video HDMI v1.3a, 30/36 bits per pixel, RGB or YUV,
SD, HD,525i, 625i, 720p 50/59.94/60,1080i 50/59.94/60,1080p23.98/24/25/29.9/30/50/59.94/60
HDMI Standard Type A connector
Output video 3G, HD, and SD-SDI (auto-selected),
SMPTE-259/274/292/296/372/424/425,
2x BNC
Input audio HDMI embedded audio, 24 bit / 48Khz or any other HDMI supports any audio frequency (SRC function exists), 8 channels max
Output audio SDI embedded audio, 24 bit/48KHz, 8 channels max
Signal light power-green; video-green
Temperature range 0 ~ 40°C (working temperature range); -20 ~ 60 C (storage temperature range)
Compliance with regulations
FCC; CE.
typical application:
It is suitable for the conversion and output of HDMI source to remote SDI monitor, realizing the long-distance coaxial cable transmission of high-definition audio and video signals.
