MABUCHI RF-500TB-18280 Motor DC 3V 4.5V 6V 5650RPM Micro 32mm Round Motor For Perfumer Humidifier
In stock. Limit 200 per customer.
Ships from China.
Fees for brokerage and duty included in price.
- MABUCHI RF-500TB-18280 Motor DC 3V 4.5V 6V 5650RPM Micro 32mm Round Motor For Perfumer Humidifier
Overview
Reviews
Origin:CN(Origin)
Certification:ROHS
Continuous Current(A):0.04
Commutation:Brush
Model Number:RF500TB-18280
Type:Micro Motor
Protect Feature:Explosion-proof
Construction:Permanent Magnet
Usage:Home Appliance
Efficiency:IE 1
Specification
:
1.Brand: MABUCHI MOTOR
2.Model: RF-500TB-18280

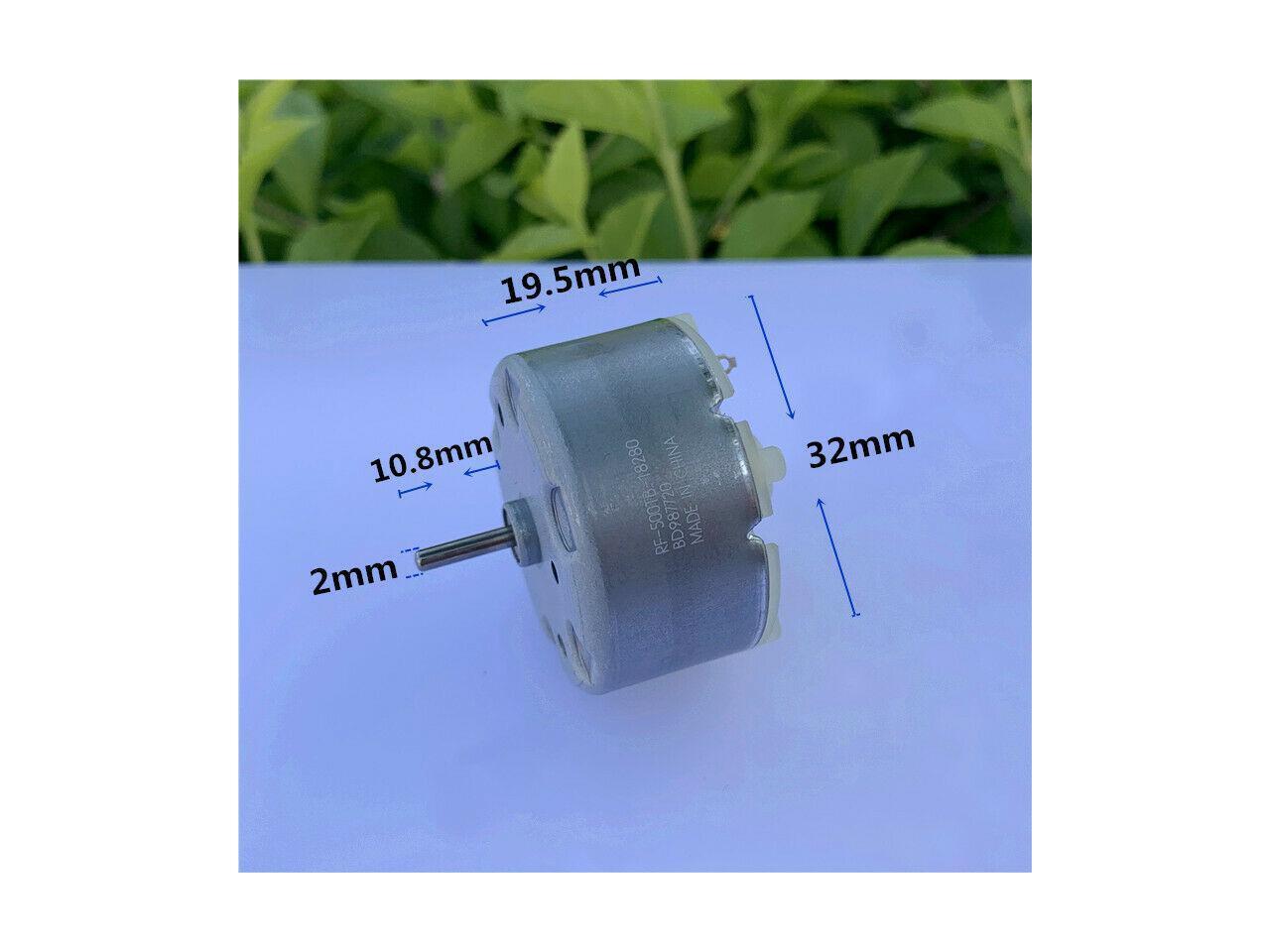

3.Motor size: 32mm*19.5mm
4.Output shaft diameter: 2.0mm
5.Output shaft length: 10.8mm
6.Weight: 46g
7.Voltage range: DC 3V-6V
8.Test data:
Voltage:3.0V No-load speed:2800RPM Current:30mA
Voltage:4.5V No-load speed:4250RPM Current:36mA
Voltage:6.0V No-load speed:5650RPM Current:50mA
Package Include:
1PC x Motor
Certification:ROHS
Continuous Current(A):0.04
Commutation:Brush
Model Number:RF500TB-18280
Type:Micro Motor
Protect Feature:Explosion-proof
Construction:Permanent Magnet
Usage:Home Appliance
Efficiency:IE 1
Specification
:
1.Brand: MABUCHI MOTOR
2.Model: RF-500TB-18280
3.Motor size: 32mm*19.5mm
4.Output shaft diameter: 2.0mm
5.Output shaft length: 10.8mm
6.Weight: 46g
7.Voltage range: DC 3V-6V
8.Test data:
Voltage:3.0V No-load speed:2800RPM Current:30mA
Voltage:4.5V No-load speed:4250RPM Current:36mA
Voltage:6.0V No-load speed:5650RPM Current:50mA
Package Include:
1PC x Motor
