AC 220V 230V Adjustable Infinite Loop Cycle Delay Timer Relay Turn ON/OFF Switch

Certification:NONE
Origin:CN(Origin)
Theory:Time Relay
is_customized:No
Contact Load:High Power
Voltage:220V
Model Number:AC 230V Delay Switch module
Protect Feature:Other
Power Source:AC
Usage:General Purpose
Type:Delay Switch module
Relay:10A
Working voltage:Infinite Cycle Moule
Country/Region of Manufacture:China
Model:AC Infinite Cycle Moule

Features:
with the start / stop function, after the start of the module into the infinite loop mode, the relay work in accordance with the set time.
Parameter:
Voltage: AC 100V-250V, can be used for 100V/110V/120V/127V/220V/230V/240V power.
Power consumption:
Output: active output, output voltage and input voltage the same. Maximum not more than 10A.
Life: 100 thousand times
Input: passive switch input, after the start of the green light first, stop after the red light
Time range: 0.5 seconds -1000 minutes
Time accuracy: range Max * 0.001, or resolution of 1000.
Input (start button): no source switch input, after the start of the green light first, stop to stay in the red light.
- starting the input is not necessary, you can connect the two terminals with a short wire,
so that the power will be started on the infinite loop, no buttons.
Dimensions: length 88mm * width 38mm * high 22mm below
Screw hole: center distance 83mm * 33mm, aperture 3.2mm

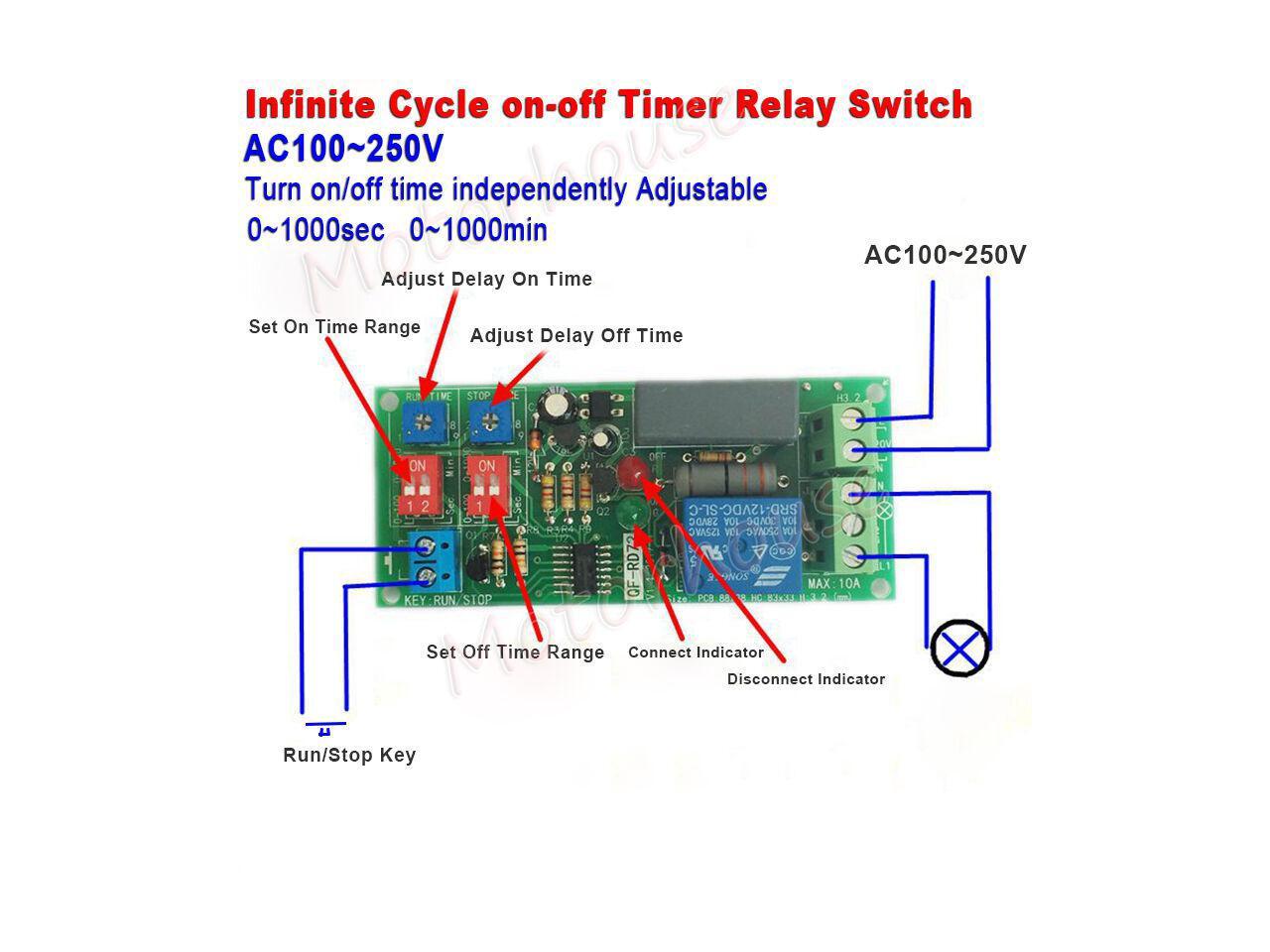

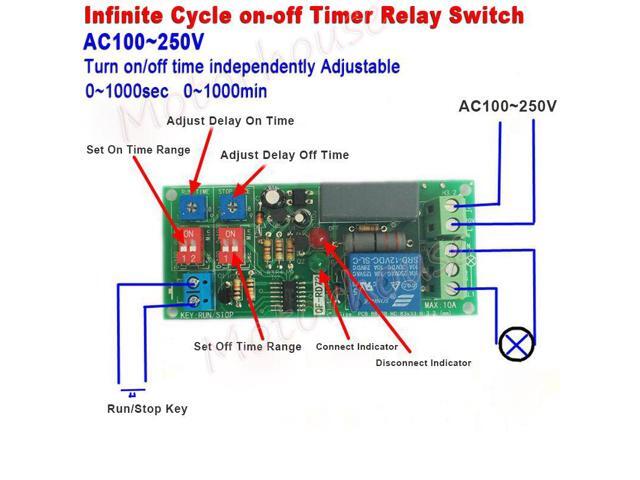

Terminal:
Ouput N, load N line
Ouput: L1, load L line
most appliances do not need to strictly distinguish the LN line
LNC L line output normally closed, generally do not connect.
Operating instructions
:
1.ON time setting:
RUN TIME under the identification of the potentiometer adjustment time, clockwise for the increase in length, counterclockwise to shorten the length of time.
Potentiometer allocated code switch set to the left time range. The adjustable range of the adjustable resistor is 0-100; the dial range is 0-1000.
The potentiometer allocated code switch unit set right. Dial down to Sec. indicating unit for seconds; dial up to Min. to indicate unit for minute.
2.OFF time setting:
OFF TIME under the identification of the potentiometer adjustment time, clockwise for the increase in length, counterclockwise to shorten the length of time.
Potentiometer allocated code switch set to the left time range. The adjustable range of the adjustable resistor is 0-100; the dial range is 0-1000.
The potentiometer allocated code switch unit set right. Dial down to Sec. indicating unit for seconds; dial up to Min. to indicate unit for minute.
3 start button:
Access to the reset button, click, switch to the green light, indicating that the running state, the module will automatically set in accordance with the running time and the length of time to stop working, infinite loop. Click the start button again, the module will switch to red light, said to be in a stopped state.
4 time set example:
Requirements: connect 20 seconds, disconnect 30 minutes, infinite loop.
Set up:
(1). Set the run time range down to 0-100;
(2) set the run time unit down to seconds;
(3) turn the running time potentiometer to the position of the, which is the position of the left 20/100;
(4). Set the stop time range to 0-100;
(5) set the stop time unit to minutes;
(6) turn the stop time potentiometer to the position of the 30, which is the position of the 30/100 from the left;
Application
:
For cycle control, or equipment, product aging test repeated power on/off.
Notes:
1. If need start button, the button capacity need above 0.1A.
2. AC power, beware safety
Package Include:
Relay module x 1pc
