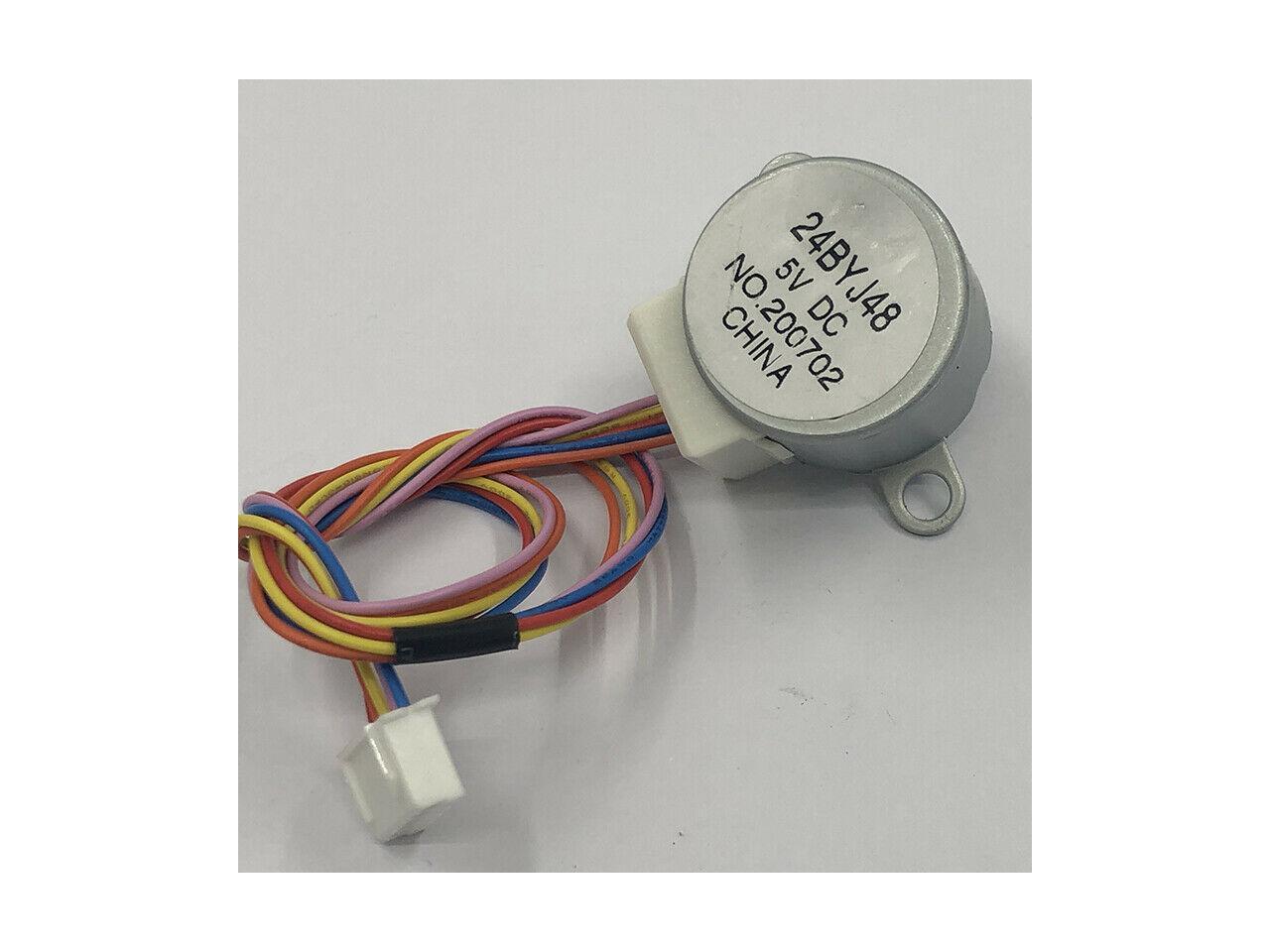

24BYJ48 4-Phase 5-Wire DC 5V Gear Stepper Reduction Stepping Motor Reduction Ratio 64:1 for Single Chip Microcomputer
In stock. Limit 200 per customer.
Ships from China.
Fees for brokerage and duty included in price.
- 24BYJ48 4-Phase 5-Wire DC 5V Gear Stepper Reduction Stepping Motor Reduction Ratio 64:1 for Single Chip Microcomputer
Overview
Reviews
Origin:CN(Origin)
Certification:NONE
Phase:4
Type:Permanent Magnet
Gear Ratio:60:1
Model:24BYJ-48
Wiring Configuration:5-Wire Bipolar
Country/Region of Manufacture:China
Actual Rated Input Voltage:5V
Current Type:DC
Specification
:
DC 5V 24BYJ-48 Stepper Motor
Suitable for: single - chip learning or air - conditioning guide bar driver and security camera monitoring adjustment direction
Motor Parameters :
1.Motor name:
24BYJ48A
Stepper Motor
2.Driving voltage: DC 5 V
3.Rated voltage: DC 5V
4.DC resistance :18 ± 7% (25)
5.Speed Variation Ratio : 1/64
6.Stride Angle :5.625°/64
7.Driving method:4 phase 8 beat
8.Pull in torque: 350gf.cm(100HZ)
9.Friction torque : 800~1300 gf.cm
10.Rise in Temperature : 55K (DC5V,100Hz)
11.Noise : 35dB (No load,100Hz)
12.Insulated electricity power :600V AC/1s
13.Pull strength for fine wire: 1Kgf/bar
14.Direction of rotation:Clockwise
15.Model: 24BYJ-48-5V
Package Include:
Motor x 1pcs
Certification:NONE
Phase:4
Type:Permanent Magnet
Gear Ratio:60:1
Model:24BYJ-48
Wiring Configuration:5-Wire Bipolar
Country/Region of Manufacture:China
Actual Rated Input Voltage:5V
Current Type:DC
Specification
:
DC 5V 24BYJ-48 Stepper Motor
Suitable for: single - chip learning or air - conditioning guide bar driver and security camera monitoring adjustment direction
Motor Parameters :
1.Motor name:
24BYJ48A
Stepper Motor
2.Driving voltage: DC 5 V
3.Rated voltage: DC 5V
4.DC resistance :18 ± 7% (25)
5.Speed Variation Ratio : 1/64
6.Stride Angle :5.625°/64
7.Driving method:4 phase 8 beat
8.Pull in torque: 350gf.cm(100HZ)
9.Friction torque : 800~1300 gf.cm
10.Rise in Temperature : 55K (DC5V,100Hz)
11.Noise : 35dB (No load,100Hz)
12.Insulated electricity power :600V AC/1s
13.Pull strength for fine wire: 1Kgf/bar
14.Direction of rotation:Clockwise
15.Model: 24BYJ-48-5V
Package Include:
Motor x 1pcs
