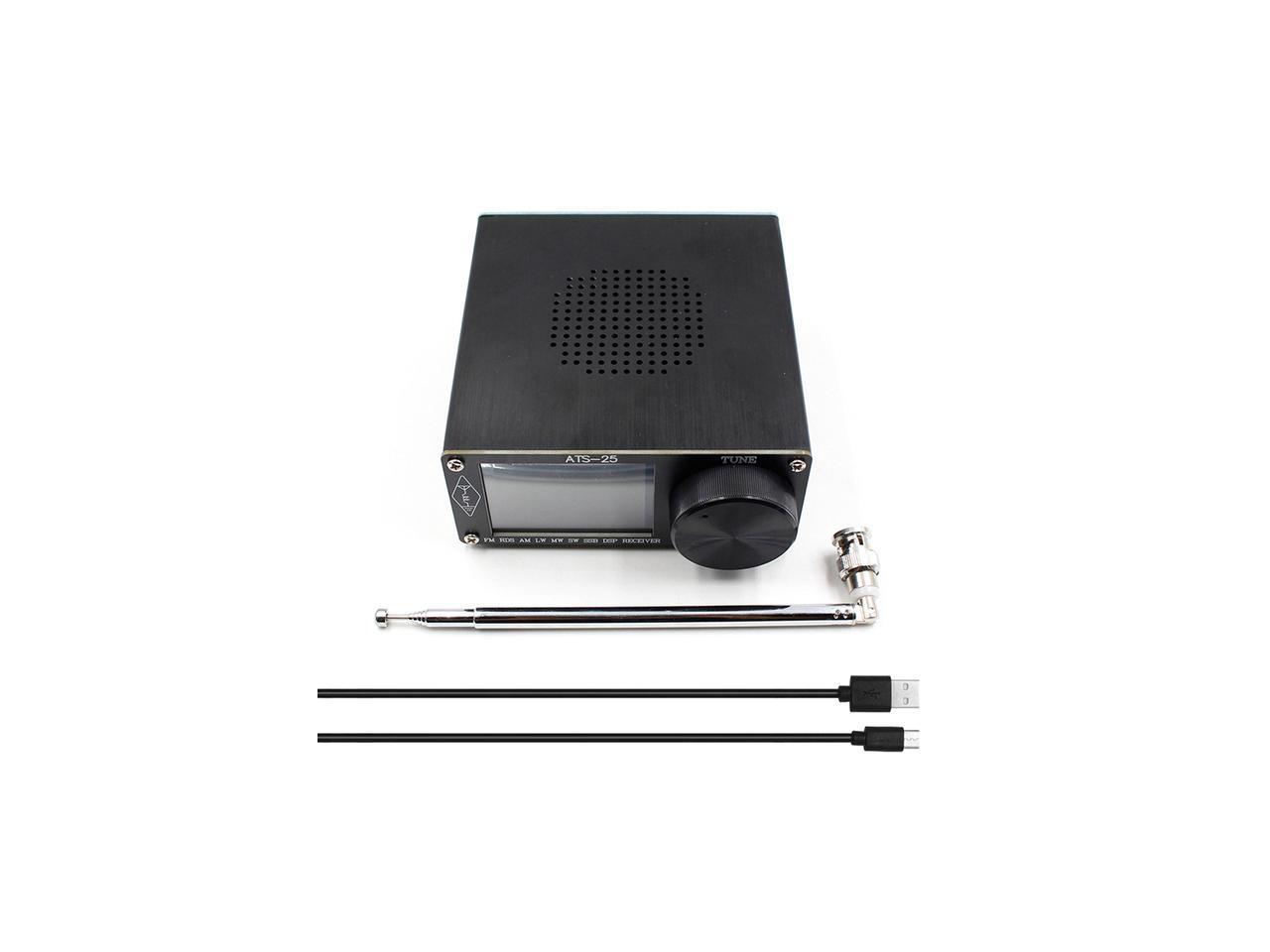

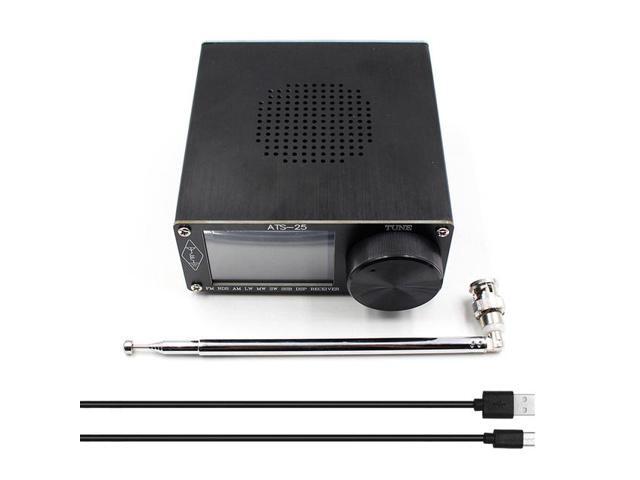

ATS25 Si4732 All Band Radio Receiver DSP Receiver FM LW (MW and SW) and SSB with 2.4Inch Contact Screen

In stock. Limit 200 per customer.
Ships from China.
Fees for brokerage and duty included in price.
  • ATS25 Si4732 All Band Radio Receiver DSP Receiver FM LW (MW and SW) and SSB with 2.4Inch Contact Screen
Wireless Type:bluetooth
High Definition Support:None
Sound Track:Single
WIFI Standard:2.4G
1. the input voltage:12V DC
2. the input current:1.0A
3. the audio signal:the maximum input Vpp is less than 1V.
4. the microphone type:cylinder microphone or microphone!
5. output power:0.5W7W continuously adjustable!
6. the output impedance:50 ohm
7. the working frequency:76108MHz
8. step frequency:0.1MHz
9. the distortion degree:0.03 0.1
10. the distance is more than 5KM (the p:open fieldemission)

1. Support the numeric keyboard to directly input the frequency
2. Support HAM band shortcut channel
3. Support AM bandwidth: 16K
4. Support SSB bandwidth: 0.54.0K
5. Builtin lithium 3.7v /2000MA
TYPEC charging interface, maximum 1.5A charging current
Support TYPEC interface upgrade program
Support 3.5MM stereo audio output
Antenna interface BNC
Support 3.5MM audio jack FM antenna
Screen 2.4inch Contact screen
Output audio power 1.5W
Shell size: 120x115x48mm (without the sizes of protruding parts)
Frequency Range:
FM: 64108MHZ/RDS function
LW: 153500KHZ
MW: 5201710KHZ
SW: 173030000KHZ
SSB: 173030000KHZ
colour: black
Material: aluminum alloy
Package Contents:
1 x Radio Receiver
1 x Antenna
1 x USB Cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/ 13cm.
