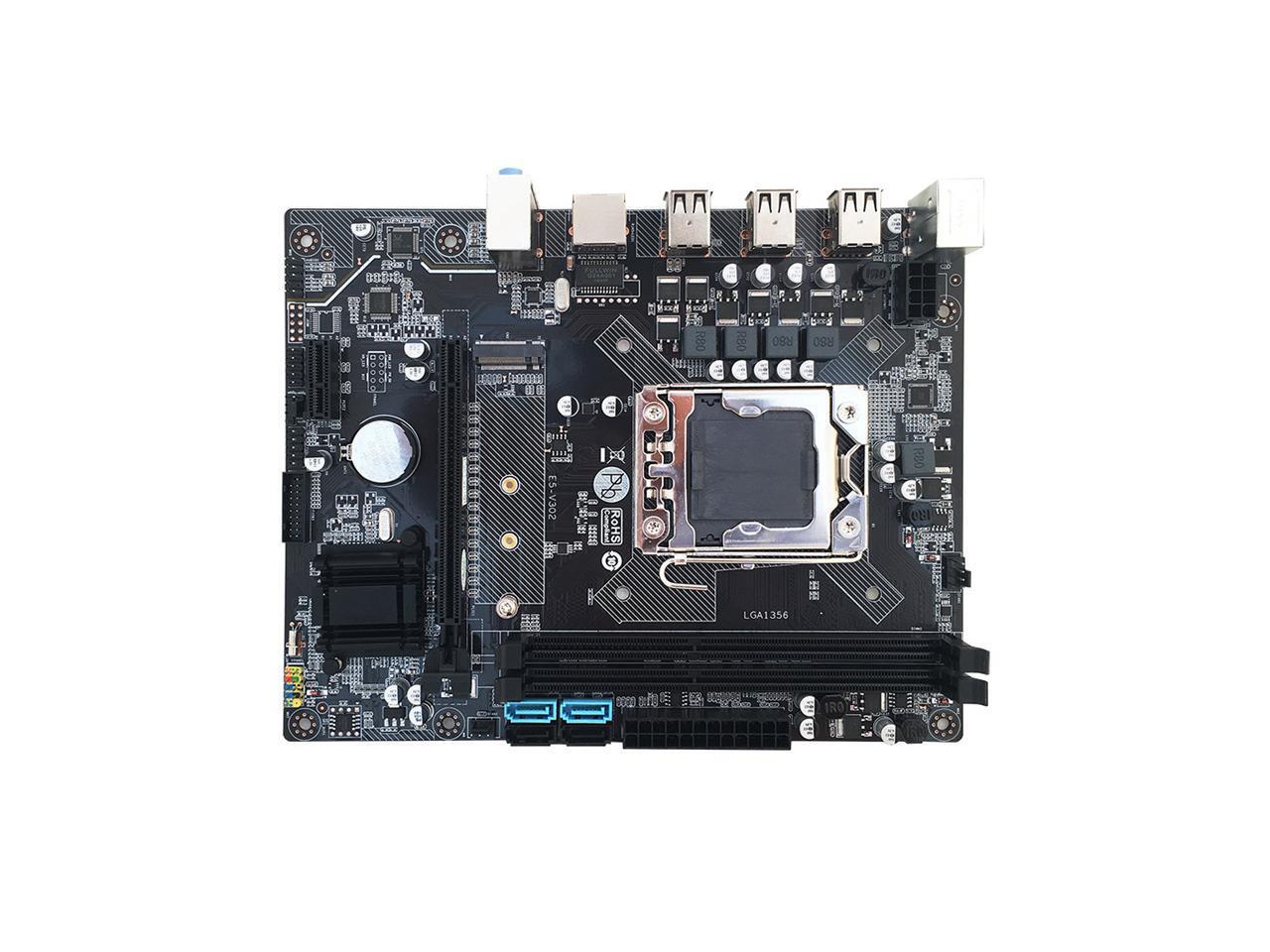

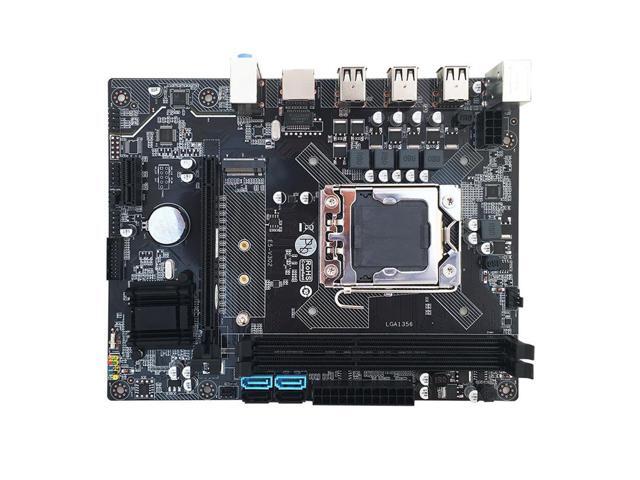

X79 Computer Motherboard LGA 1356 CPU DDR3 Support M.2 Server Memory E52430 CPU SixCore HM65 Chip Computer Motherboard

Bundle:Motherboards
Quality Certification:ce
Chipset:Intel X99
Socket Type:LGA 755
Storage Interface Type:U.2
Item Condition:
Onboard LAN:1x RJ45
Package:Yes
Model Number:
Application:Desktop
With CPU:Yes
Special Function:RGB
Maximum Ram Capacity:16 GB
Chipset Manufacturer:AMD
Back I/O Ports:1x RJ45
Support Memory Type:DDR
Usage Scenario:Server
Number of PCI:2pcs
PCI E standards:PCI E 2.0
Origin:CN(Origin)
Certification:NONE
Form Factor:MiniITX
Product name:X79 computer motherboard
Material:PCBmetal
Memory type:DDR3 106613331600MHz (REG ECC or ordinary desktop memory); memory slot

1. Gigabit network card: RTL8111H Gigabit network card, dual indicator design, stable and fast, support diskless boot
2. DDR3 memory, supports normal memory and RECC server memory, but cannot be mixed at the same time
3. The design of allboard allsolid capacitors is more stable and durable than ordinary capacitors.
4. NVME PCIE 3.0 X4channel M.2 highspeed hard disk, 2280 theoretical bandwidth can reach 6GB/S, does not support M.2 hard disk with NGFF interface SATA channel
5. Easy installation: This product is very easy to install, no additional tools are needed, and the installation process is very convenient.
Product name: X79 computer motherboard
Motherboard chip:
Integrated sound card/network card, main chipset for HM65 and other chip series
Audio chip integrated 6channel audio chip
Network card chip integrated RTL8111H Gigabit network card
Processor specifications:
CPU socket LGA1356
CPU type Zhiqiang series and i7 series
Memory specifications:
Memory type: DDR3 1066/1333/1600MHz (REG ECC or ordinary desktop memory); memory slot 2*DDR3 DIMM
Expansion slot:
1*PCIE X16 graphics slot
1*PCIE X1 slot
1*USB2.0 slot (1 group)
1*USB3.0 interface (speed 2.0)
2*SATA3 interface
2*SATA2 interface
I/O interface:
PS/2 interface
PS/2 keyboard and mouse universal interface
1*RJ45 network interface
6*USB2.0 interface
Audio interface
Other parameters: one 8pin power jack (if it is connected to the middle of the board when only 4pin is connected), one 24pin power interface has 4 power supply modes
Colour:Black
Material:PCB+metal
Size:216 x 170mm
Package Contents:
1 * X79 computer motherboard
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/ 13cm.
