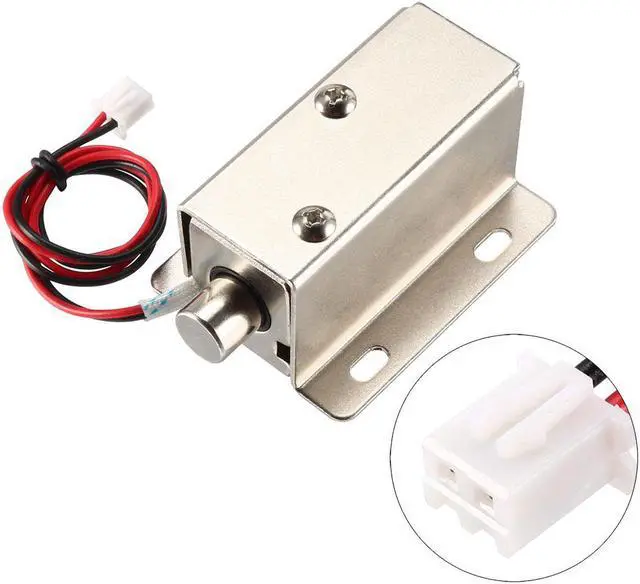

DC 24V 0.15A 9.3mm Electromagnetic Solenoid Lock Assembly for Electirc Lock Cabinet Door Lock

Description:

- Easy to install for the electric door lock or other automatic door lock systems with the mounting board.

- Widely used for the cabinet lock,locker locks,file cabinet locks ,luggage locks,electric locks,door locks,solenoid locks,drawer,newspaper boxes lock ,sauna lock,locker electromagnetic.

KEY_TAB

Specification:

- Voltage & Current : DC24V 0.15A

- Stroke & Force : 9.3mm, 100g

- Action Type: Push Pull

- Energized Forms: Continuous

- Lock Tongue Size: 9.3 x 10mm / 0.37 x 0.39inch (L*D)

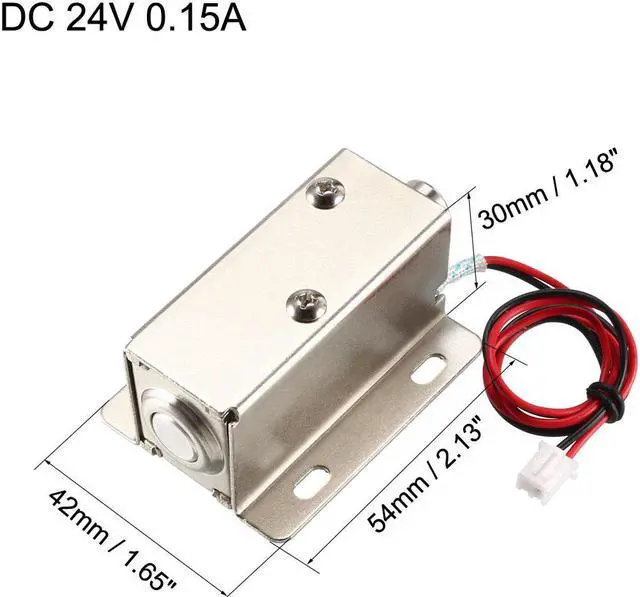

- Body Size: 54 x 42 x 30mm / 2.13 x 1.65 x 1.18inch (L*W*H)

- Mounting Hole Size: 7 x 3.5mm / 0.28 x 0.14 inch (L*W)

- Mounting Hole Distance: 30 x 32mm / 1.18 x 1.26 inch (L*W)

- Package Content : 1 x Electromagnet Solenoid Lock

KEY_TAB

Instructions for Use:

- When the circuits is charged, the lock tongue will stretch out by 9.3mm to lock the door.After the circuits is powered off, the lock tongue will pull back and the door will be unlocked.(different from other electromagnets lock)

- The red and black wires are the power cords of the electromagnetic lock, and the positive and negative electrodes are not distinguished.

- When it has been connected the wire and the current is available, the electric lock can control door's opening and closing.
