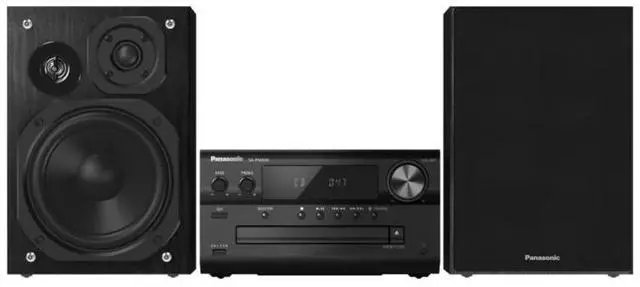

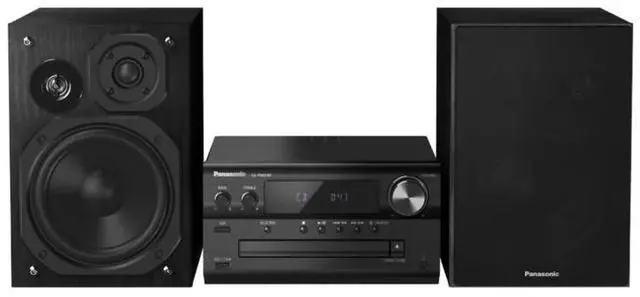

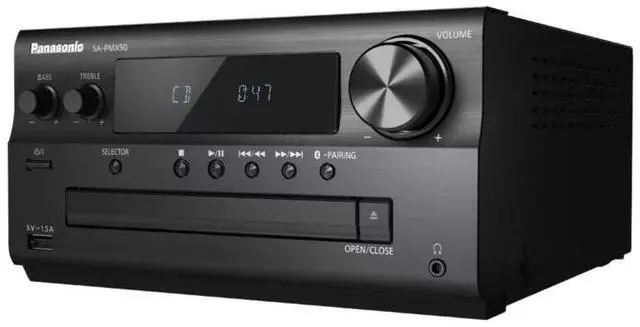

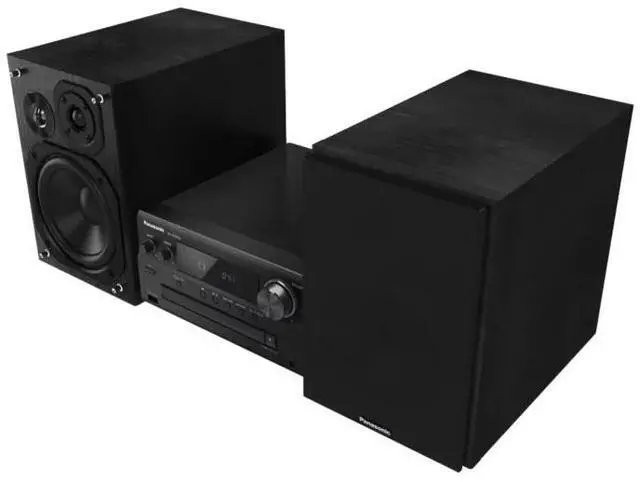

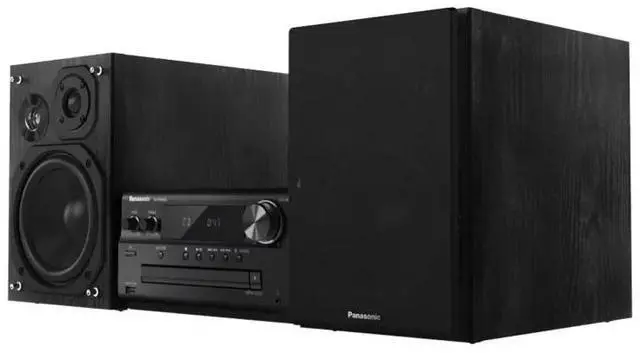

SC-PMX90 Compact Audio System
Specifications
| Amplifier Type | Lincs D-Amp (3rd generation) |
|---|---|
| Output Power (Front) | 60 W per channel (3 ohms, 1 kHz, 10 % THD) |
| Total RMS Power (Stereo) | 120 W |
| Front Speaker Configuration | 3-way, 3-speaker system (bass reflex) |
| Bass Enhancement | Bass reflex port |
| Woofer | 14 cm Bamboo Charcoal PP |
| Tweeter | 1.9 cm Silk Dome |
| Ultra Tweeter | 1.5 cm Piezo |
| Disc Playback Compatibility | CD-R / RW (Playability varies by content and disc quality) |
| Disc Formats | CD-DA / MP3 |
| USB Standard | USB 2.0 High-Speed |
| USB Playback Formats | DSD (2.8 MHz only), MP3, AIFF, AAC, FLAC (up to 192 kHz/24 bit), WAV (up to 192 kHz/24 bit) |
| USB Device Compatibility | USB flash drives only (Portable devices like phones/tablets not supported via extension cable) |
| USB Battery Charging | Supported for portable devices (1.5 A output) |
| USB-DAC Formats | DSD (2.8 MHz only), MP3, AIFF, FLAC (up to 192 kHz/24 bit), WAV (up to 192 kHz/24 bit) |
| USB-DAC Player App | Available for Windows and Mac OS |
| FM Radio Tuning | Auto tuning with 30 station presets |
| FM Antenna Terminal | 75 ohm unbalanced |
| AUX-In Auto Play | Yes |
| Bluetooth Version | Version 2.1 + EDR |
| Bluetooth Class | Class 2 (2.5 mW) |
| Bluetooth Codecs | SBC, AAC |
| Bluetooth Multi-pairing | Yes (Max 8 devices) |
| App Support | Panasonic Music Streaming App (iOS/Android via Bluetooth) |
| Sound Enhancement | D.Bass, Surround, XBS Master |
| High-Res Audio Support | Yes |
| EQ Presets | 4 Presets |
| Manual EQ Control | Bass / Treble |
| Bluetooth Re-Master | Yes |
| USB Ports | 1x USB Type-A, 1x USB Type-B |
| Audio Inputs | RCA Pin Jack, 3.5 mm Stereo Mini (AUX), Optical (for LPCM) |
| Audio Outputs | 3.5 mm Headphone Jack |
| Speaker Terminals | Screw type |
| Power Supply | AC 120 V, 60 Hz |
| Power Consumption (Active) | 40 W (Approximate) |
| Power Consumption (Standby) | 0.25 W (Approximate) |
| Power Consumption (Bluetooth) | 0.35 W (Approximate) |
| Convenience Features | Dimmer, Auto Off, Sleep Timer, Clock, Play Timer |
| Dimensions (Main Unit) | 211 x 114 x 267 mm (W x H x D) |
| Weight (Main Unit) | 2.8 kg |
| Dimensions (Speakers) | 161 x 238 x 262 mm (W x H x D) |
| Weight (Speakers) | 2.6 kg |
