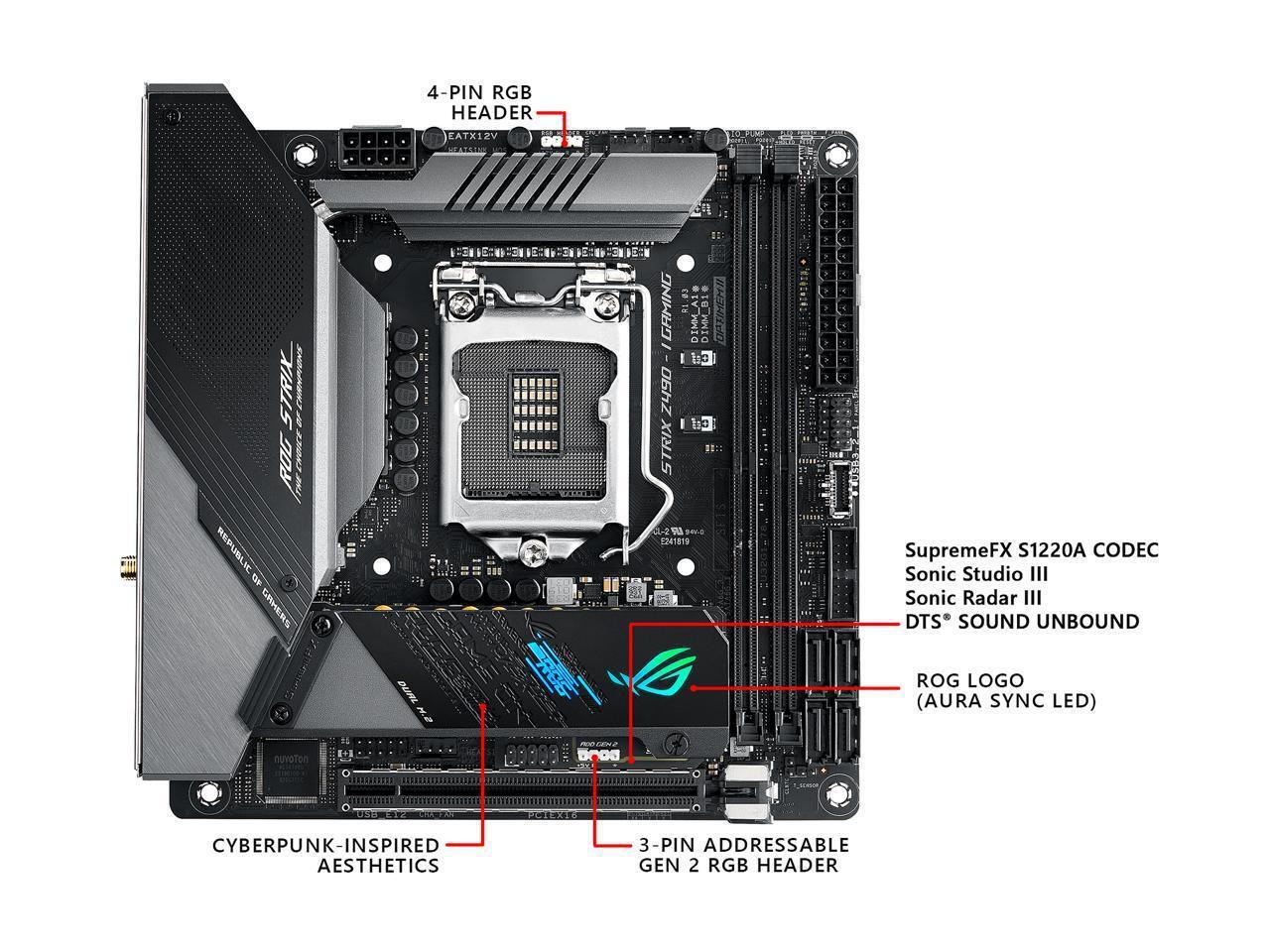

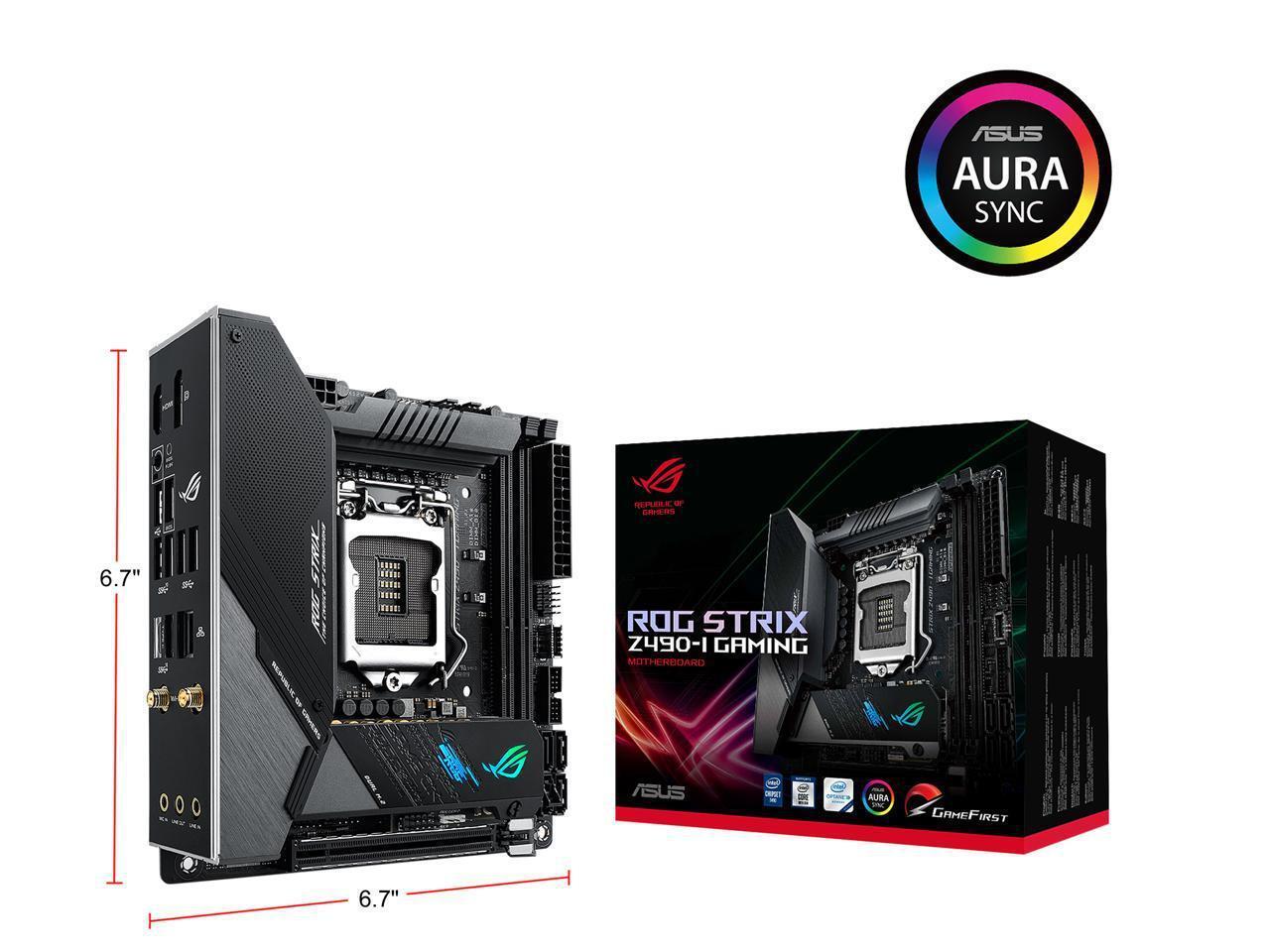

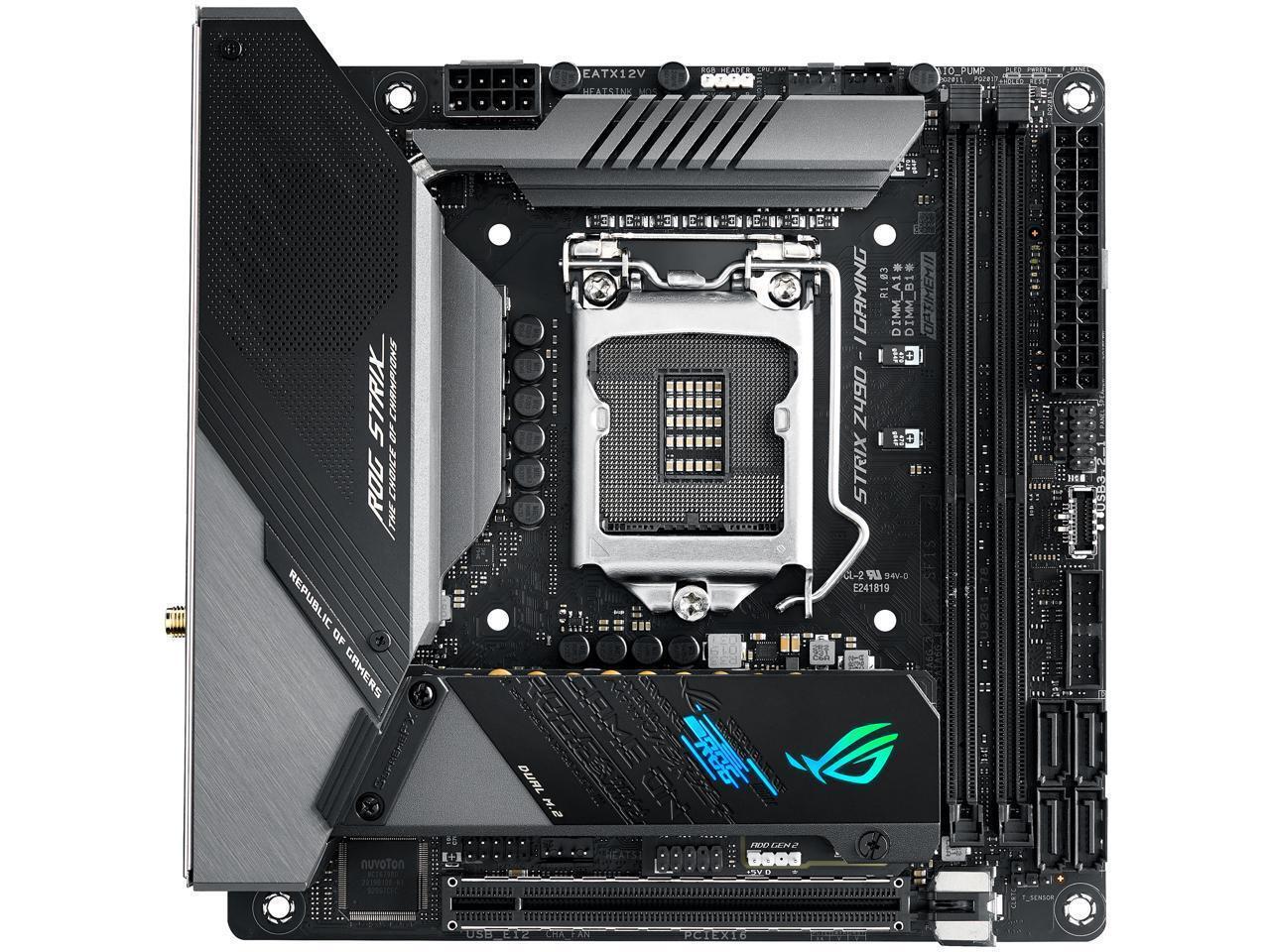

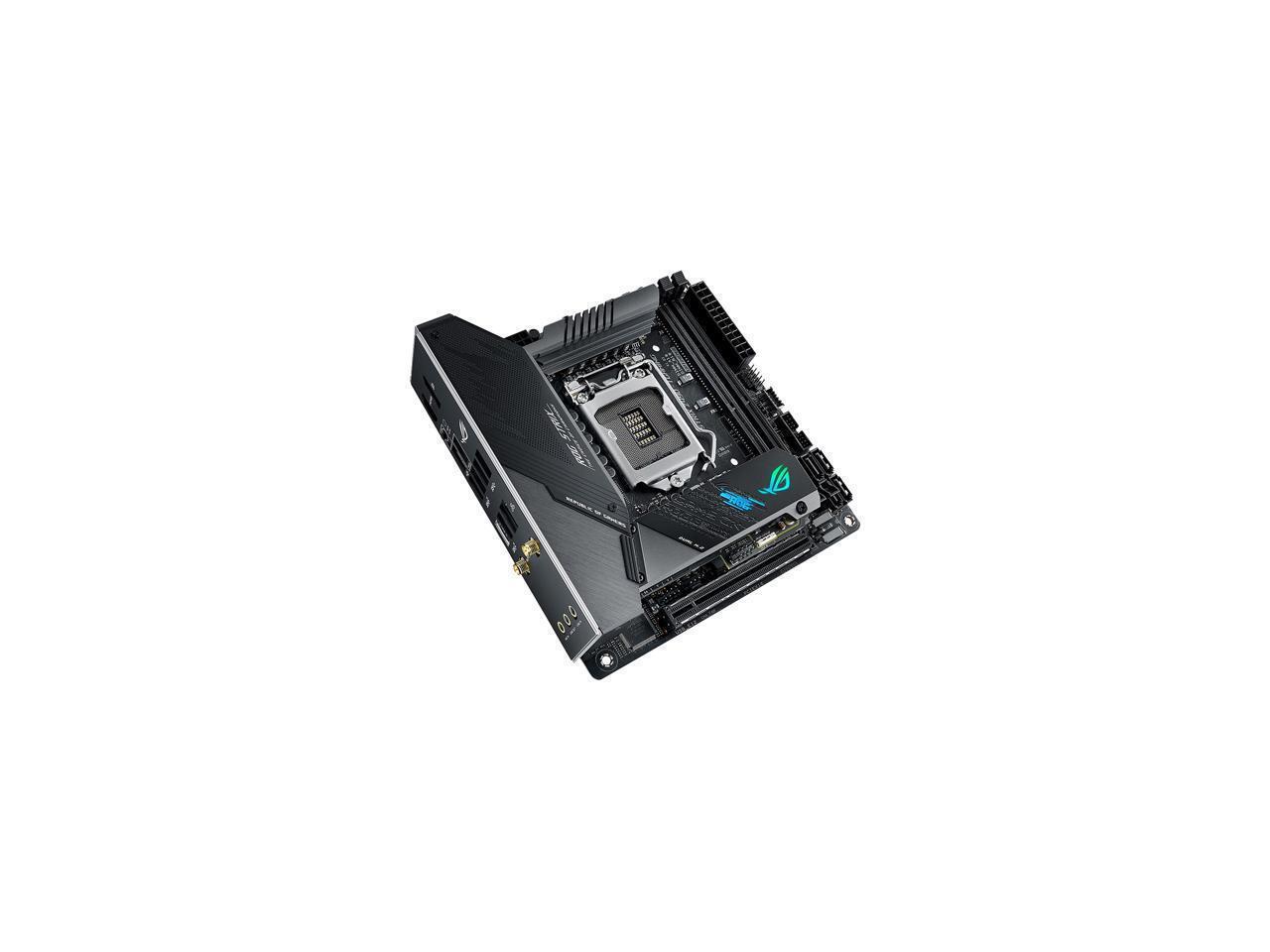

ASUS ROG STRIX Z490-I GAMING (WiFi 6) LGA 1200 (Intel 10th Gen) Intel Z490 SATA 6Gb/s Mini ITX Intel Motherboard (8+2 Power Stages, DDR4 4800, Intel 2.5Gb Ethernet, USB 3.2 Front Panel Type-C, HDMI 2
See more "z490 itx"
OUT OF STOCK.
Ships from Hong Kong.
Fees for brokerage and duty included in price. Most customers receive within 10-17 days.
- Intel LGA 1200 socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors

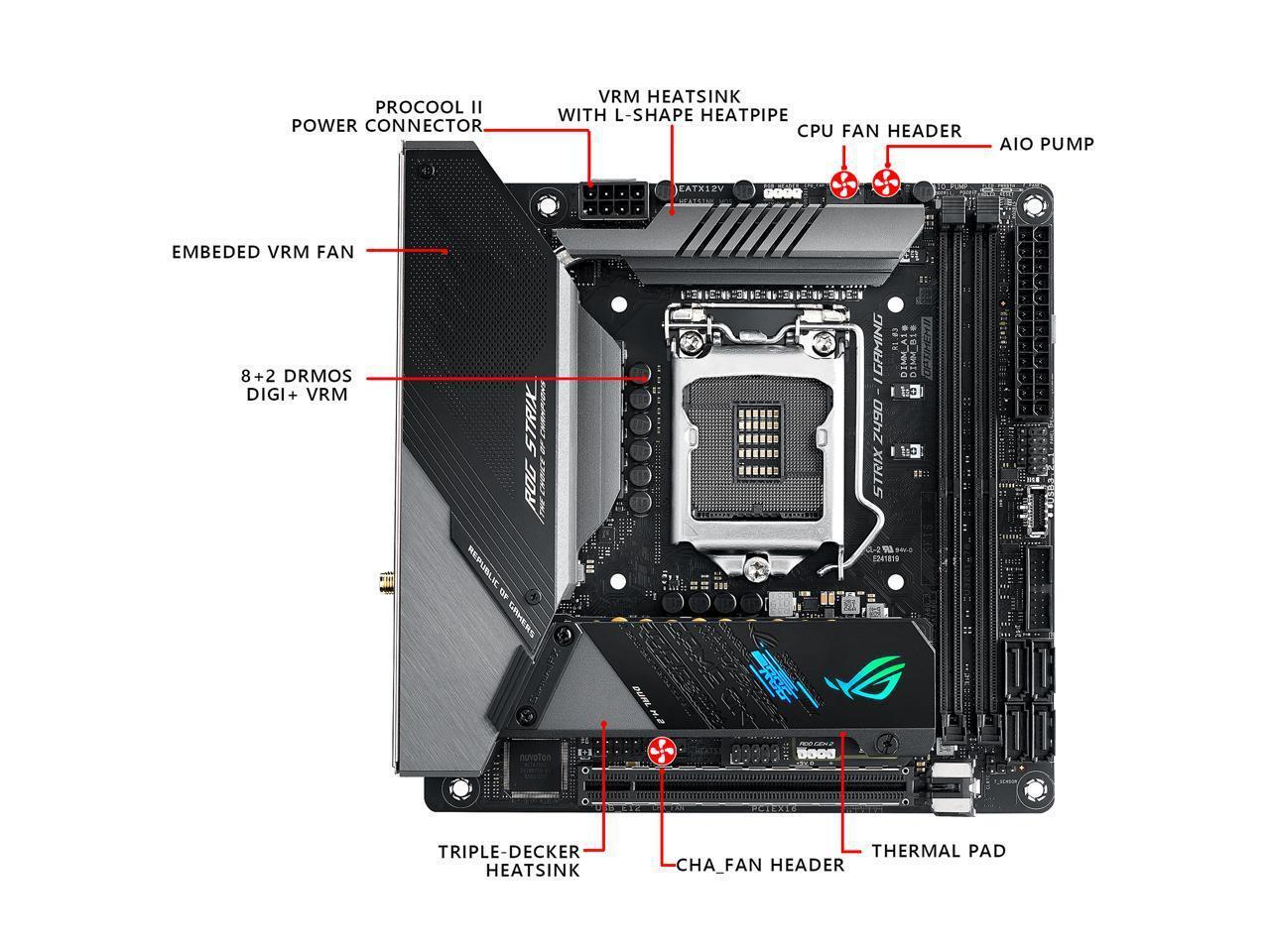

- Robust Power Solution: 8+2 Dr. MOS power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to provide reliable power when pushing CPU performance
- Optimized Thermal Design: Embed custom Delta Superflo VRM fan, Mos heatsink, L-shaped heat pipe and fan headers, features low-noise AI cooling to balance thermals and acoustics by reducing fan speeds and maintaining a 5 Celsius delta
- High-performance Gaming Networking: On-board Intel WiFi 6 AX201 (802.11 ax), Intel 2.5Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI 2.0a and DisplayPort 1.4 output, and featuring dual M.2, front panel USB 3.2 Gen 2 Type-C connector
- Industry-leading Gaming Audio: High fidelity audio with the SupremeFX S1220A codec, DTS Sound Unbound and Sonic Studio III draws you deeper into the game action
Overview
Specs
Reviews
CPU Socket Type LGA 1200 CPU Type Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 ** ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipsets Chipset Intel Z490 Onboard Video Onboard Video Chipset Supported only by
CPU with integrated graphic: 1 x DisplayPort 1.4 ** 1 x HDMI 2.0 a * Graphics specifications may vary between CPU types. ** Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www. intel. com for any update. Memory Number of Memory Slots 2×288pin Memory Standard DDR4 4800(O. C. )/ 4600(O. C)/ 4500(O. C)/ 4400(O. C)/ 4333(O. C. )/ 4266(O. C. )/ 4133(O. C. )/ 4000(O. C. )/ 3866(O. C. )/ 3733(O. C. )/ 3600(O. C. )/ 3466(O. C. )/ 3400(O. C. )/ 3200(O. C. )/ 3000/ 2933/ 2800(O. C. )/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory * 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, Refer to www. asus. com for the Memory QVL (Qualified Vendors Lists). Maximum Memory Supported 64GB Channel Supported Dual Channel Expansion Slots PCI Express 3.0 x16 Intel 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) *1 *1 Support PCIe bifurcation for RAID on CPU function. Storage Devices SATA 6Gb/s 4 x SATA 6Gb/s M.
2 1 x M. 2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 1 x M. 2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*2 * 2 When the M. 2_2 Socket is operating in SATA mode, SATA port 2 will be disabled. Intel Optane Ready Yes SATA RAID 0/1/5/10 Onboard Audio Audio Chipset ROG SupremeFX High Definition Audio CODEC S1220A Audio Channels 8 Channels * Choose the chassis with HD audio module in front panel to support 8-channel audio output. * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. Onboard LAN LAN Chipset Intel I225-V Max LAN Speed 10/100/1000/2500Mbps Wireless LAN Intel Wi-Fi 6 AX201 2x2 Wi-Fi 6 ( 802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4G bps max data rate Supports dual band frequency 2.4 /5

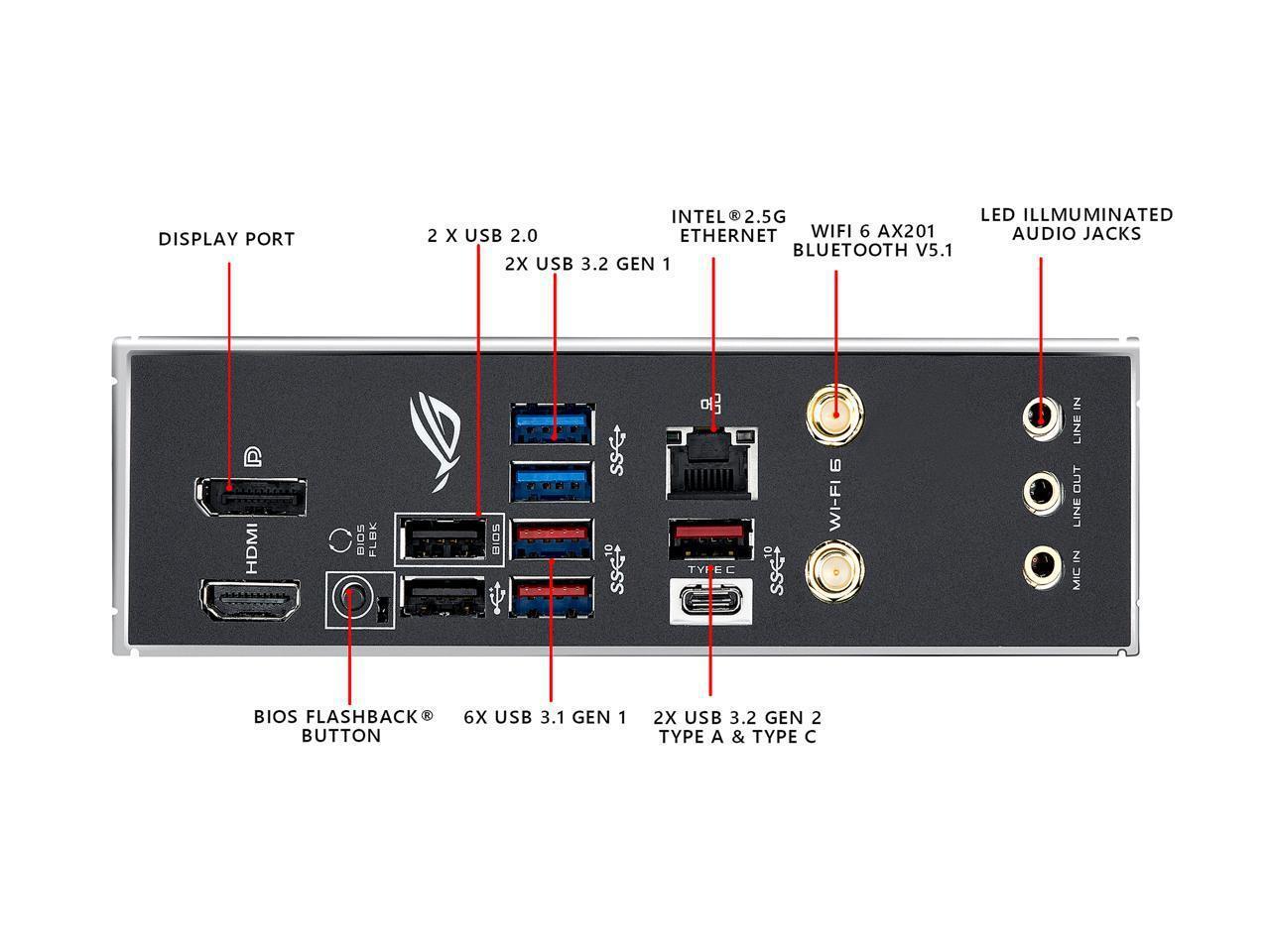

GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports CNVI interface Bluetooth Bluetooth v 5.1 * * BT 5.1 function will be ready in Windows 10 build 19041 or later. Rear Panel Ports Back I/O Ports 1 x Intel I225-V 2.5G b Ethernet 1 x DisplayPort 1 x HDMI 4 x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C) 2 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 (one port can be switched to USB BIOS FlashBack) 1 x USB BIOS FlashBack Button (s) 1 x ASUS Wi-Fi Module 3 x LED-illuminated audio jacks Internal I/O Connectors Onboard USB 1 x USB 3.2 Gen 2 front panel connector 1 x USB 3.2 Gen 1 connector (s) support (s) additional 2 USB 3.2 Gen 1 port (s) 1 x USB 2.0 connector (s) support (s) additional 2 USB 2.0 port (s) Other Connectors 1 x CPU Fan connector (s) 1 x Chassis Fan connector (s) 1 x AIO_PUMP connector 1 x Aura RGB Strip Header 1 x Addressable Gen 2 header (s) 1 x Front panel audio connector (s) (AAFP) 1 x Internal speaker connector (s) 1 x System panel (s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper (s) 1 x Thermal sensor connector Physical Spec Form Factor Mini ITX LED Lighting RGB Dimensions (W x L) 6.7" x 6.7" Power Pin 1 x 24-pin EATX Power connector (s) 1 x 8-pin ATX 12V Power connector (s) Windows Compatibility Windows 11 Supported Features
Features Software Features: ROG Exclusive Software - RAM
Cache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - 5-Way Optimization with AI Overclocking TPU EPU Digi+ VRM Xpert 4 Turbo app - EZ update WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey ASUS
Special Features: ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M. 2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Procool II - Pre- mounted I/O shield - SafeSlot AURA Sync - Standard RGB header - Addressable Gen 2 RGB header
BIOS: 256MB Flash ROM, UEFI
AMI BIOS Manageability: WOL by PME, PXE
Operating System: Windows 10 64-bit
Packaging Package Contents Accessories: User's manual 4 x SATA 6Gb/s cable (s) 2 x M. 2 Screw Package 1 x Supporting DVD 1 x CABLE TIE BLACK 1 x ROG Strix stickers 1 x Extension cable for Addressable LED 1 x Panel cable 1 x ROG Thank you card 1 x Wi-Fi moving antenna 1 ROG key chain
CPU with integrated graphic: 1 x DisplayPort 1.4 ** 1 x HDMI 2.0 a * Graphics specifications may vary between CPU types. ** Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www. intel. com for any update. Memory Number of Memory Slots 2×288pin Memory Standard DDR4 4800(O. C. )/ 4600(O. C)/ 4500(O. C)/ 4400(O. C)/ 4333(O. C. )/ 4266(O. C. )/ 4133(O. C. )/ 4000(O. C. )/ 3866(O. C. )/ 3733(O. C. )/ 3600(O. C. )/ 3466(O. C. )/ 3400(O. C. )/ 3200(O. C. )/ 3000/ 2933/ 2800(O. C. )/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory * 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, Refer to www. asus. com for the Memory QVL (Qualified Vendors Lists). Maximum Memory Supported 64GB Channel Supported Dual Channel Expansion Slots PCI Express 3.0 x16 Intel 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) *1 *1 Support PCIe bifurcation for RAID on CPU function. Storage Devices SATA 6Gb/s 4 x SATA 6Gb/s M.
2 1 x M. 2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 1 x M. 2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*2 * 2 When the M. 2_2 Socket is operating in SATA mode, SATA port 2 will be disabled. Intel Optane Ready Yes SATA RAID 0/1/5/10 Onboard Audio Audio Chipset ROG SupremeFX High Definition Audio CODEC S1220A Audio Channels 8 Channels * Choose the chassis with HD audio module in front panel to support 8-channel audio output. * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. Onboard LAN LAN Chipset Intel I225-V Max LAN Speed 10/100/1000/2500Mbps Wireless LAN Intel Wi-Fi 6 AX201 2x2 Wi-Fi 6 ( 802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4G bps max data rate Supports dual band frequency 2.4 /5
GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports CNVI interface Bluetooth Bluetooth v 5.1 * * BT 5.1 function will be ready in Windows 10 build 19041 or later. Rear Panel Ports Back I/O Ports 1 x Intel I225-V 2.5G b Ethernet 1 x DisplayPort 1 x HDMI 4 x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C) 2 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 (one port can be switched to USB BIOS FlashBack) 1 x USB BIOS FlashBack Button (s) 1 x ASUS Wi-Fi Module 3 x LED-illuminated audio jacks Internal I/O Connectors Onboard USB 1 x USB 3.2 Gen 2 front panel connector 1 x USB 3.2 Gen 1 connector (s) support (s) additional 2 USB 3.2 Gen 1 port (s) 1 x USB 2.0 connector (s) support (s) additional 2 USB 2.0 port (s) Other Connectors 1 x CPU Fan connector (s) 1 x Chassis Fan connector (s) 1 x AIO_PUMP connector 1 x Aura RGB Strip Header 1 x Addressable Gen 2 header (s) 1 x Front panel audio connector (s) (AAFP) 1 x Internal speaker connector (s) 1 x System panel (s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper (s) 1 x Thermal sensor connector Physical Spec Form Factor Mini ITX LED Lighting RGB Dimensions (W x L) 6.7" x 6.7" Power Pin 1 x 24-pin EATX Power connector (s) 1 x 8-pin ATX 12V Power connector (s) Windows Compatibility Windows 11 Supported Features
Features Software Features: ROG Exclusive Software - RAM
Cache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - 5-Way Optimization with AI Overclocking TPU EPU Digi+ VRM Xpert 4 Turbo app - EZ update WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey ASUS
Special Features: ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M. 2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Procool II - Pre- mounted I/O shield - SafeSlot AURA Sync - Standard RGB header - Addressable Gen 2 RGB header
BIOS: 256MB Flash ROM, UEFI
AMI BIOS Manageability: WOL by PME, PXE
Operating System: Windows 10 64-bit
Packaging Package Contents Accessories: User's manual 4 x SATA 6Gb/s cable (s) 2 x M. 2 Screw Package 1 x Supporting DVD 1 x CABLE TIE BLACK 1 x ROG Strix stickers 1 x Extension cable for Addressable LED 1 x Panel cable 1 x ROG Thank you card 1 x Wi-Fi moving antenna 1 ROG key chain
