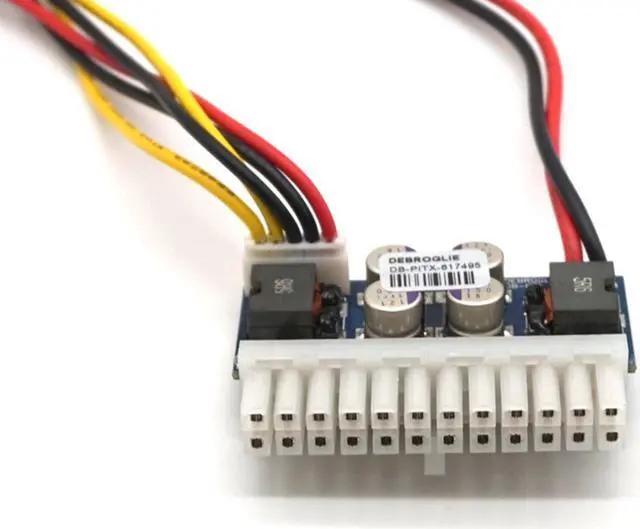

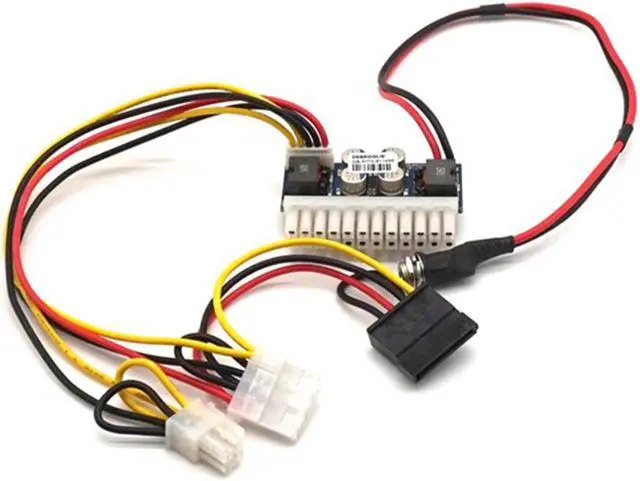

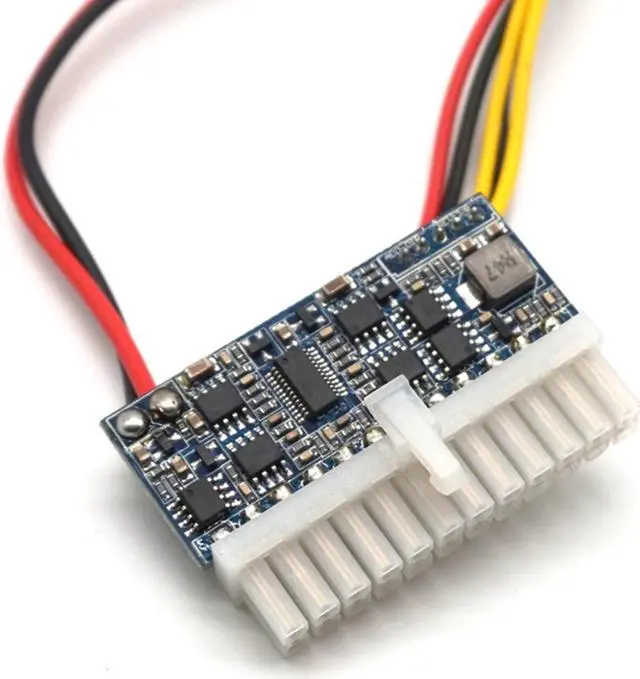

Weastlinks DC 12V 160W 24-Pin ATX Switch PSU Car Auto Mini ITX Power Supply Module Cable
- Input Voltage: DC 12V.
- Output ATX: Max 160W.
- Output Power: 84W.
- Standard 24pin ATX Power Connector.
+
+
Overview
Specs
Reviews
Features:
Material: Plastic
Color: Black+Yellow+Red
InputVoltage: DC 12V
OutputATX: Max 160W
OutputPower: 84W Standard 24pin ATX
PowerConnectorPowerEfficiency: = 92%
Operatingtemperature: 0° - 40°
Storagetemperature: -20° - 80°
Size: 55×33×13mm/ 2.17 × 1.30 × 0.51 in (Approx.)
PCBSize: 55×22mm/ 2.17 × 0.87 in (Approx.)
Length: (Approx.)

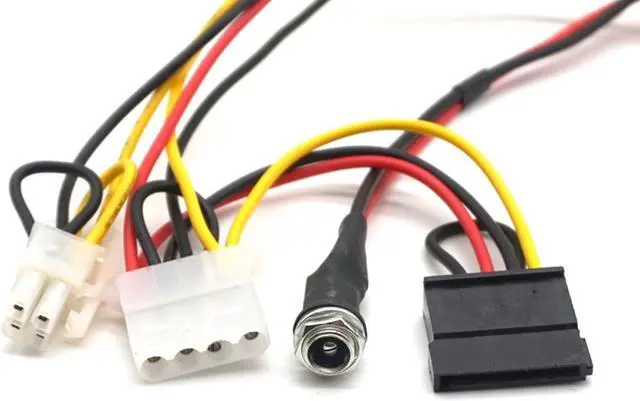

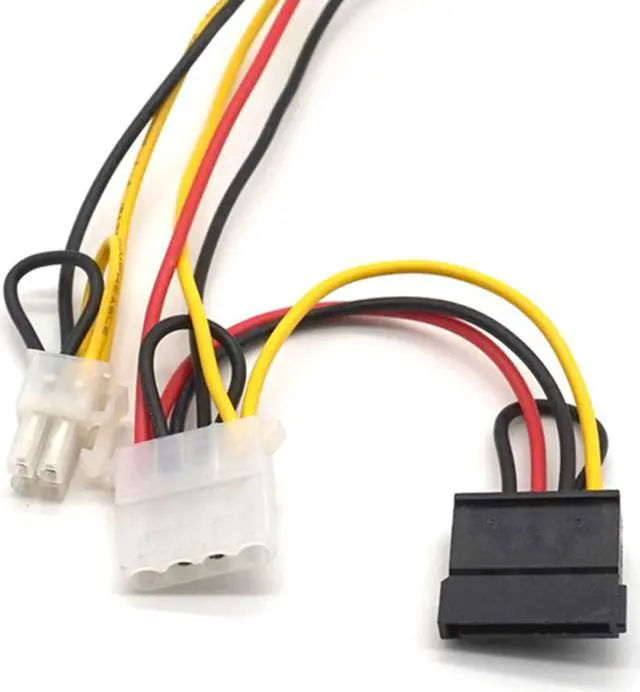

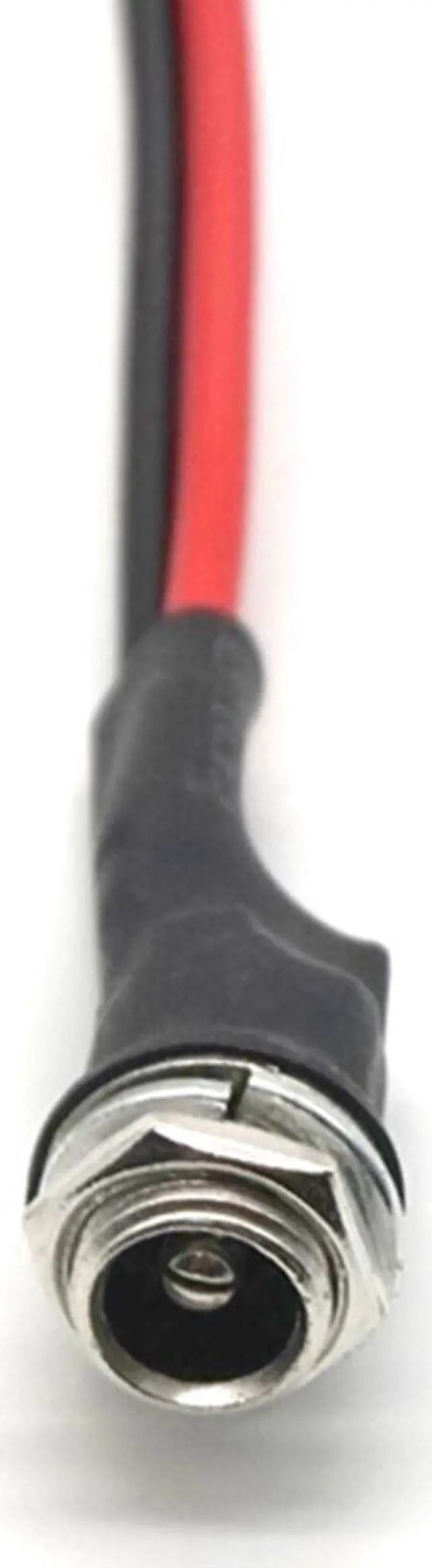

DC5.5*2.5(16AWG): 300mm/ 11.81 in 4-pin
IDEfemale(18AWG): 240mm/ 9.45 in 15-pin
SATA(18AWG): 240mm/ 9.45 in
CPU4-pin(18AWG): 240mm/ 9.45 in 4-pin IDE to 15-pin
SATA(18AWG): 100mm/ 3.94 in
Outputcharacteristics: Output Current +12V ( 11.4V ~ 12.6V ): 3A Output Current +5V ( 4.75V ~ 5.25V ): 5A Output Current + 3.3V ( 3.14V ~ 3.47V ): 5A Output Current +5VSB ( 4.75V ~ 5.25V ): 1A Output Current -12V (- 11.4V ~- 12.6V ): 0.1A
Application: Mini computer, all-in-one computer, POS machine, digital set top box, ITX case, network server, advertisement machine, bank terminal, etc.
PackageIncluded: 1 X DC Cable
Material: Plastic
Color: Black+Yellow+Red
InputVoltage: DC 12V
OutputATX: Max 160W
OutputPower: 84W Standard 24pin ATX
PowerConnectorPowerEfficiency: = 92%
Operatingtemperature: 0° - 40°
Storagetemperature: -20° - 80°
Size: 55×33×13mm/ 2.17 × 1.30 × 0.51 in (Approx.)
PCBSize: 55×22mm/ 2.17 × 0.87 in (Approx.)
Length: (Approx.)
DC5.5*2.5(16AWG): 300mm/ 11.81 in 4-pin
IDEfemale(18AWG): 240mm/ 9.45 in 15-pin
SATA(18AWG): 240mm/ 9.45 in
CPU4-pin(18AWG): 240mm/ 9.45 in 4-pin IDE to 15-pin
SATA(18AWG): 100mm/ 3.94 in
Outputcharacteristics: Output Current +12V ( 11.4V ~ 12.6V ): 3A Output Current +5V ( 4.75V ~ 5.25V ): 5A Output Current + 3.3V ( 3.14V ~ 3.47V ): 5A Output Current +5VSB ( 4.75V ~ 5.25V ): 1A Output Current -12V (- 11.4V ~- 12.6V ): 0.1A
Application: Mini computer, all-in-one computer, POS machine, digital set top box, ITX case, network server, advertisement machine, bank terminal, etc.
PackageIncluded: 1 X DC Cable
