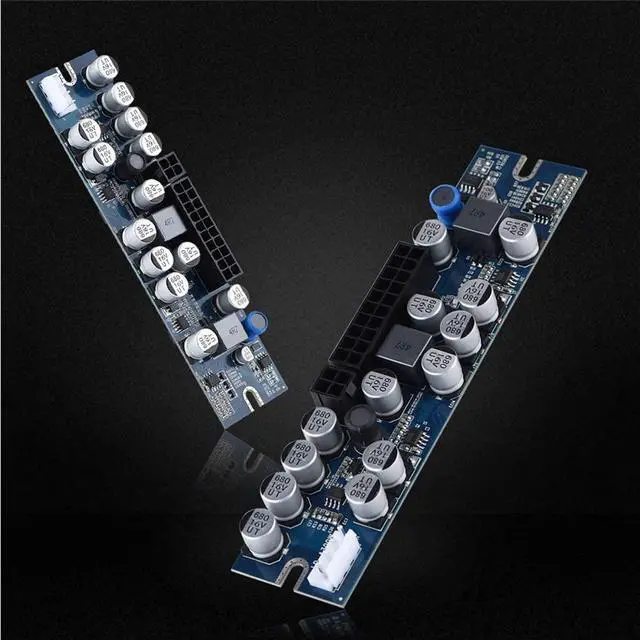

PC Power Supply Module with 24Pin Connect/AUX/SATA Cable, Computer PSU DC 12V Input 300W for Mini-ITX and 1U Case
- Professional power supply module, suitable for mini-ITX and 1U case.
- 300W Output and 12V DC Input, and it must be accompanied with the power adapter.
- Industrial solid capacitor allows super performance and high temperature resistance, stable and reliable.
- Full Protection: Over-current protection and short circuit protection, safe to use.
- 24Pin ATX connecting cable for perfect connection and suitability, plug directly and play.
+
+
Overview
Specs
Reviews
Specifications:
Color: As the pictures shown.
Input voltage: 12V DC (11.4-12.6V)
Input Current: Max. 25A
Output Power: 300W
Power Efficiency: 85%
Applications: MINI computers, HTPC, POS, Digital Set-Top Boxes, ITX Case, Network Servers, AD Machines, Bank Terminals, Mining Machines, etc.
Working Temperature/ Humidity: 0 ~ 55/ 45% ~ 75%
Storage Temperature/ Humidity: -40 ~ 70/ 10% ~ 90%
Atmospheric Pressure: 86Kpa ~ 106Kpa
Module Board Size: Approx. 154 x 35 x 15mm/ 6.1 x 1.4 x 0.6in
Package Size: Approx. 160 x 80 x 40mm/ 6.3 x 3.1 x 1.6in
Package Weight: 189g

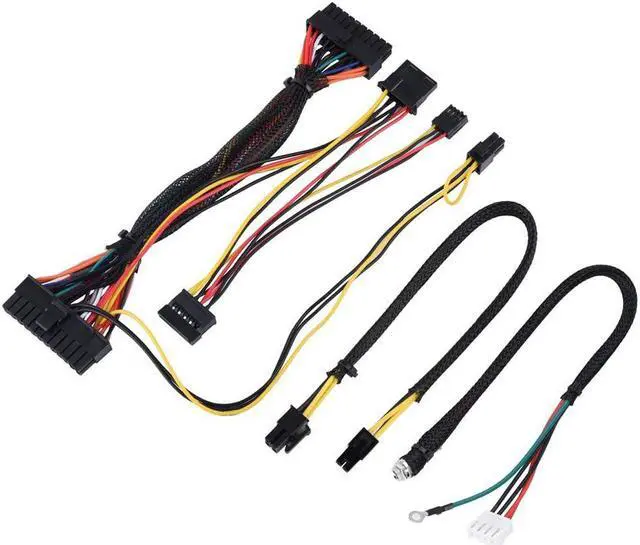

Package includes:
1 x 300W Power Supply Module
1 x 24Pin to 20Pin Cable
1 x DC Input Cable
1 x AUX Cable
