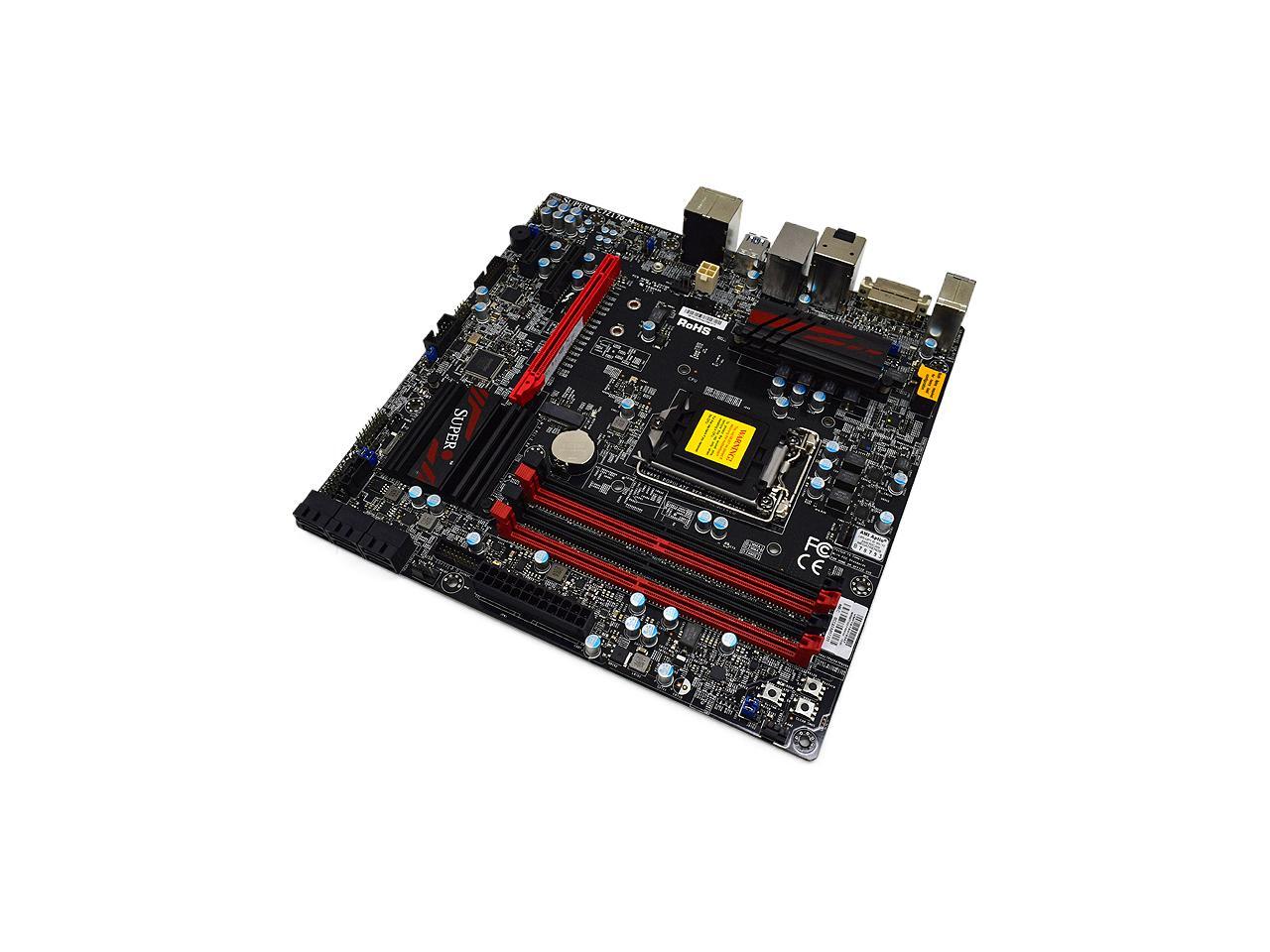

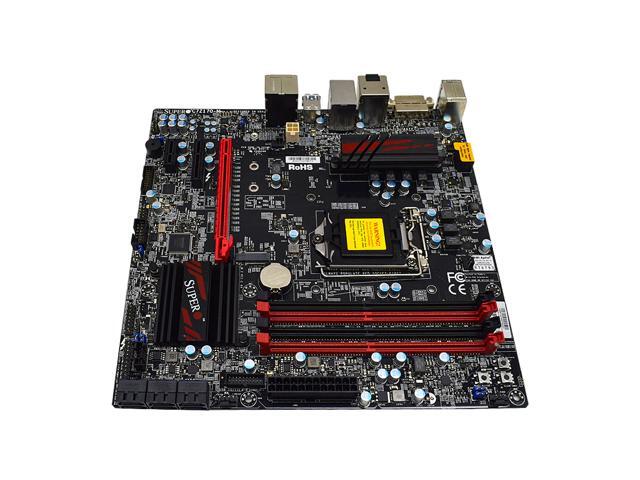

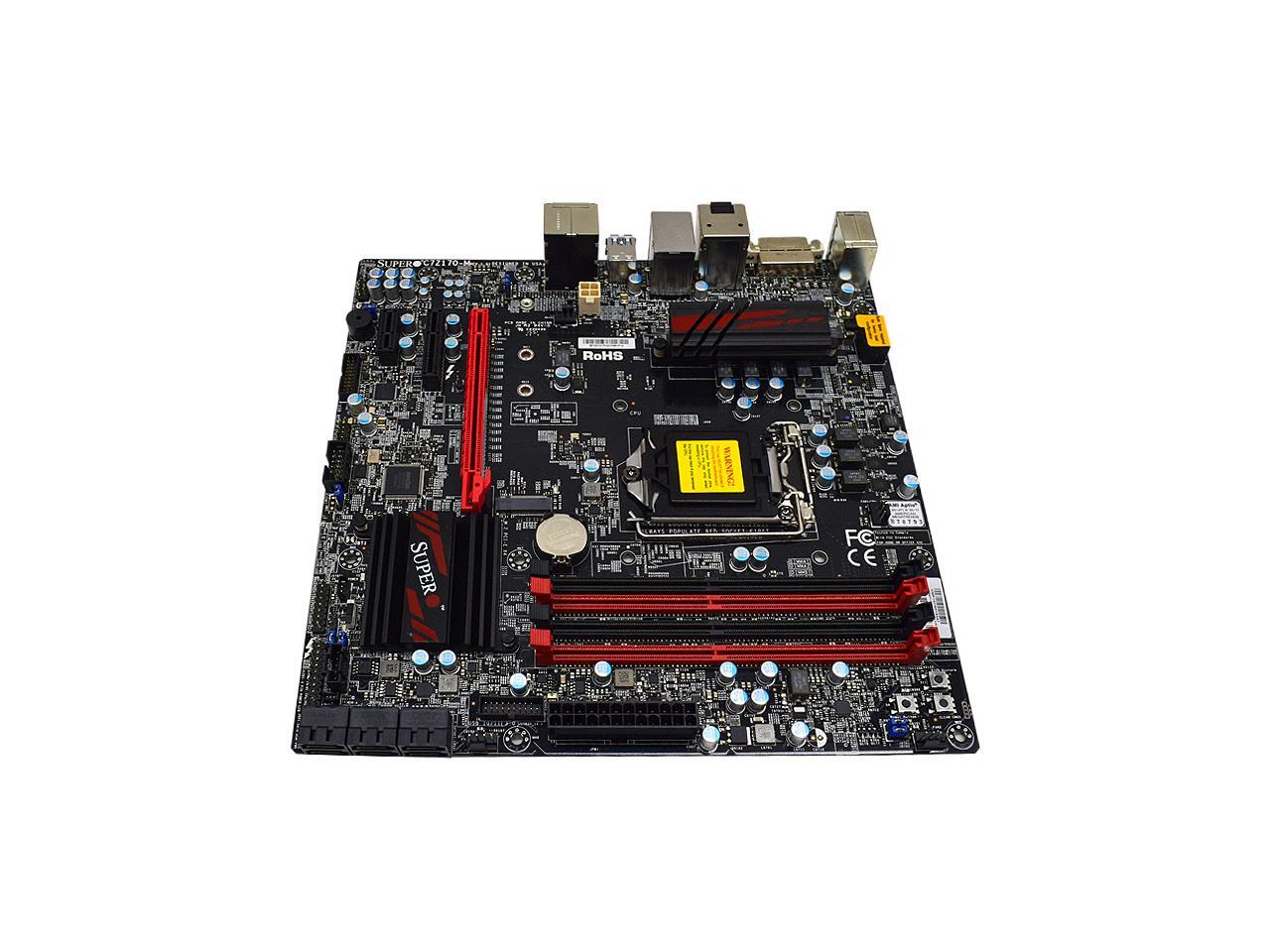

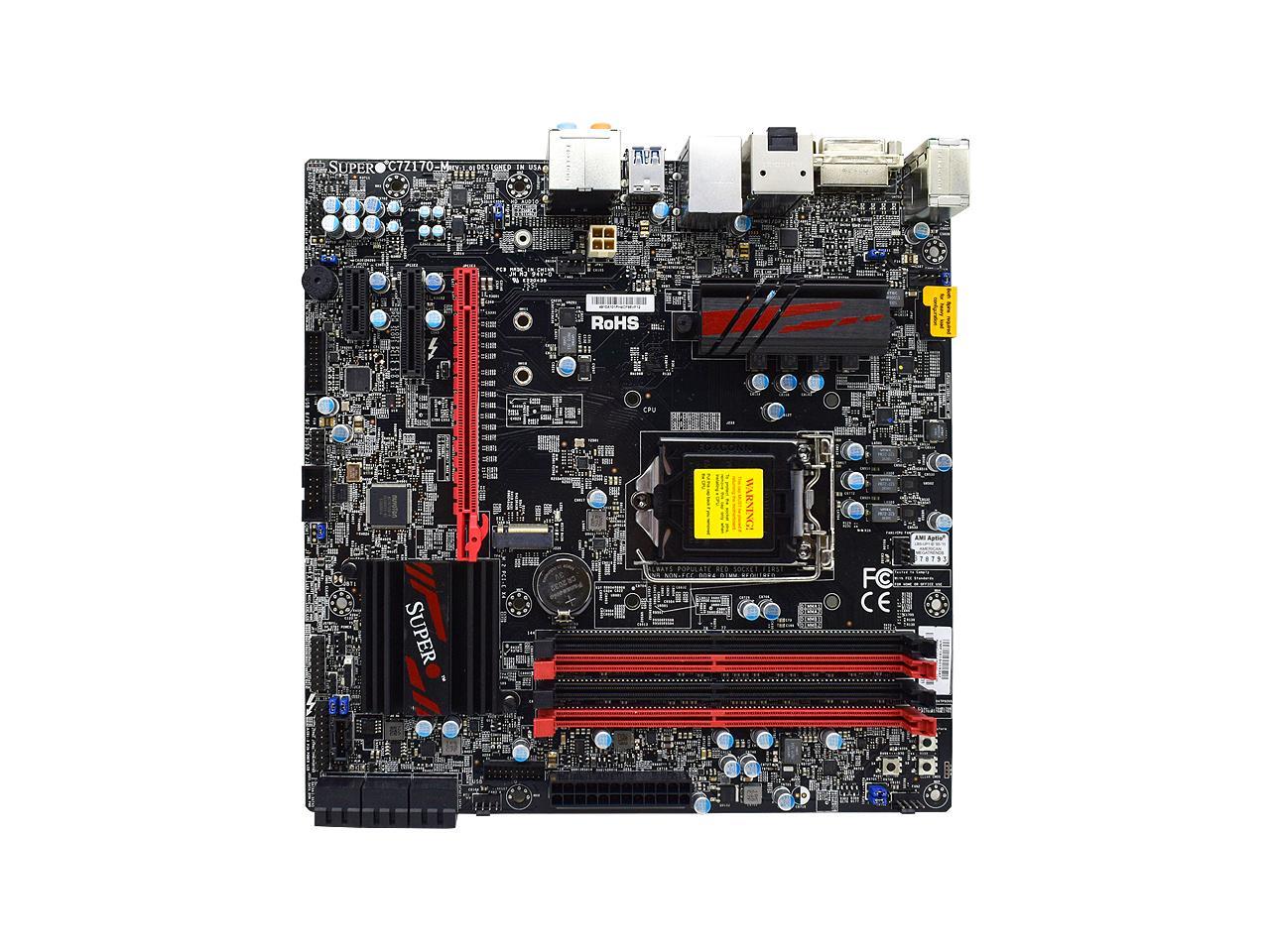

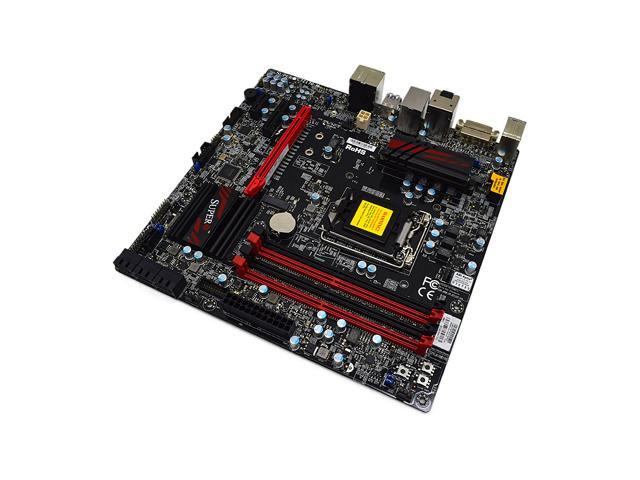

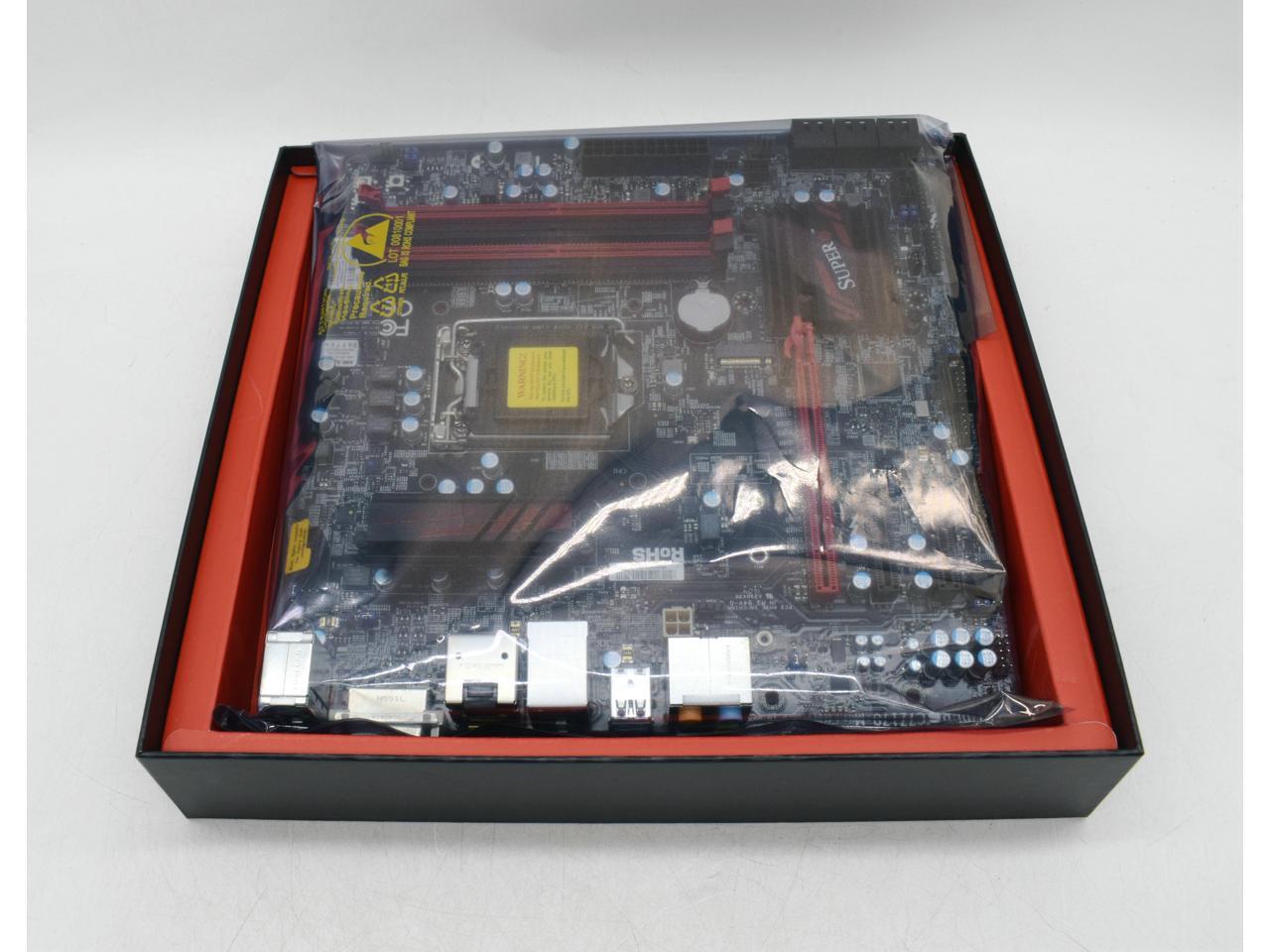

Supermicro C7Z170-M LGA1151/ Intel Z170/ DDR4/ SATA3&USB3.1/ M.2/ A&GbE/ MicroATX Motherboard

Specifications
Product SKUs
MBD-C7Z170-M
C7Z170-M

Physical Stats
Form Factor
Micro-ATX
Dimensions
9.6" x 9.6" (24.38cm x 24.38cm)

Processor/Cache
CPU
Intel® 6th Generation Core? i3 series, Intel® 6th Generation Core? i5 series, Intel® 6th Generation Core? i7 series, Intel® 7th Generation Core? i3 series, Intel® 7th Generation Core? i5 series, Intel® 7th Generation Core? i7 series.
Socket H4 (LGA 1151) supported, CPU TDP support Up to 115W TDP

System Memory
Memory Capacity
64GB Unbuffered non-ECC UDIMM, DDR4-3200MHz (OC), in 4 DIMM slots
Memory Type
2400/2133/1866 Non-ECC DDR4 UDIMM
DIMM Sizes
2GB, 4GB, 8GB, 16GB
Memory Voltage
1.2V

On-Board Devices
Chipset
Intel® Z170 Express
SATA
Intel® Z170 Express controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
+ 1 PCI-E M.2(PCI-E x4, 2260/2280/22110)(No Raid Support)
Network Controllers
Single LAN with Intel® single Ethernet PHY i219V
Audio
ALC 1150 HD Audio
Graphics
***Display Port support up to DP1.2, HDMI support up to HDMI1.4***

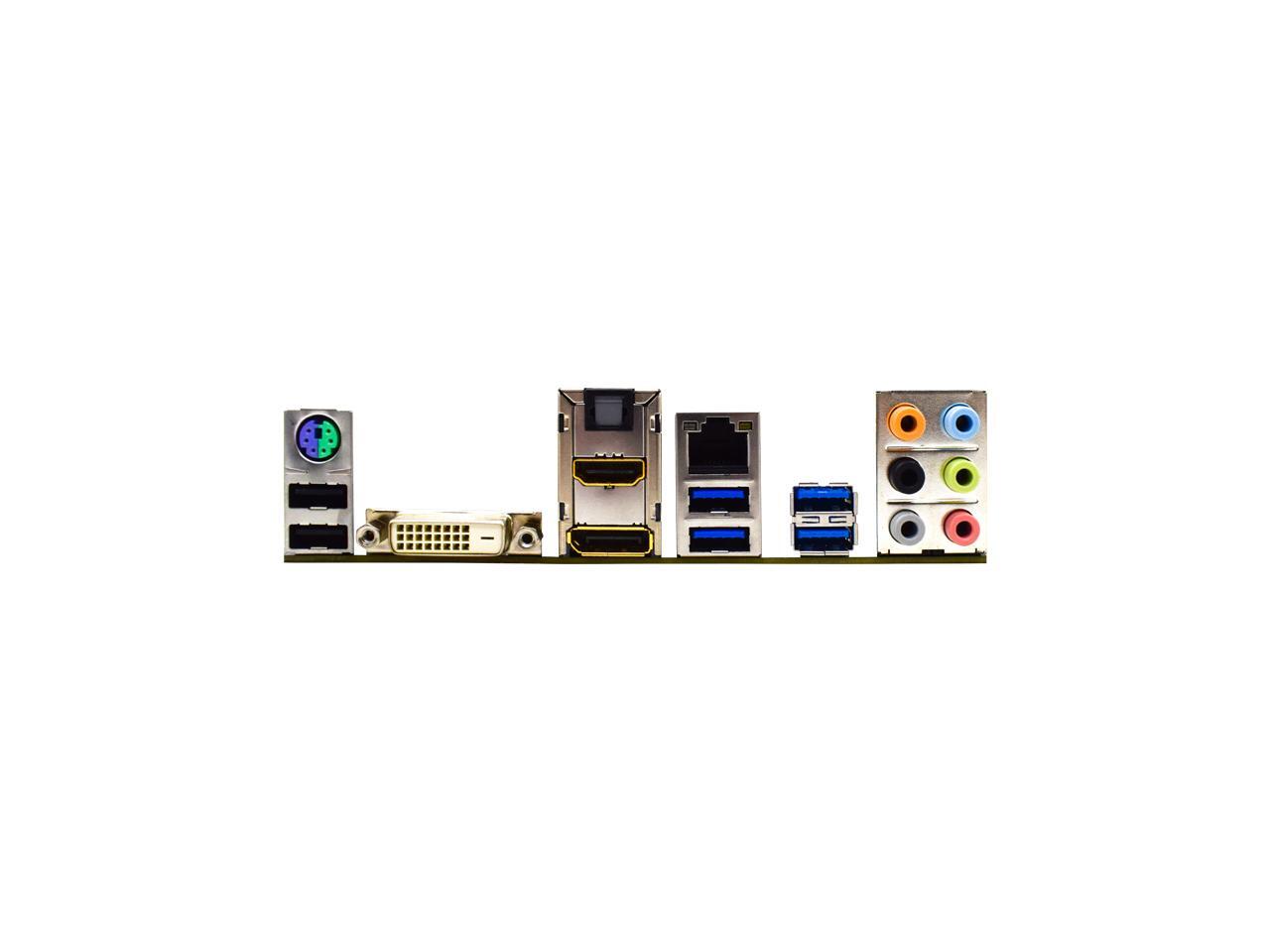

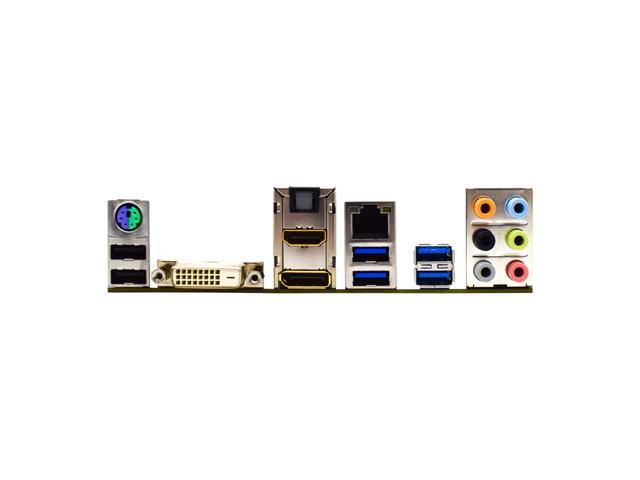

Input / Output
LAN
1 RJ45 Gigabit Ethernet LAN ports
USB
4 USB 2.0 ports (2 rear + 2 headers),
6 USB 3.0 ports (4 rear + 2 headers) Type A; 2 USB 3.1 (10 Gb/s) ports(Headers)
Video Output
1 DVI - D port, 1 DP (DisplayPort) port, 1 HDMI port,
***Display Port support up to DP1.2, HDMI support up to HDMI1.4***
Serial Port / Header
1 COM Port (1 header)
TPM
1 TPM Header
Others
Support SPDIF-Out(Rear)
Expansion Slots
PCI-E
1 PCI-E 3.0 x16,
1 PCI-E 3.0 x4,
1 PCI-E 3.0 x1

System BIOS
BIOS Type
AMI UEFI
BIOS Features
Plug and Play (PnP)
DMI 2.3
PCI 3.0
ACPI 5.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 3.0
UEFI 2.3.1
RTC (Real Time Clock) Wakeup

Management
Software
SuperDoctor® 5, Watchdog

PC Health Monitoring
Voltage
+12V, +3.3V, +5V, Chassis intrusion header, Monitors CPU voltages, VBAT
FAN
5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication
Temperature
CPU thermal trip support, I2C temperature sensing logic, PECI, Thermal Monitor 2 (TM2) support
LED
N/A
Other Features
4-pin 12v DC power connector, 8-pin 12v DC power connector, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, Voltage and Frequency Overclocking, WOL
